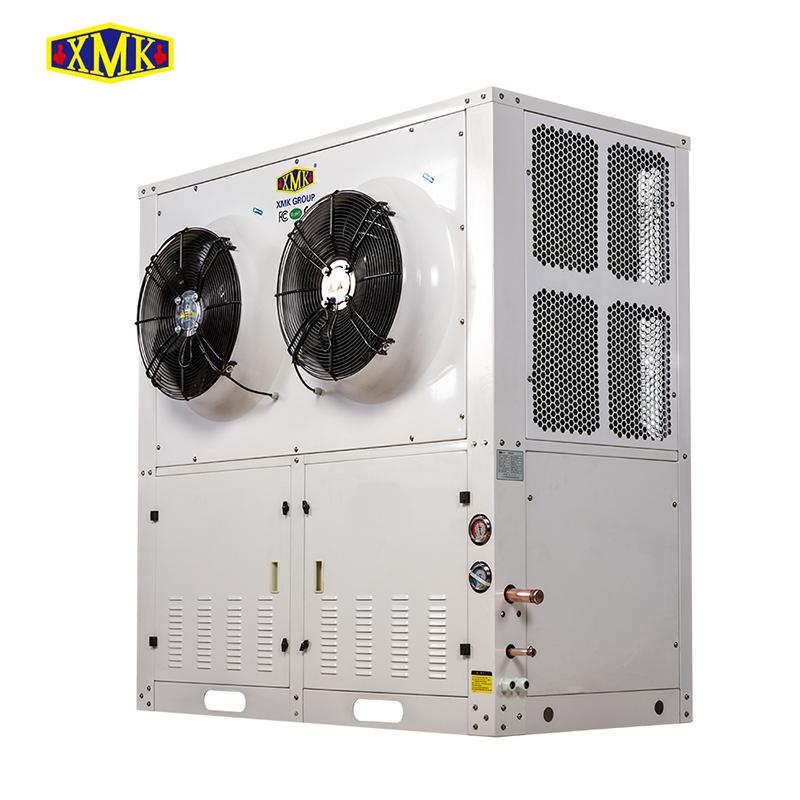

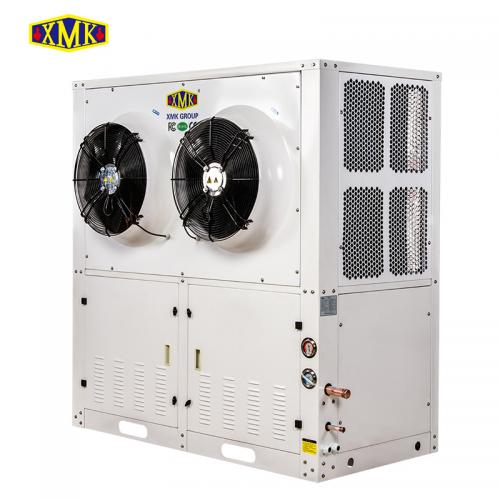

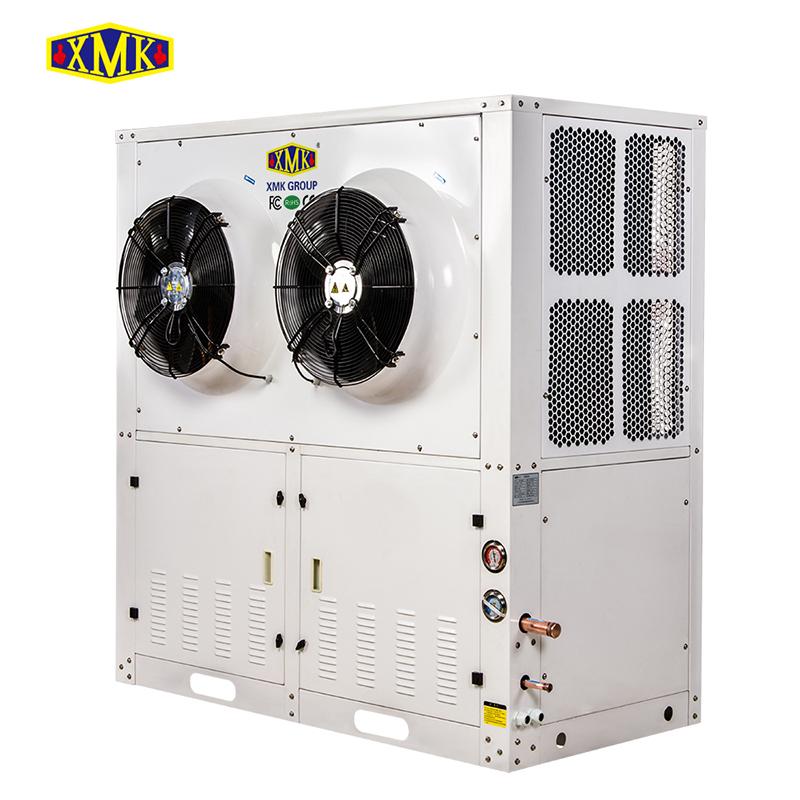

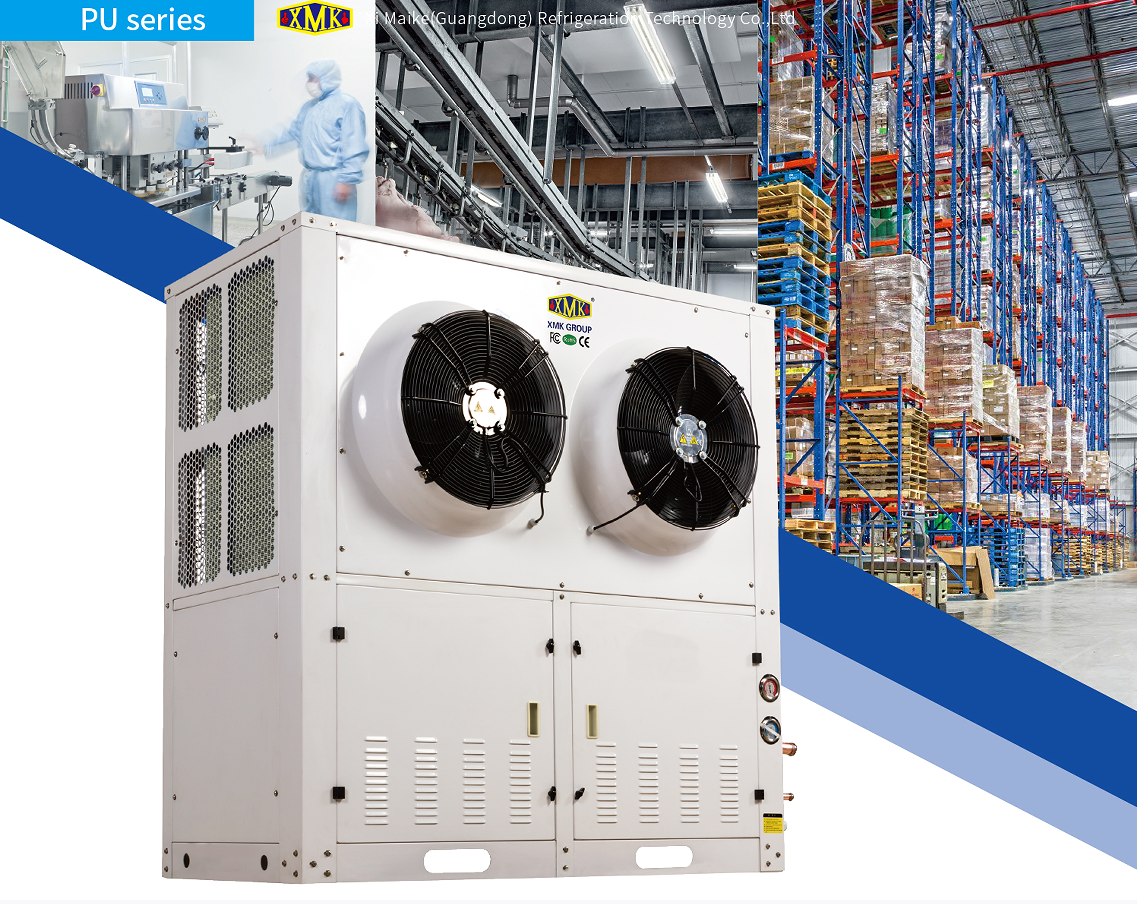

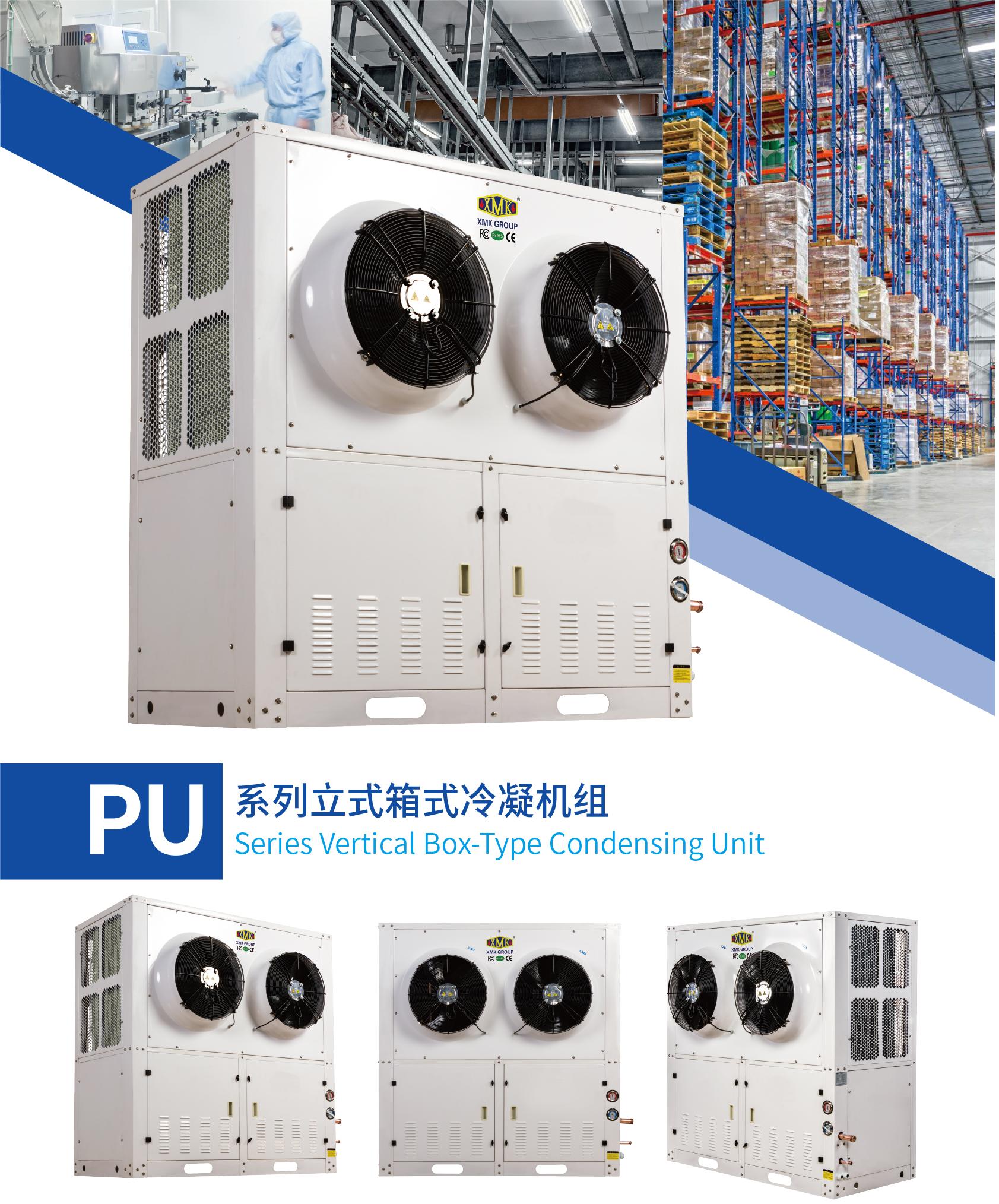

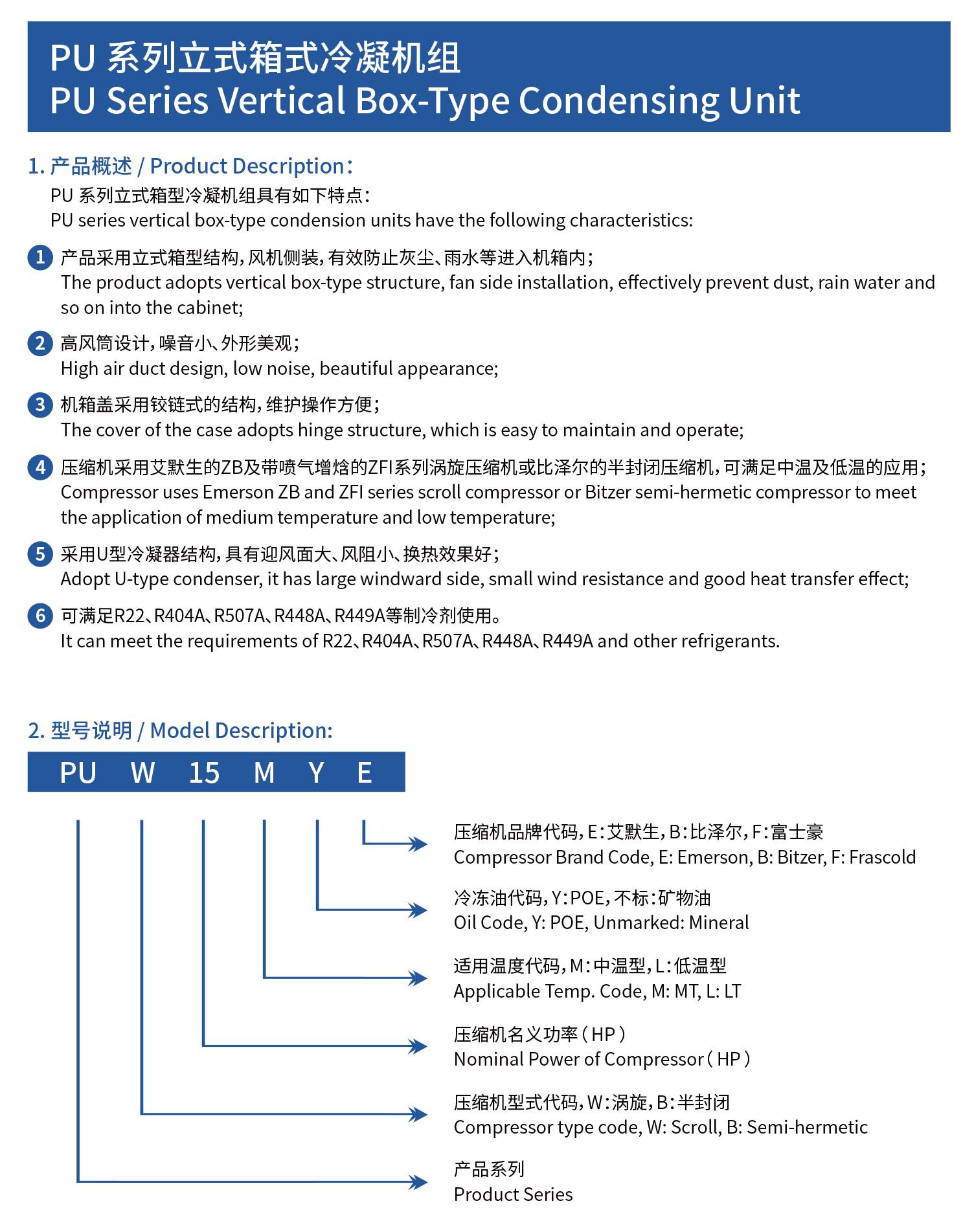

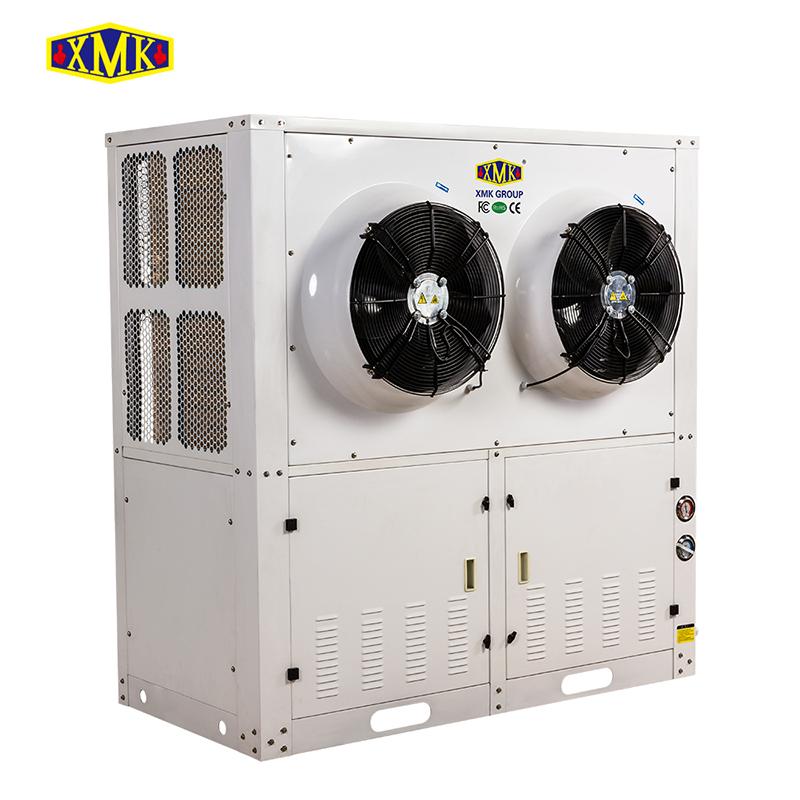

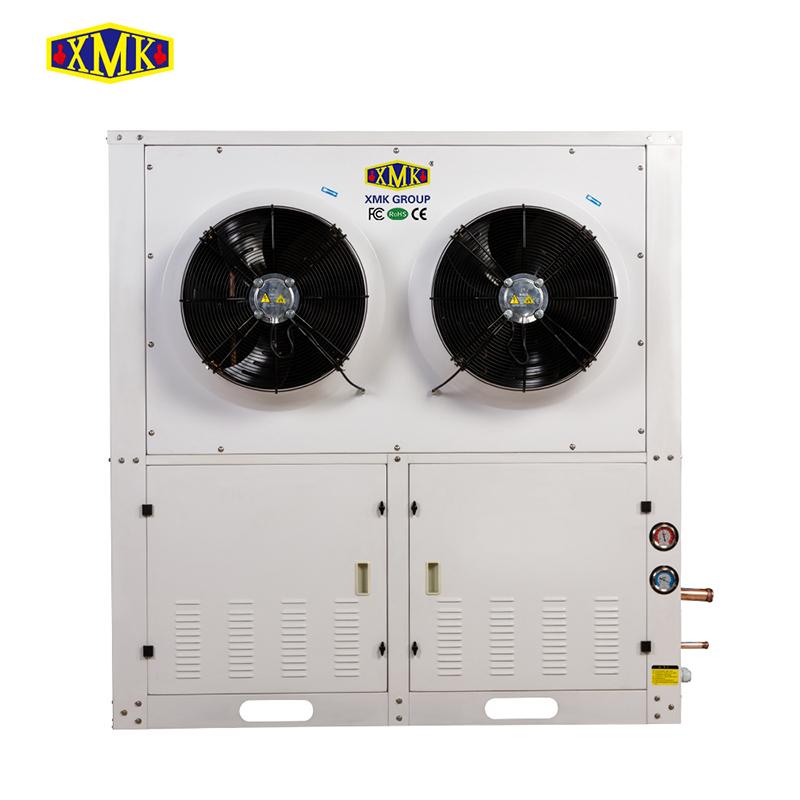

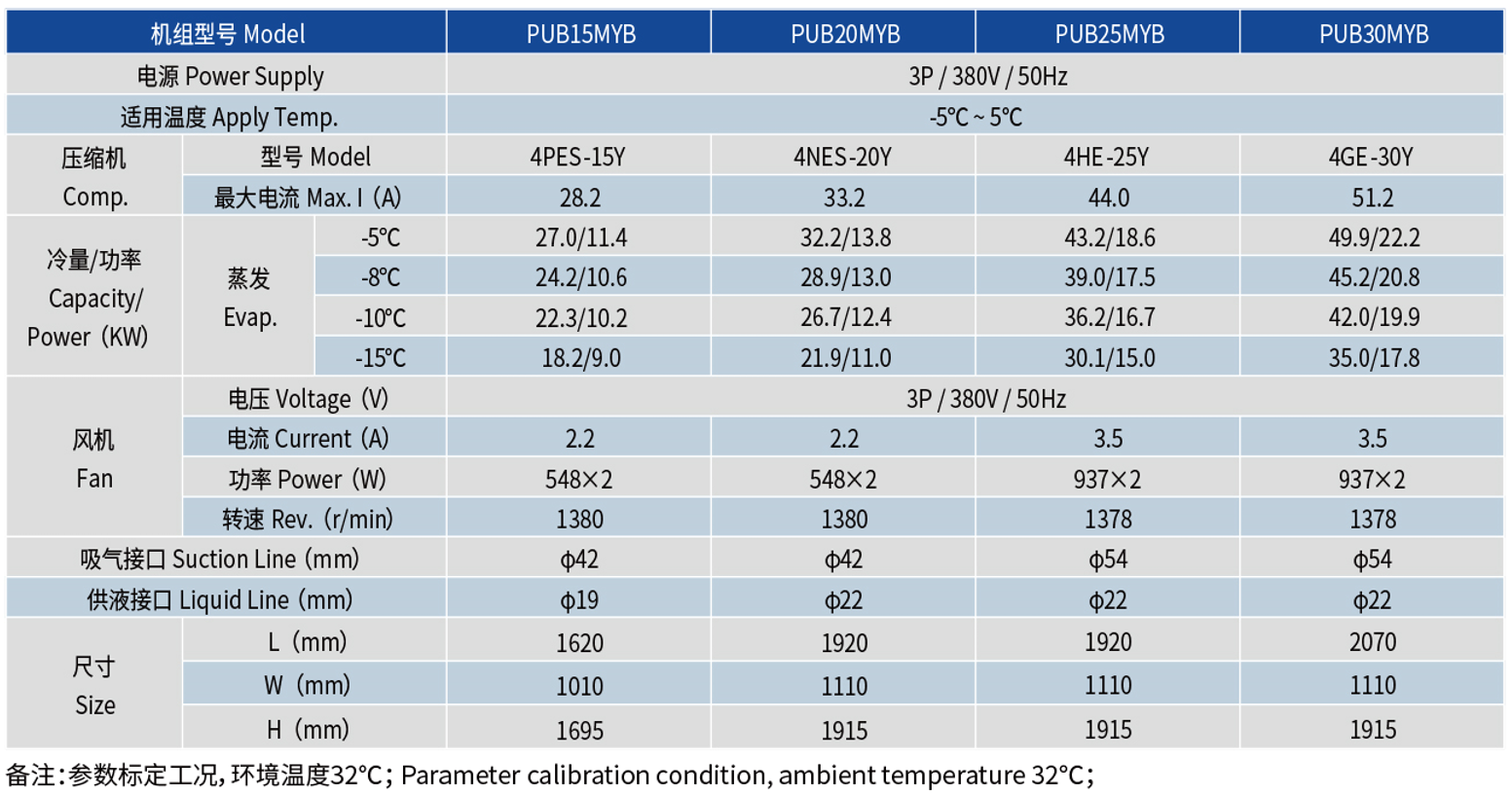

PU Series Vertical Box-Type Condensing Unit

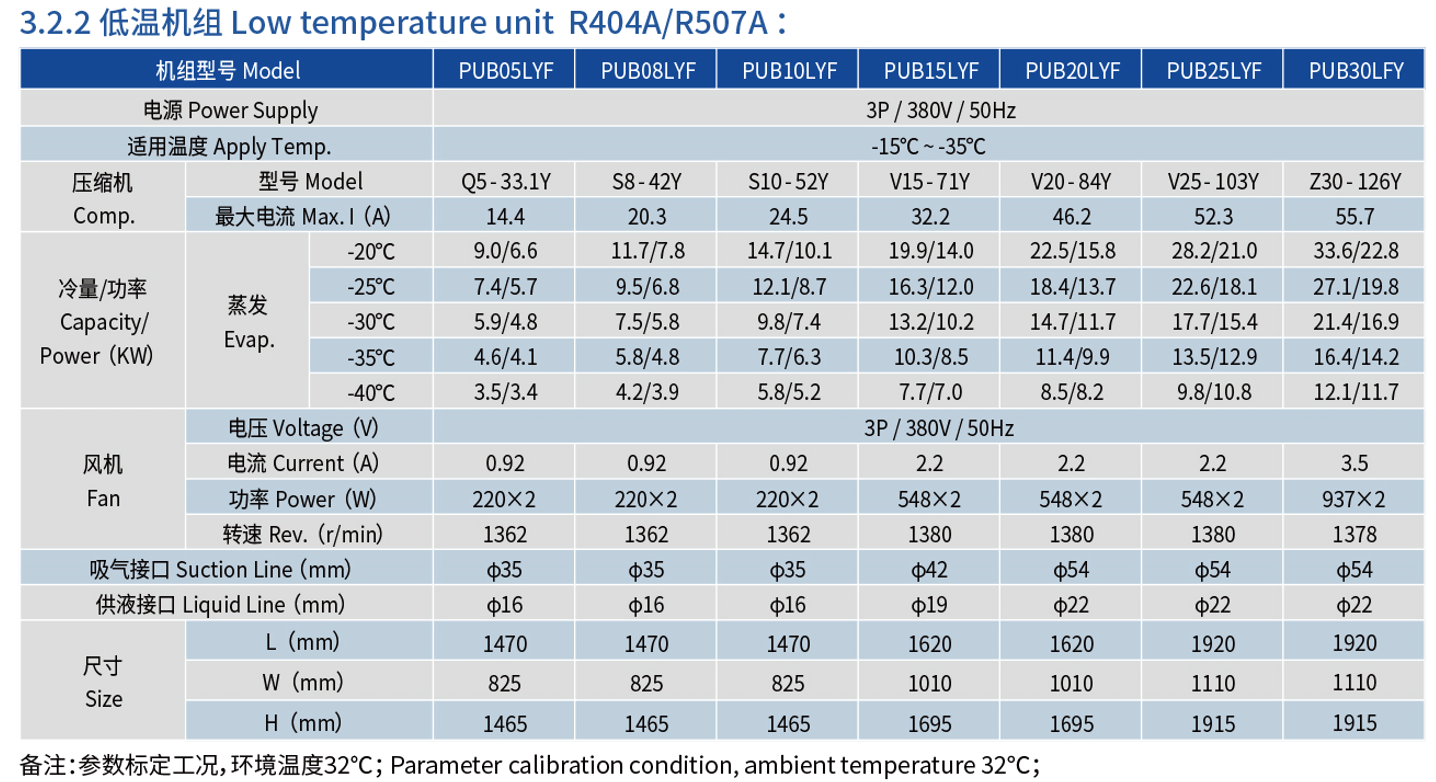

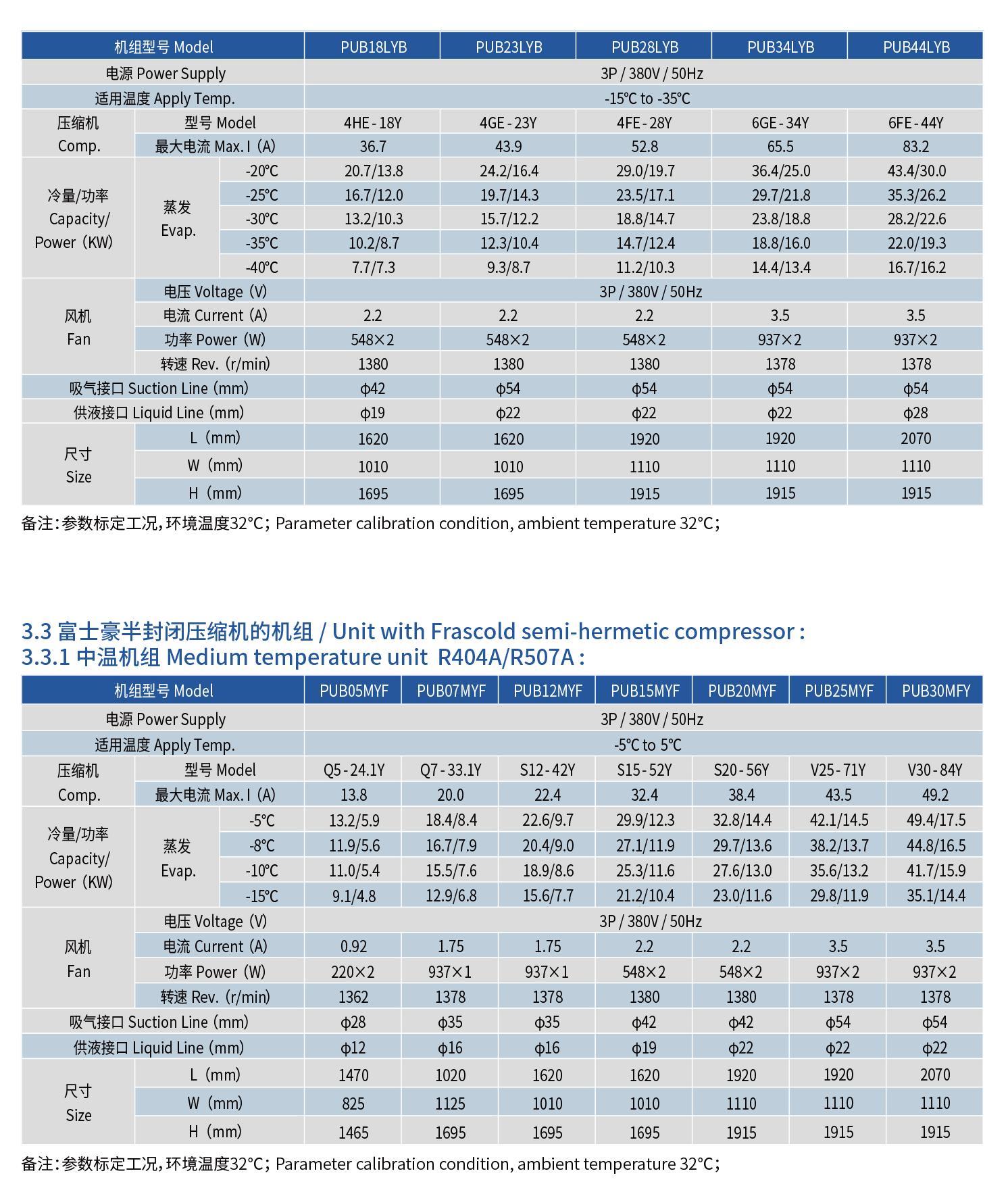

HCU series open-type air-cool condensing units  Product description:   1.HCU series open-type air-cool condensing units have the following characteristics.Adopted semi-hermetic piston compressors with BITZER or FRASCOLD, It has good quality and high reliability. 2.The air-cooled condenser, compressor and various accessories are installed on an integral frame, which is compact in structure and convenient in operation and maintenance. 3.Adopted high duct condenser with external rotor fan , which has low noise and high efficiency. 4.The product series is complete, It has high,medium, low temperature and quick frozen working conditions design. It can meet the needs of refrigeration equipment at various temperatures. 5.It can meet the requirements of R22, R404A,R507A, R448A, R449A and other refrigerants. Low Temperature  Condensing Unit Catalogue: Power Supply  380V 50Hz 3phase Apply Temp. -15 to -35degree Compressor Model Q5-33.1Y Compressor Max.I(A) 14.4 Fan Voltage (V) 380V 50Hz 3phase Fan Current (A) 0.92 Fan Power (W) 220X2 Suction Line (mm) 35 Liquid Line （mm） 16 Size length (mm) 1470 Size Width (mm) 800 Size Height (mm) 1465

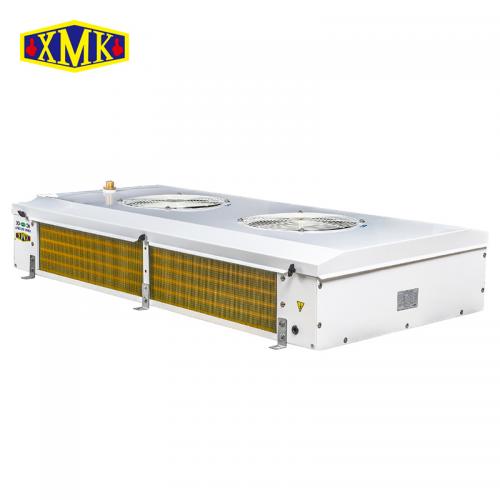

two fan 500mm Evaporator with Fin space 4.2MM  for Potatoes cold rooms

Refrigeration parts Cold room air cooled evaporator range with 9.0mm fin spacing and best use:freezing and conservation at negative temperature.

Evaporator Fin space 4.2MM 2.63 to 2.1KW for small size chiller room -5~5℃.

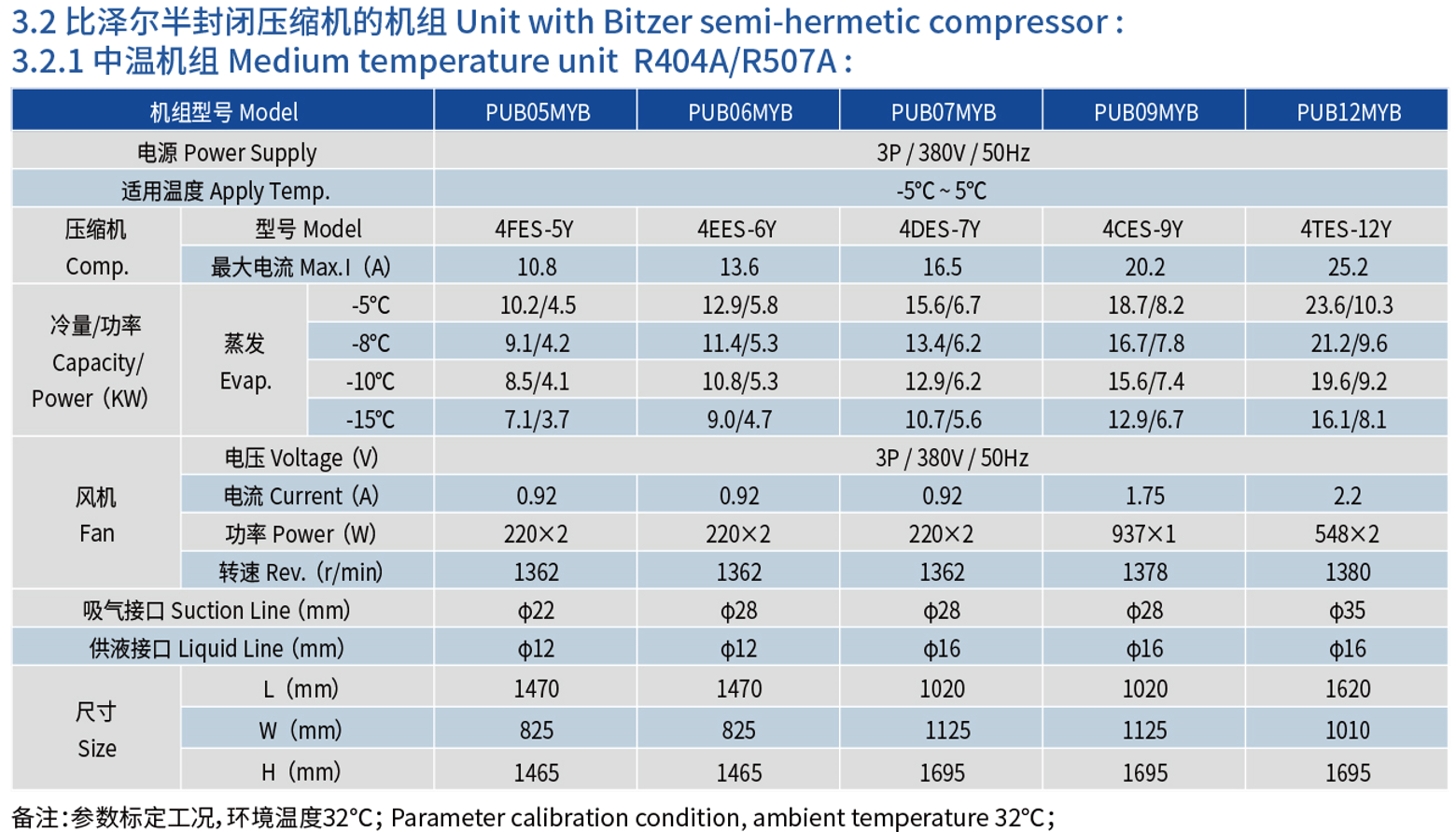

4FES-5Y Bitzer Compressor For Condensing UnitProduct description:BUB series horizontal box-type condensing units have the following characteristics.1.Products adopt horizontal box-type structure,high wind circle design, Excellent ventilationeffect and appearance.2.The cover of the case adopts hinge structure,which is easy to maintain and operate.3.Adopted semi-hermetic piston compressorswith BITZER or FRASCOLD to meet the applica-tion of medium temperature and low tempera-ture respectively.4.Adopted U-type condenser, it has large wind-ward side, small wind resistance and goodheat transfer effect.5.It can meet the requirements of R22, R404A,R507A, R448A, R449A and other refrigerants. Bitzer  Condensing Unit Data: Power Supply  380V 50Hz 3phase Apply Temp. -10 to 5 degree Compressor Model 4FES-5Y Compressor Max.I(A) 10.8 Fan Voltage (V) 380V 50Hz 3phase Fan Current (A) 1.1 Rev.(r/min)1380 Suction Line (mm) 22 Liquid Line （mm） 12.7 Size length (mm) 1320 Size Width (mm) 655 Size Height (mm) 1065

Air cooled condenser is specially designed for Freon refrigeration equipment and cooled by air. XMK FNF series is suitable for R134a, R22, R404a, R407 and other refrigerants, widely used in freezing, refrigeration, air conditioning, heat pumps and industrial refrigeration. Voltage 380V

HC series air cooled condensers are mainly equipped with open-type condensing units with scroll compressor, hemertic & semi-hemertic compressor. This air cooled condensers and compressors can be installed together or separately from compressors. Design of High barrel with Side-mounted structure, with high heat transfer capacity.

This series of products is mainly developed for commercial and supermarket applications；
