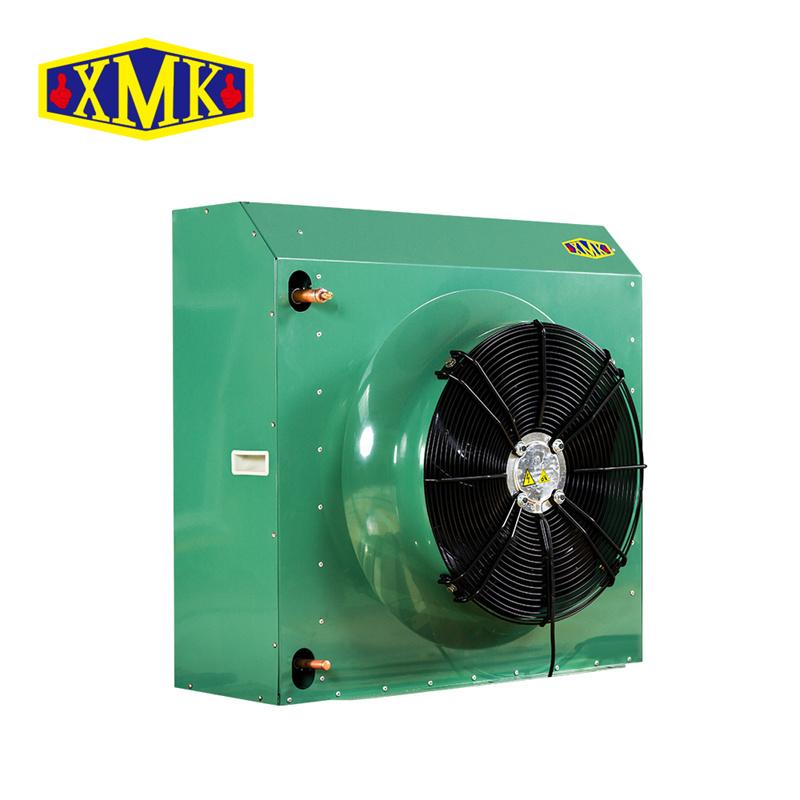

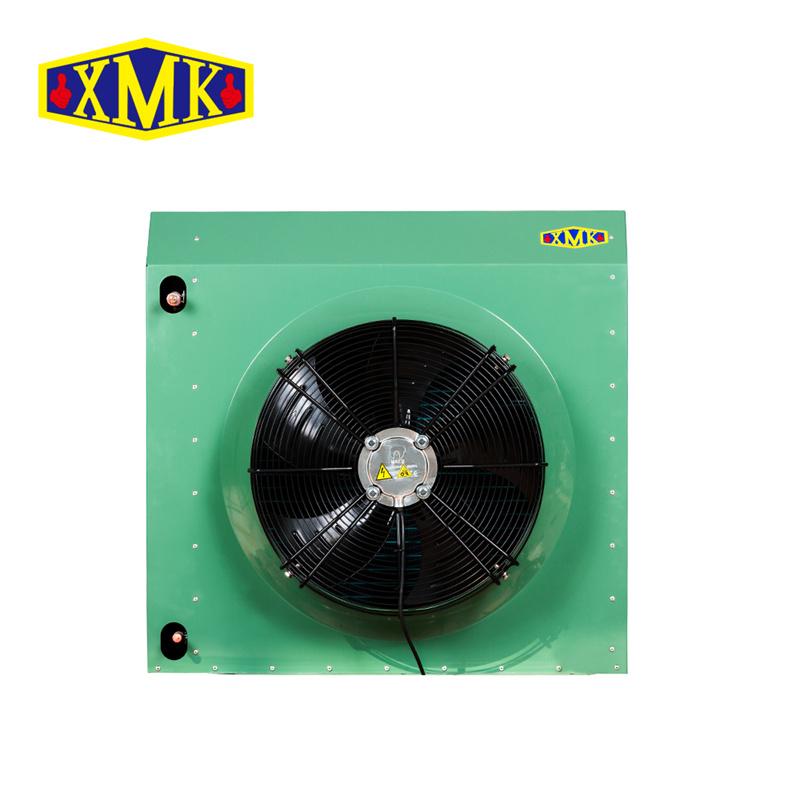

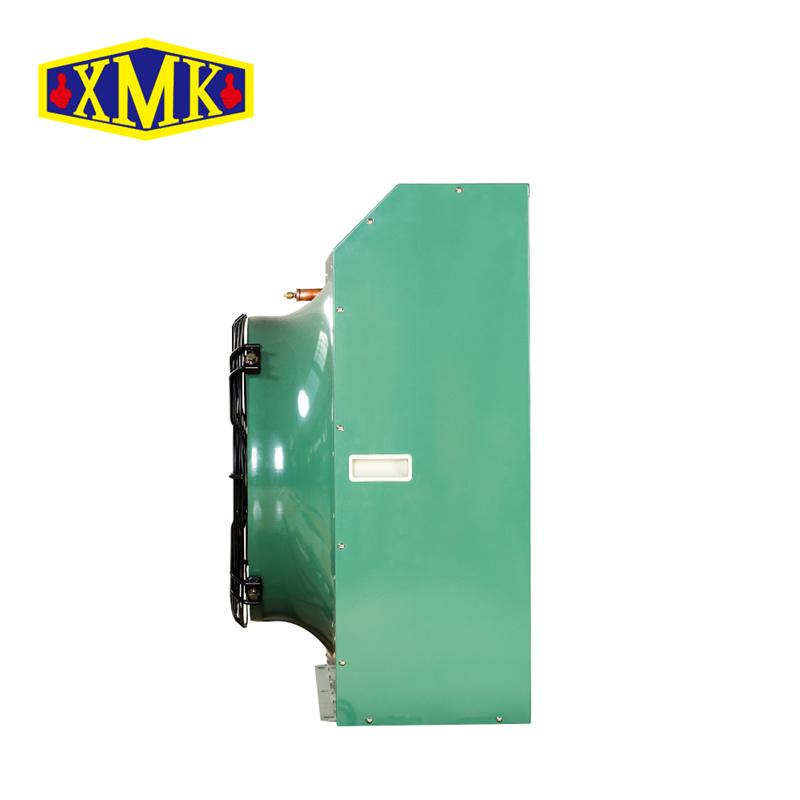

Copper tubing Φ8.9 HC air cooled condenser 3.5HP

HC series air cooled conedensers are mainly equipped with open-type condesing units with scroll compressor , hemertic & semi-hemertic compressor .This air cooled condensers and compressors can be installed together or sepa rately from compressors. Design of high barrel with Side-mounted Structure.

  • Item NO.:

    HC26/140NT
  • Payment:

    T/T
  • Product Origin:

    China
  • Color:

    green
  • Shipping Port:

    Guangzhou

Product Feature

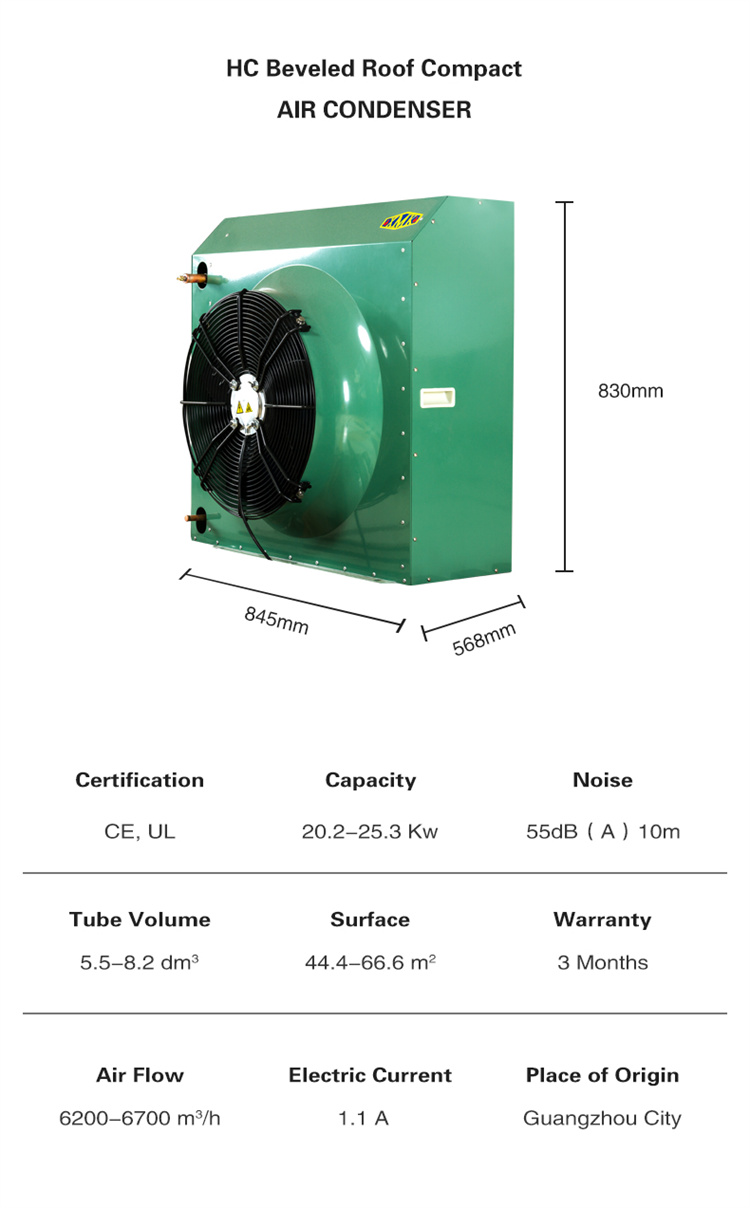

  1. Beveled Roof design & High Tunnel design can separately provide convenience of installation & energy-saving for the terminal users.

  2. Galvanized steel casing with corrosion-resistent powder coating finish.

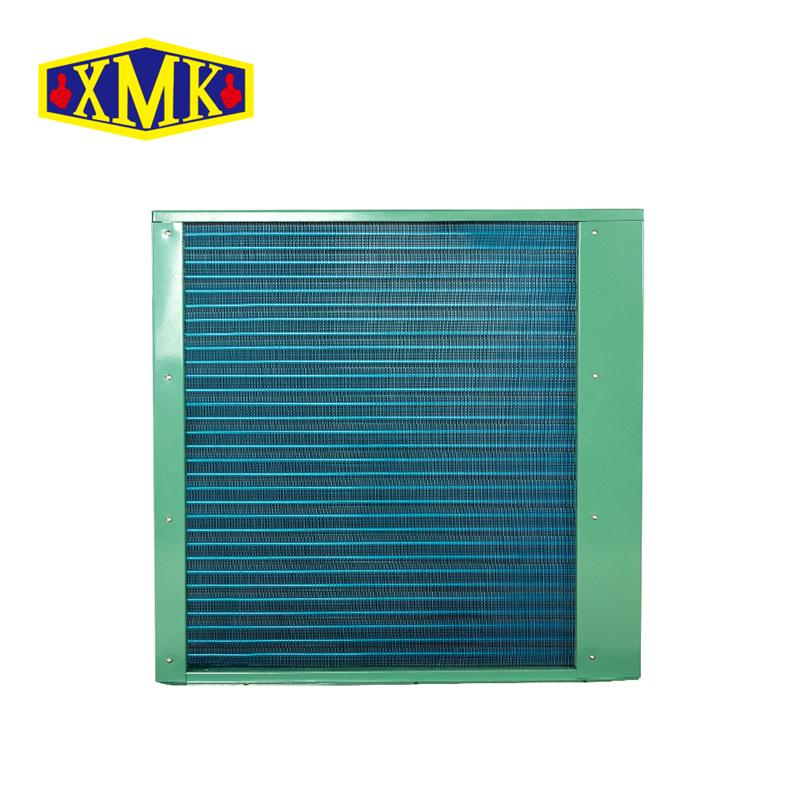

  • Copper tube : Copper tubing Φ8.9 and high quality corrugated aluminium fins with a distance of 2.1mm

  • Fans specifications adopt Φ400mm,Φ500mm,Φ630mm

  • Testing pressure 32Bar

  • Adopt high quality steel plate with powder coating RAL9003 or RAL6001

  • It can meet the requirements of R22 , R134a, R404A ,R507a, R407A,R407C,R448A,R449A and other  refrigerants.

  • Retain 1.5bar pressure before leaving factory.

Specification for model fan 1x 400mm


Model
CapacityKW)T=15kSurface(m2)Fan motordB(A)10m
Airflow(m3/h)Power(w)Current(A)
HC18/140NT8.817.638002400.5250
HC26/140NT
11.826.335002400.5250
HC35/140NT13.335.131002400.5250

refrigeration condenser.jpg

HC air cooled condenser (3).jpg
