17.5KW Capacity Specification Condenser Air Cooled

  • Item NO.:

    HC35/240NT
  • Order(MOQ):

    1
  • Payment:

    EX-WORK
  • Market Price:

    389
  • Product Origin:

    Germary
  • Color:

    Green
  • Shipping Port:

    Guangzhou
  • Lead Time:

    15 to 20 days

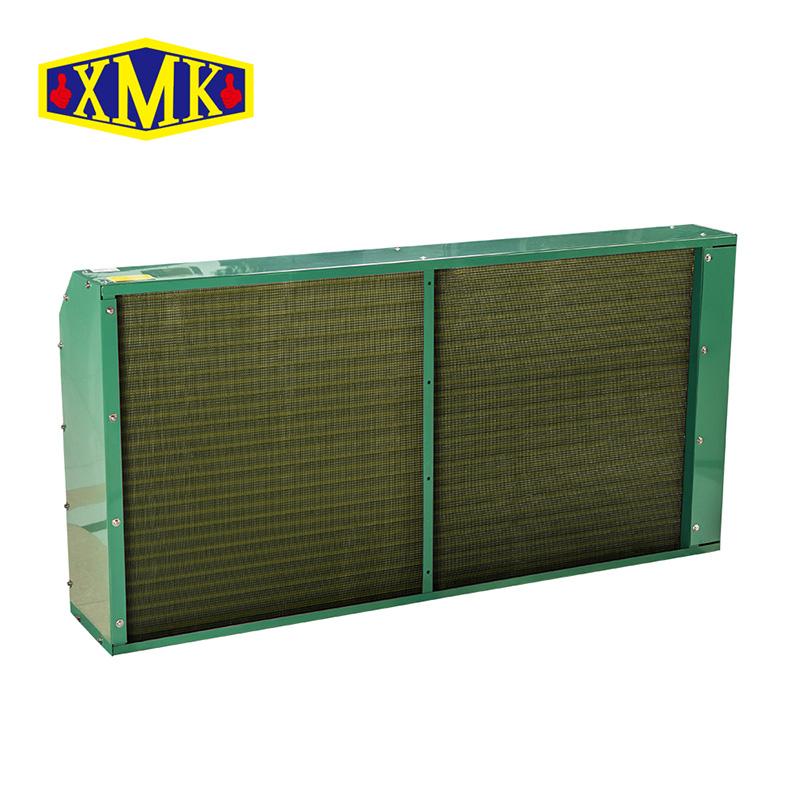

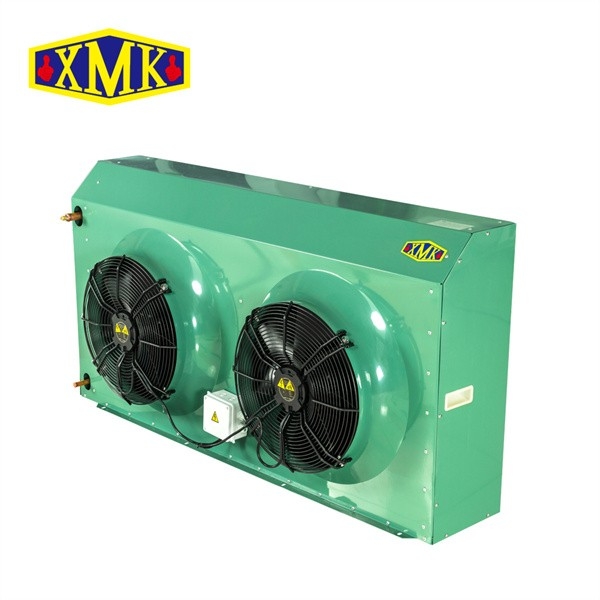

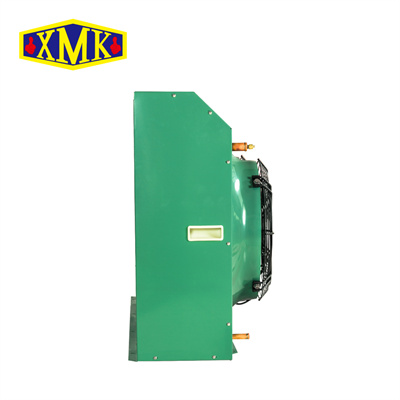

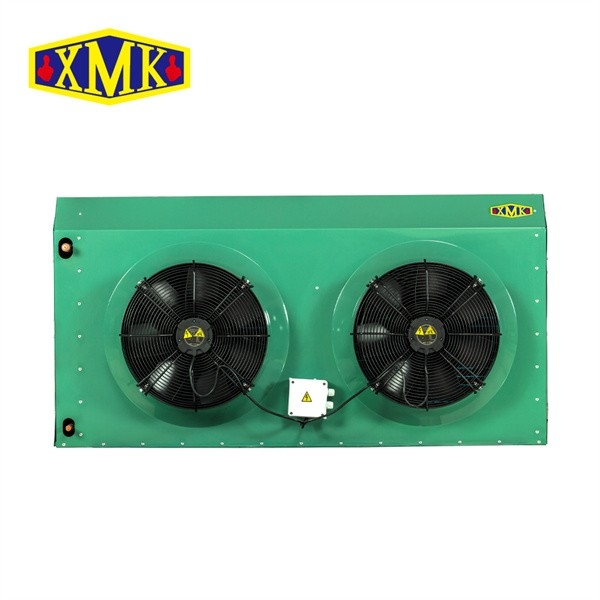

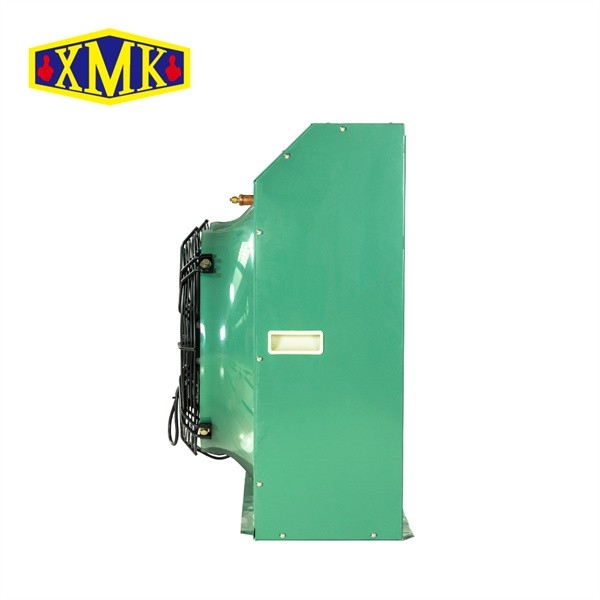

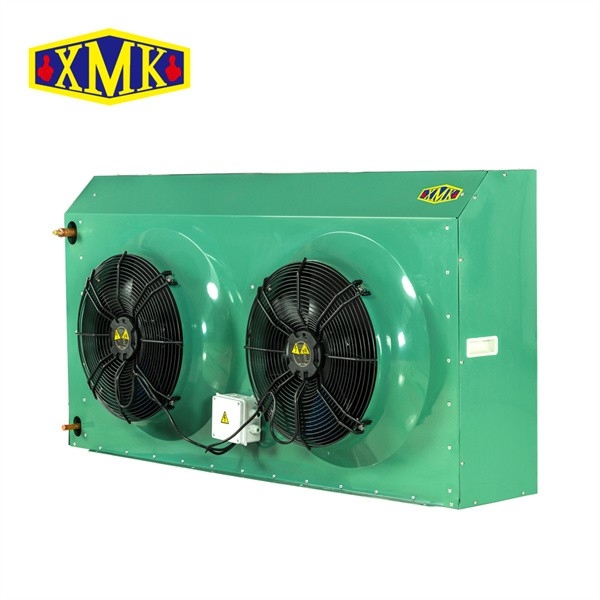

17.5KW Refrigeration Unit Condenser Air Cooled

Product description:



HC series air cooled condensers are mainly equipped with open-type condensing units with scrollcompressor, hemertic & semi-hemertic compressor. This air cooled condensers and compressors canbe installed together or sepa rately from compressors .Design of High barrel with Side-mounted Structure.


1.Condensers and compressors can be installed together or separately from compressors. Design of Highbarrel with Side-mounted Structure.


2.Copper tube and corrugated aluminium fins with a distance of2.1 mm are used.


3.Fan specifications adopt φ400mm, φ500mm and φ630mm.


4.Testing pressure 32bar.


5.Adopt high-quality steel plate with powder coating RAL9003 or RAL6001.


6.It can meet the requirements of R22, R134a, R404A, R507A, R407A, R407C,R448A,R449A and other refrig-erants.


7.Retain 1.5bar pressure before leaving factory.

HC Series Air Cooled Condenser Data Sheet:


Model
HC35/240NT
Capacity (KW)17.5
Surface (㎡)
35.1
Volume (dm)4.3
Fan Motor Air Flow
7600
Fan Motor Power
480
Fan Motor Current
1.04
dB (A)53
Connect Pipe Inlet22
Connect Pipe Outlet16
Weight (kg)
48



Condenser Cold RoomCondenser EvaporatorCondenser FinAir Cooled Condenser
