MTZ72 R404 Compressor Danfoss Refrigeration Unit

  • Item NO.:

    MTZ72
  • Order(MOQ):

    1
  • Payment:

    EX-WORK
  • Market Price:

    1470
  • Price Range:

    1470 - 1555
  • Product Origin:

    Germary
  • Color:

    Green
  • Shipping Port:

    Guangzhou
  • Lead Time:

    15 to 20 days

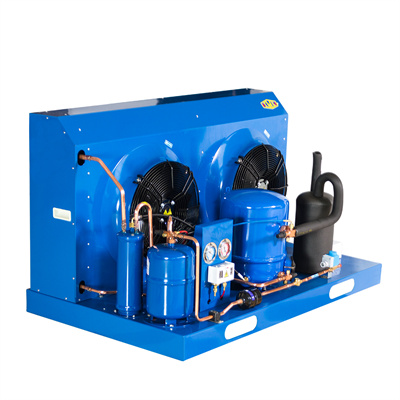

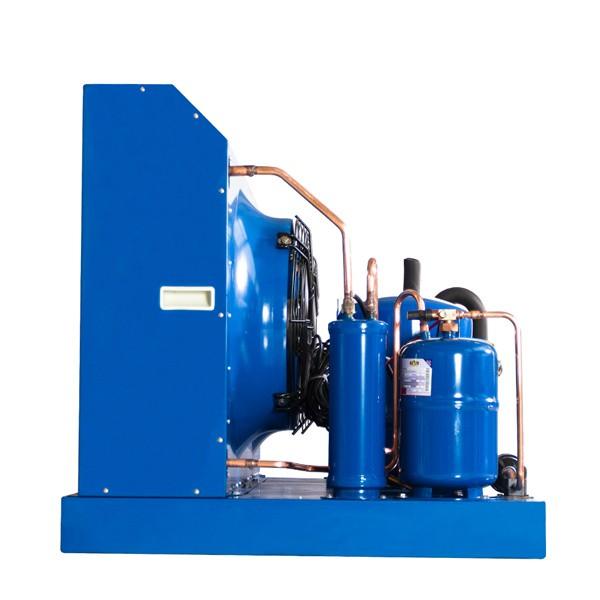

MTZ72 Danfoss Open Compressor Condensing Unit

Product description:



1.HCU series open-type air-cool condensing units have the following characteristics.Adopted semi-hermetic piston compressors with DANFOSS or FRASCOLD, It has good quality and high reliability.


2.The air-cooled condenser, compressor and various accessories are installed on an integral frame, which is compact in structure and convenient in operation and maintenance.

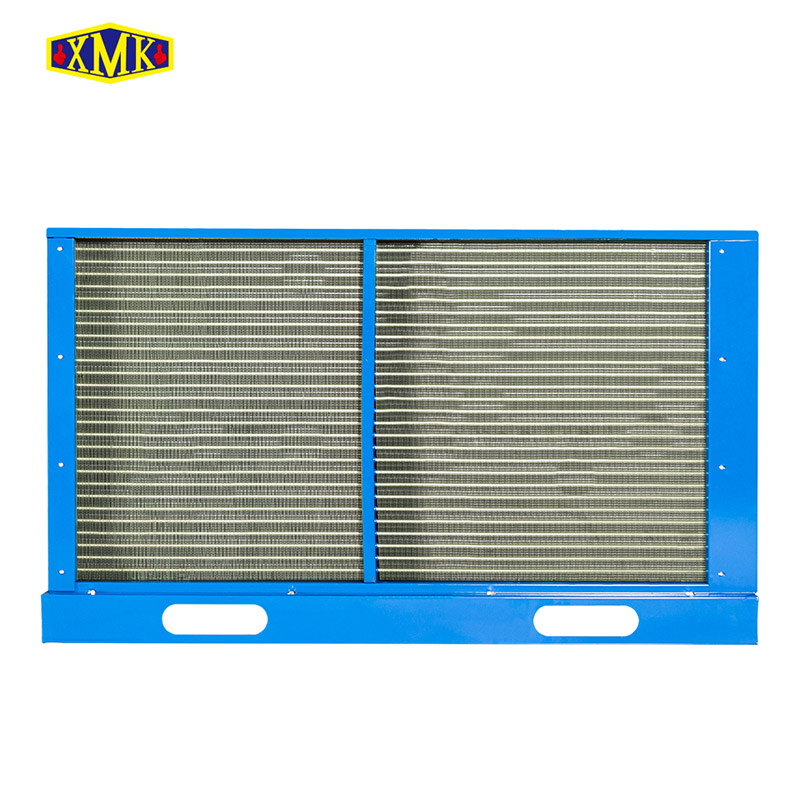

3.Adopted high duct condenser with external rotor fan , which has low noise and high efficiency.


4.The product series is complete, It has high,medium, low temperature and quick frozen working conditions design. It can meet the needs of refrigeration equipment at various temperatures.


5.It can meet the requirements of R22, R404A,R507A, R448A, R449A and other refrigerants.

Danfoss MTZ72 Condensing Unit Catalogue:

Power Supply  380V 50Hz 3phase
Apply Temp. 5 to 15 degree
Compressor Model MTZ72
Compressor Max.I(A) 10
Fan Voltage (V) 380V 50Hz 3phase
Fan Current (A) 1.04
Fan Power (W) 240X2
Suction Line (mm) 22
Liquid Line (mm) 12
Size length (mm) 1435
Size Width (mm) 850
Size Height (mm) 830







Leave A Message
If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.
