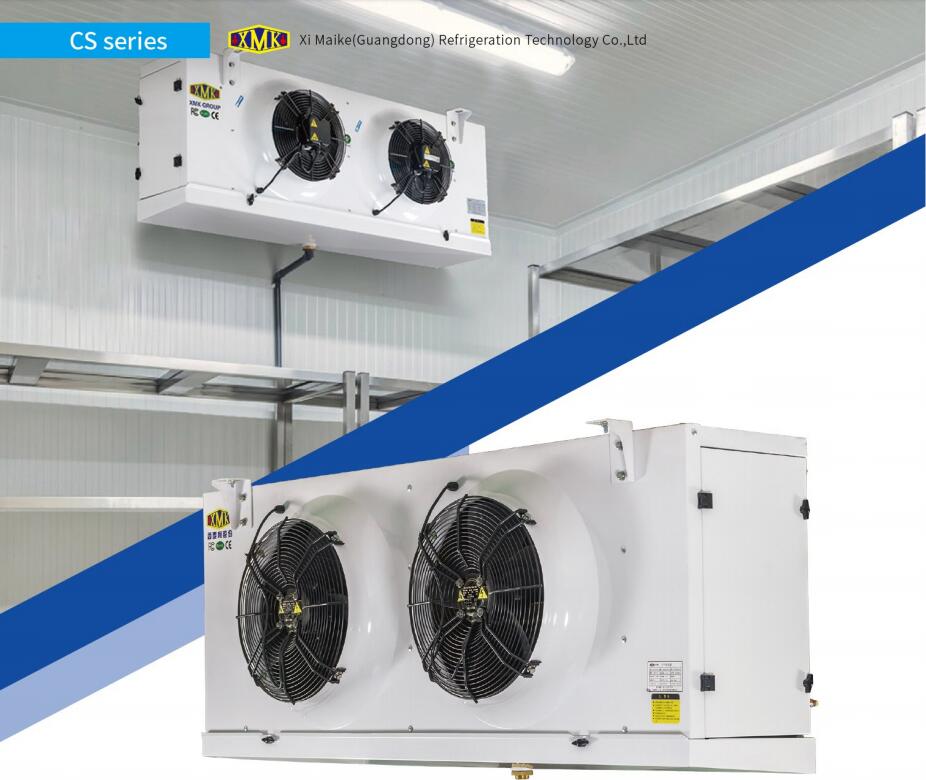

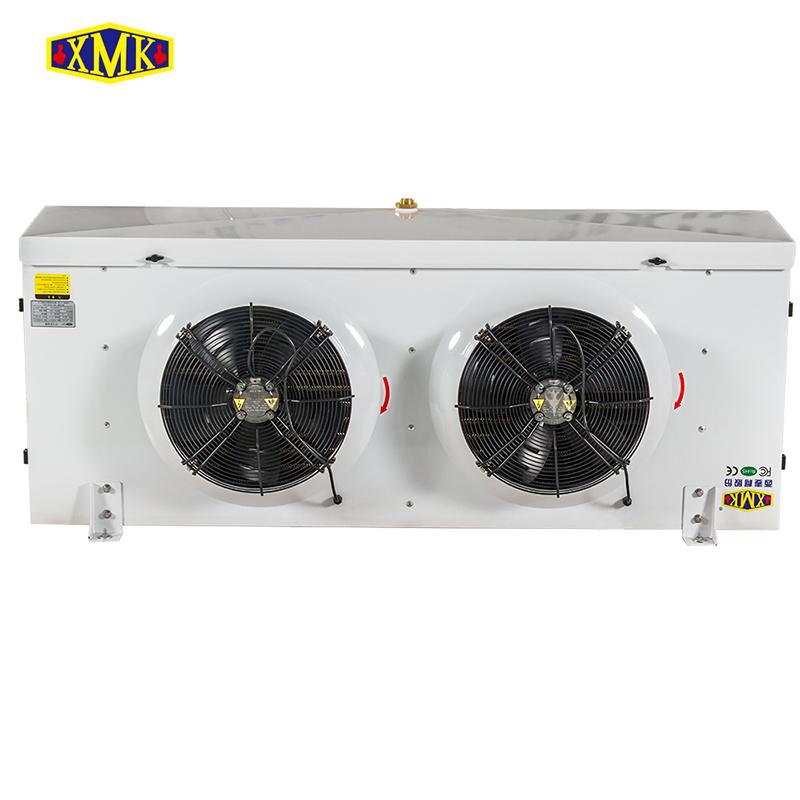

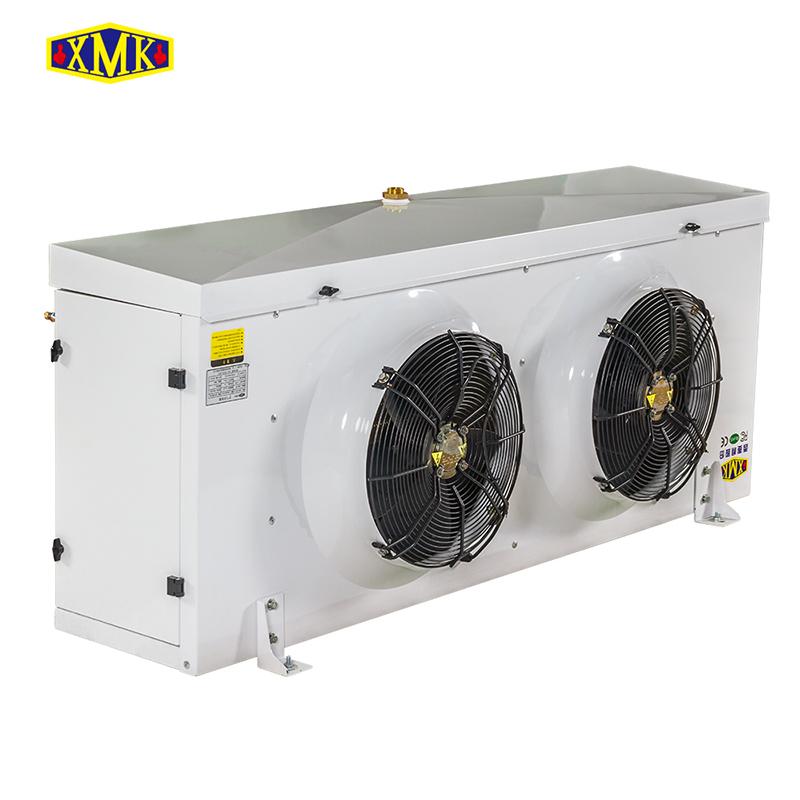

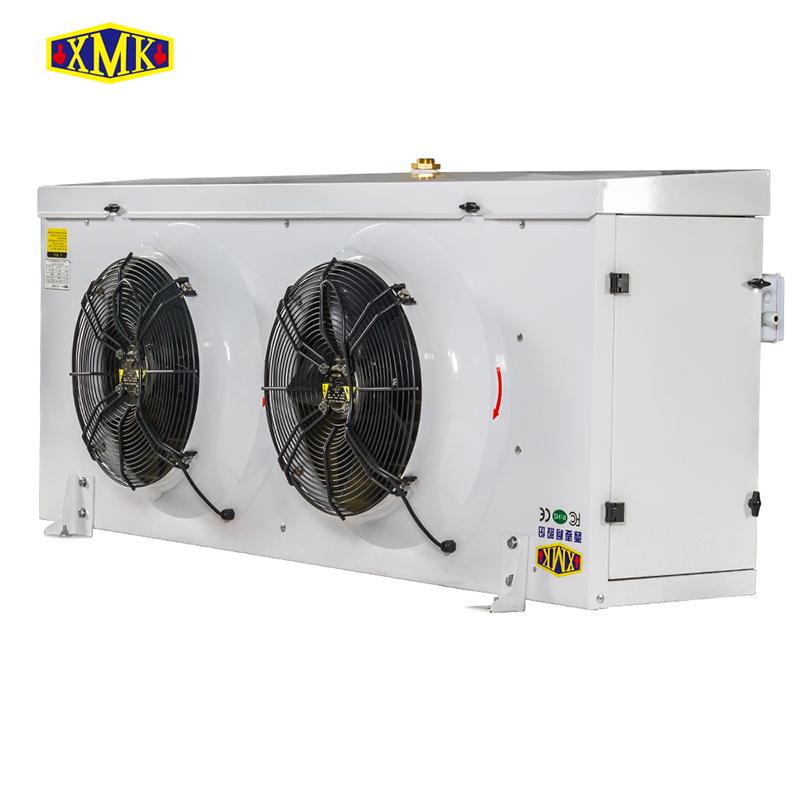

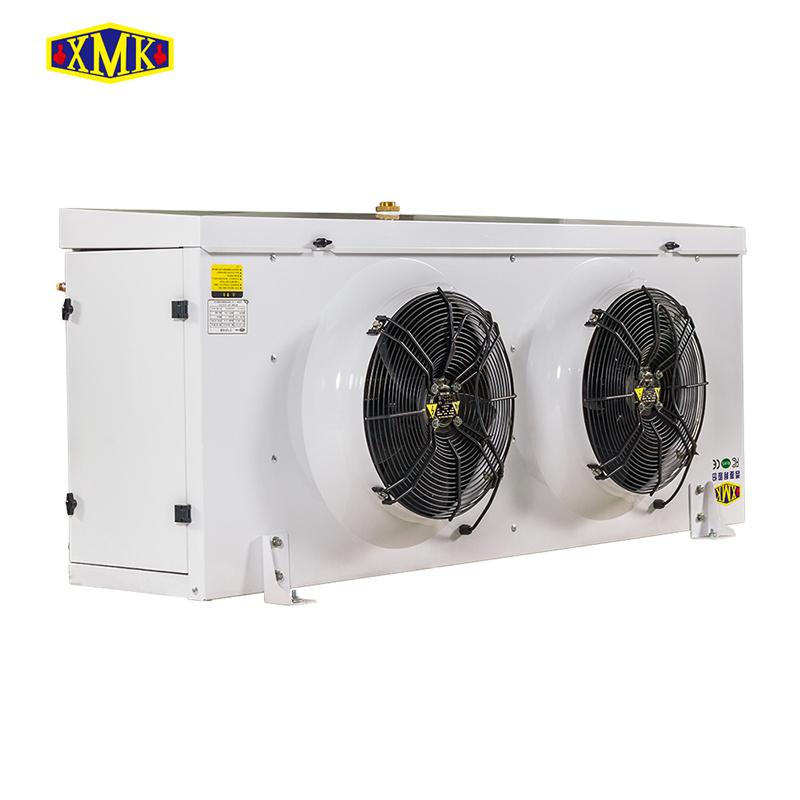

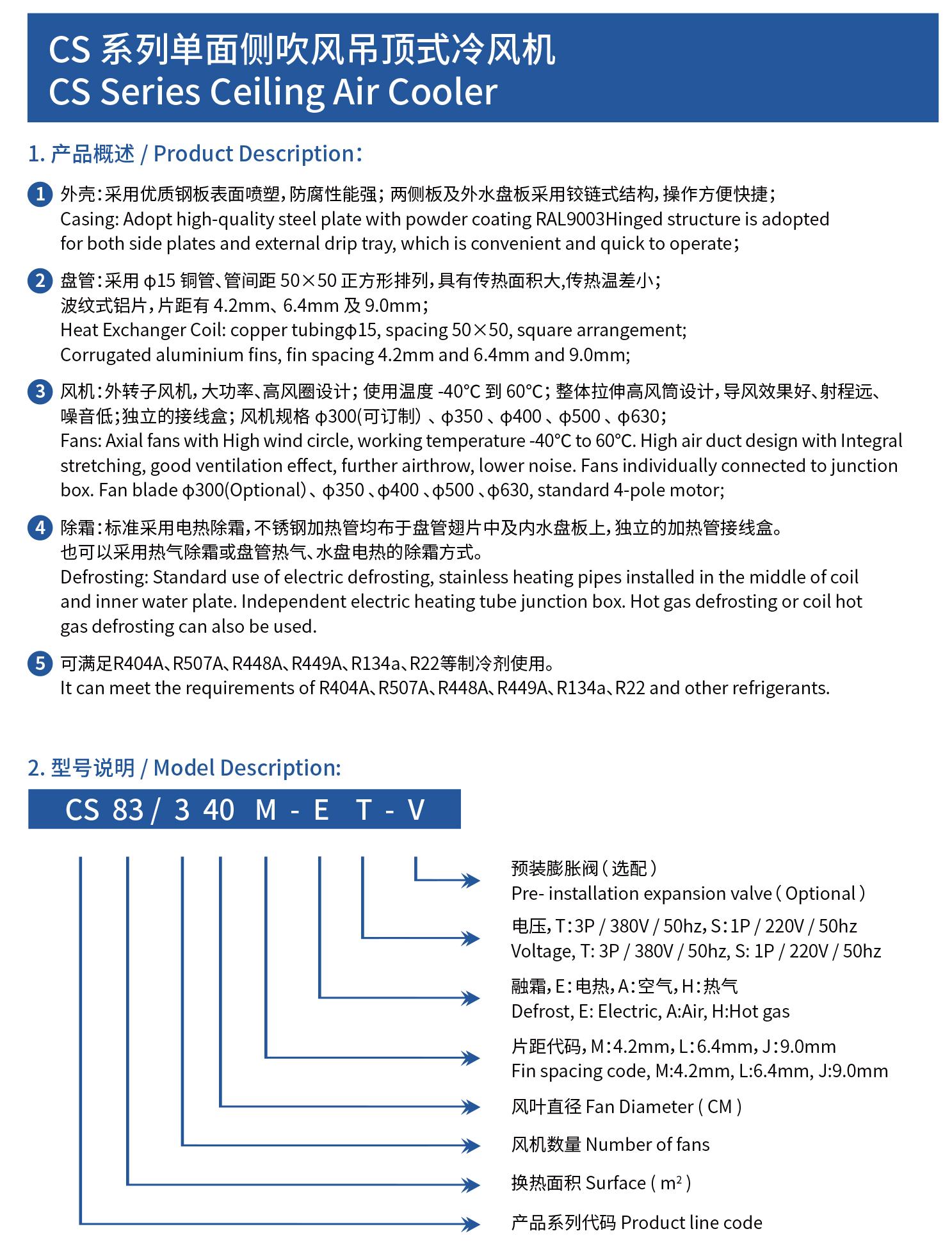

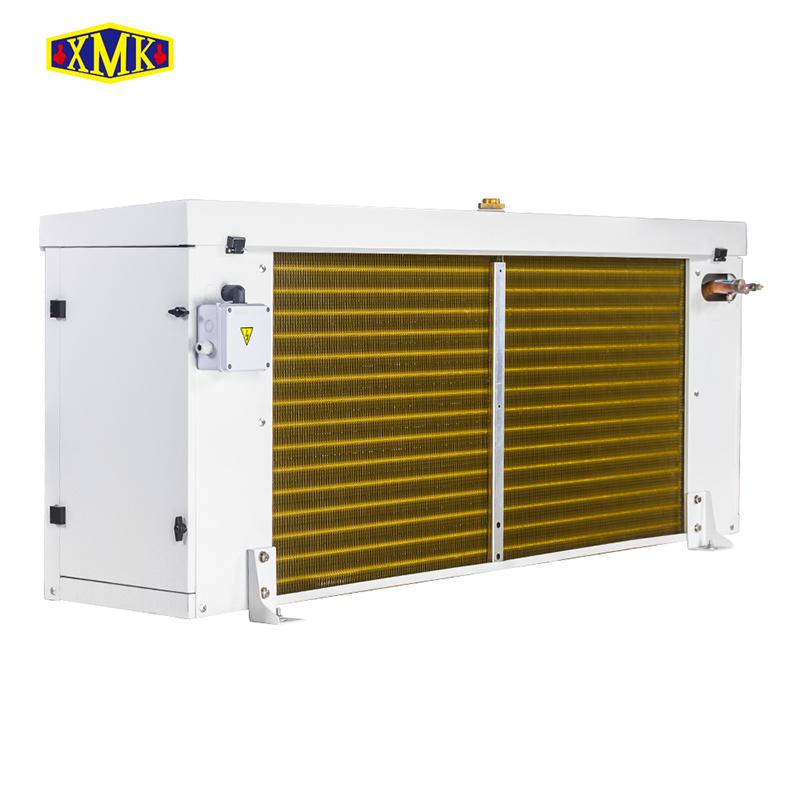

CS series ceiling air cooler is mainly used in medium and largecold room with personnel operation.
Product Origin:
CHINAColor:
WhiteShipping Port:
GUANGZHOUProduct Description

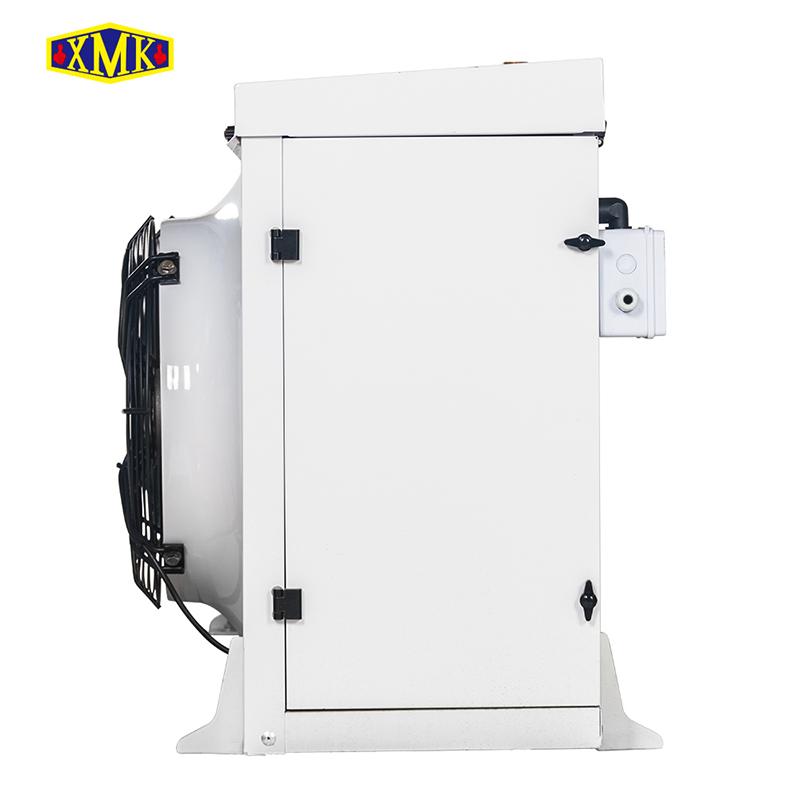

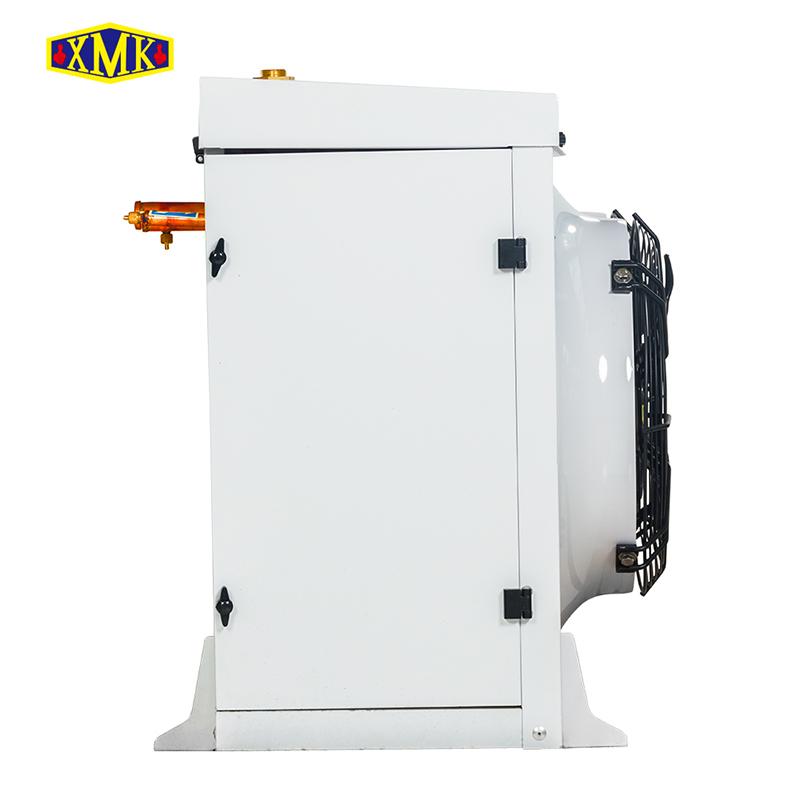

Casing:
Adopt high-quality steel plate with powder coating RAL9003
Hinged structure is adopted for both side plates and external drip tray, which is convenient and quick to operate

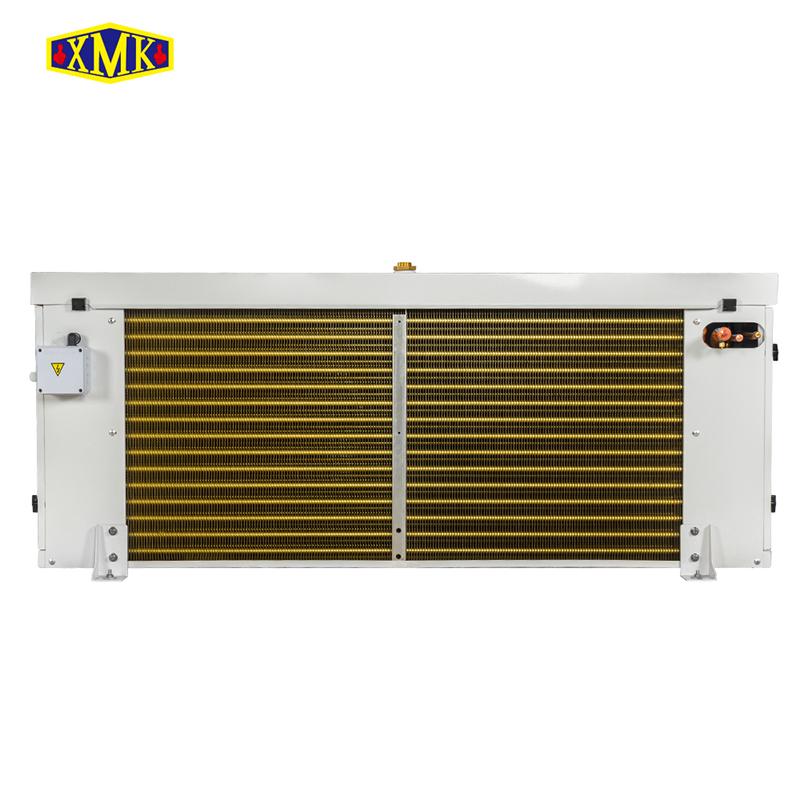

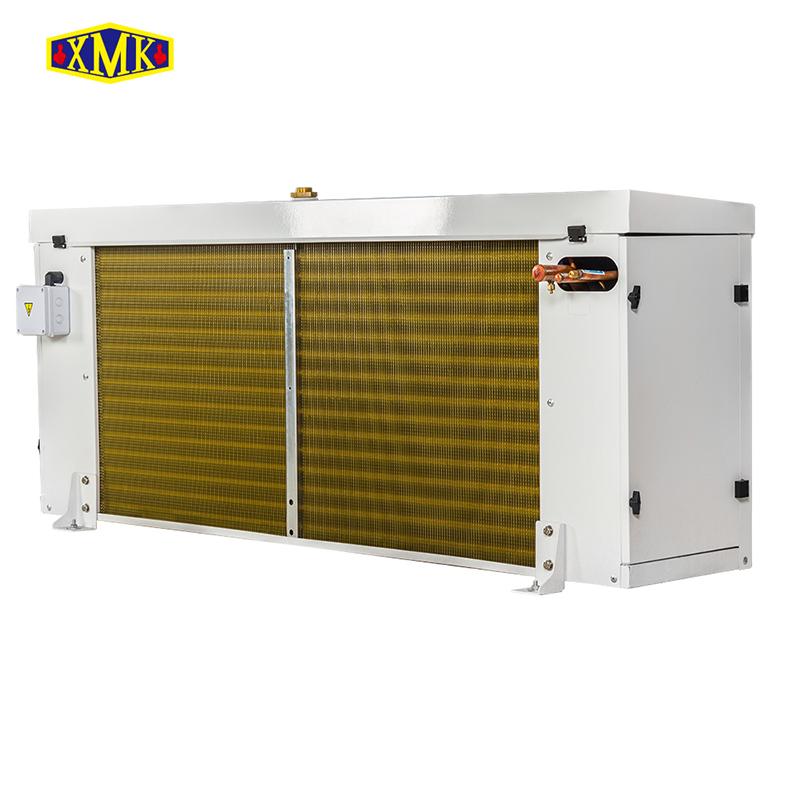

Heat Exchanger Coil:

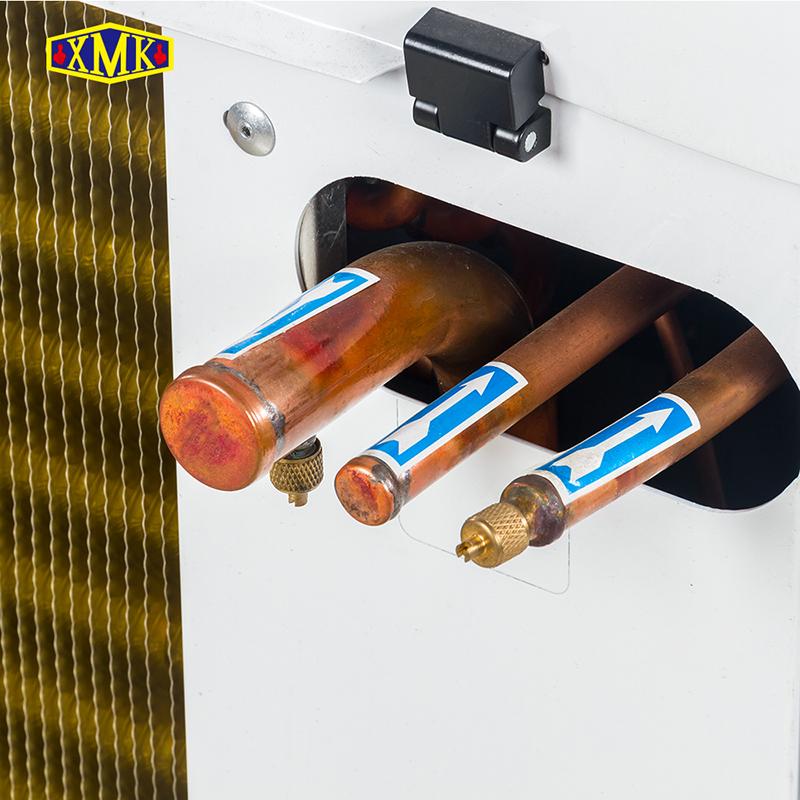

copper tubingφ15,spacing 50×50,square arrangement
Corrugated aluminium fins,fin spacing 4.2mm and 6.4mm and 9.0mm

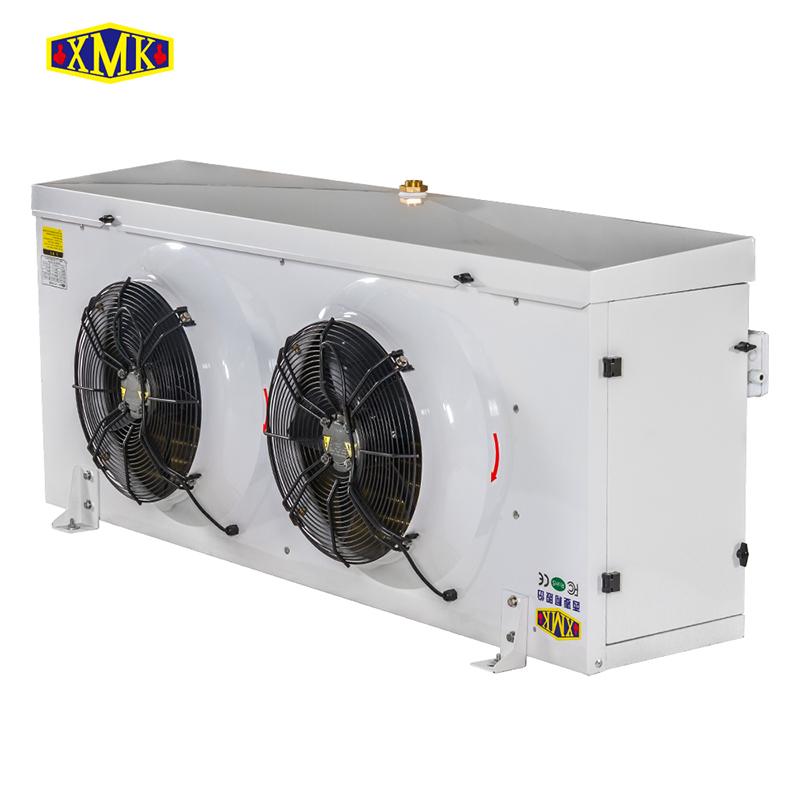

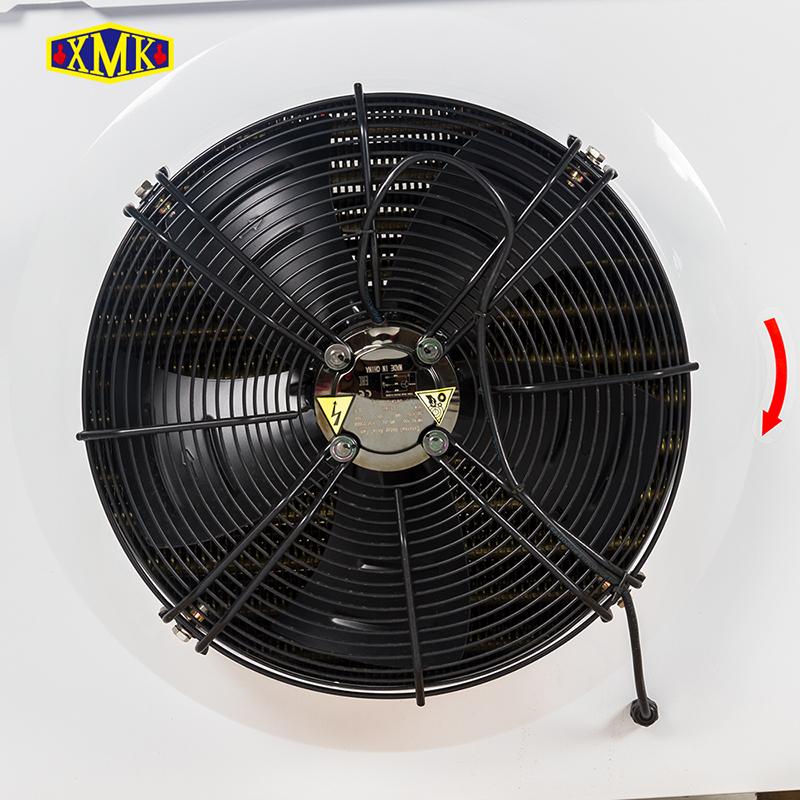

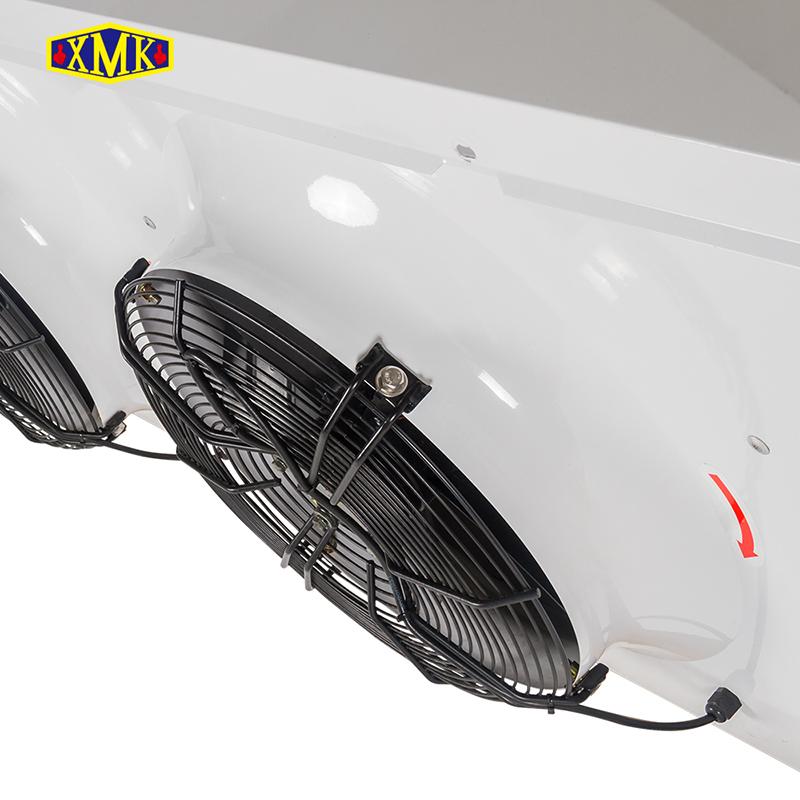

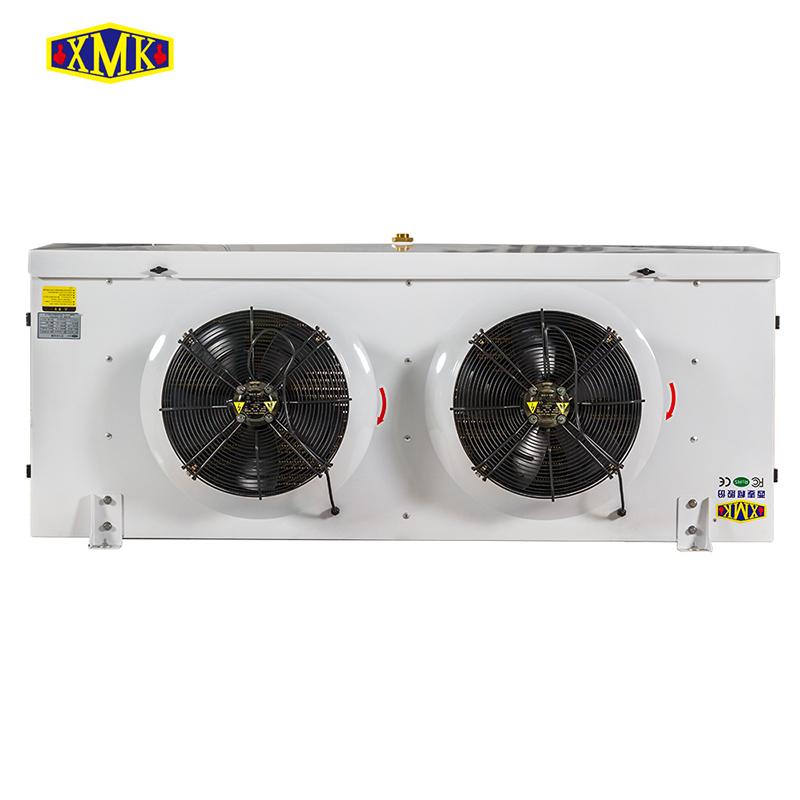

Fans:

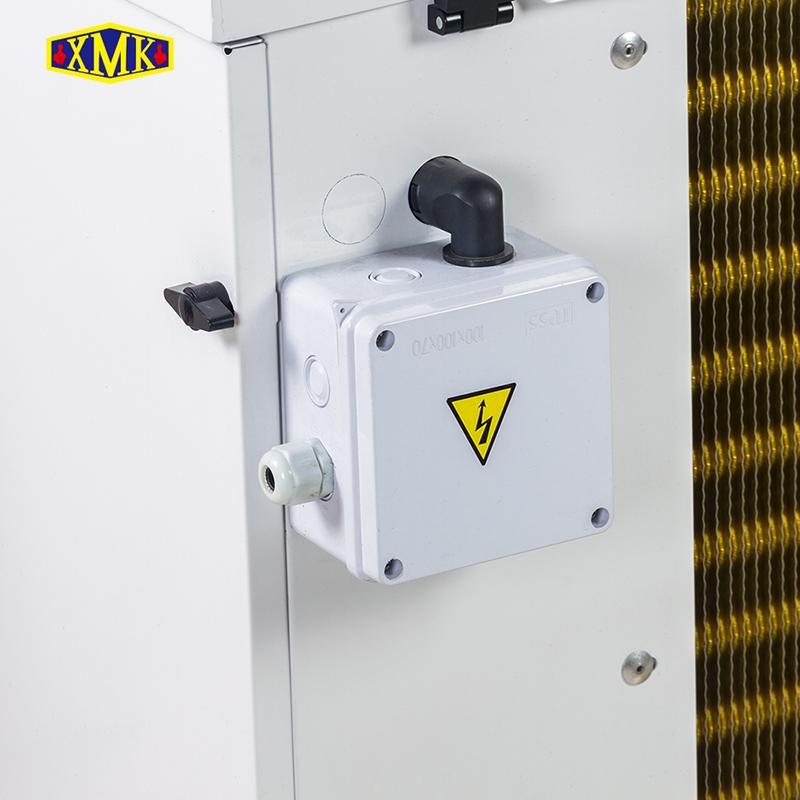

External rotor motor with high wind pressure, working temperature -40~60℃. High air duct design with Integral stretching, good ventilation effect, further airthrow, lower noise. Fans individually connected to junction box. Fan bladeφ300, φ350、 φ400, φ500, φ630, standard 4-pole motor
Defrosting:
Standard use of electric defrosting,stainless heating pipes installed in the middle of coil and inner water plate. Independent electric heating tube junction box. Hot gas defrosting or coil hot gas defrosting can also be used.
It can meet the requirements of R404A, R507A, R448A, R449A, R134a, R22 and other refrigerants

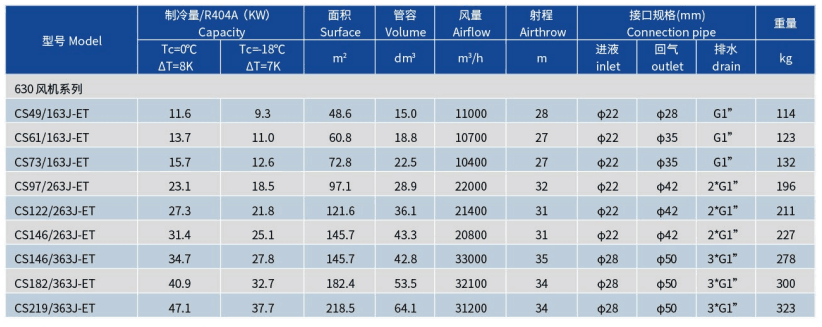

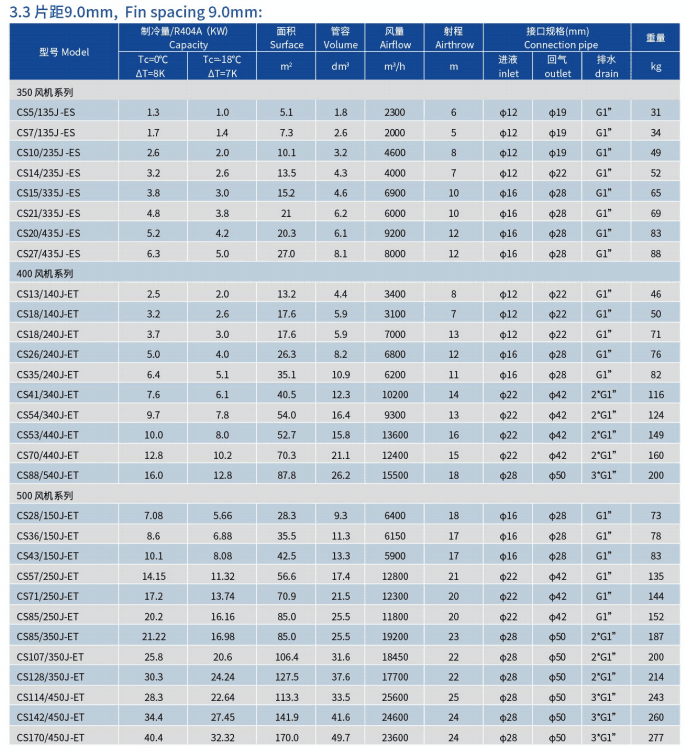

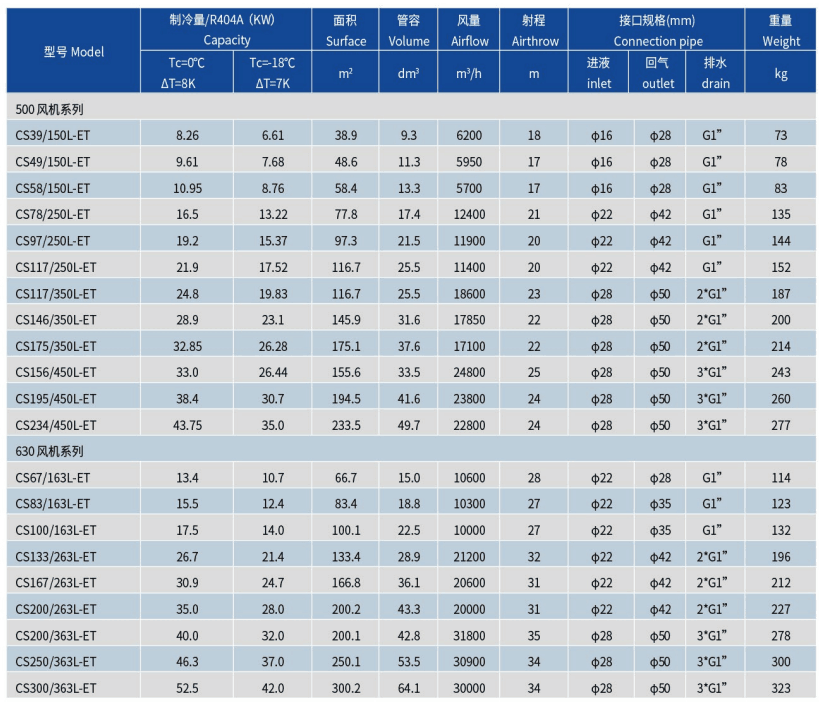

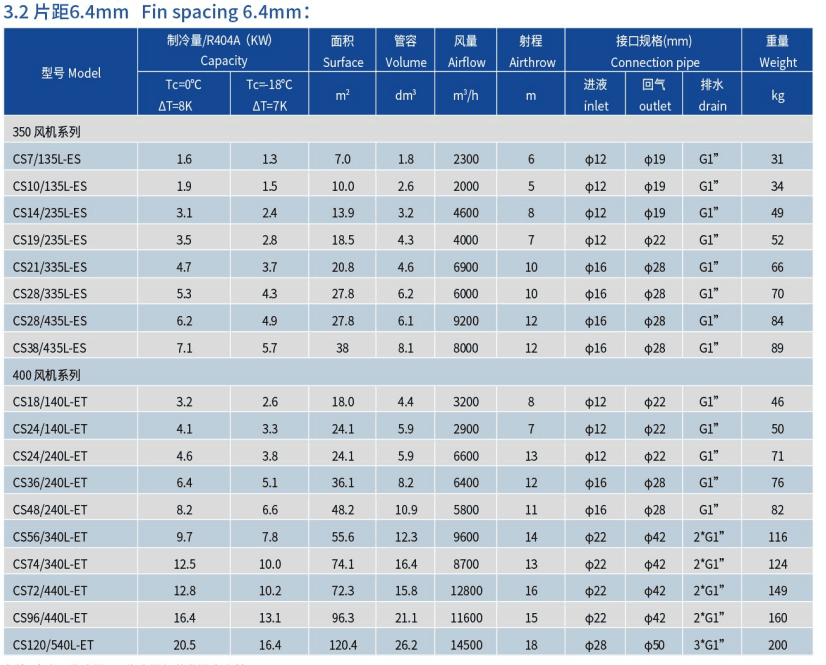

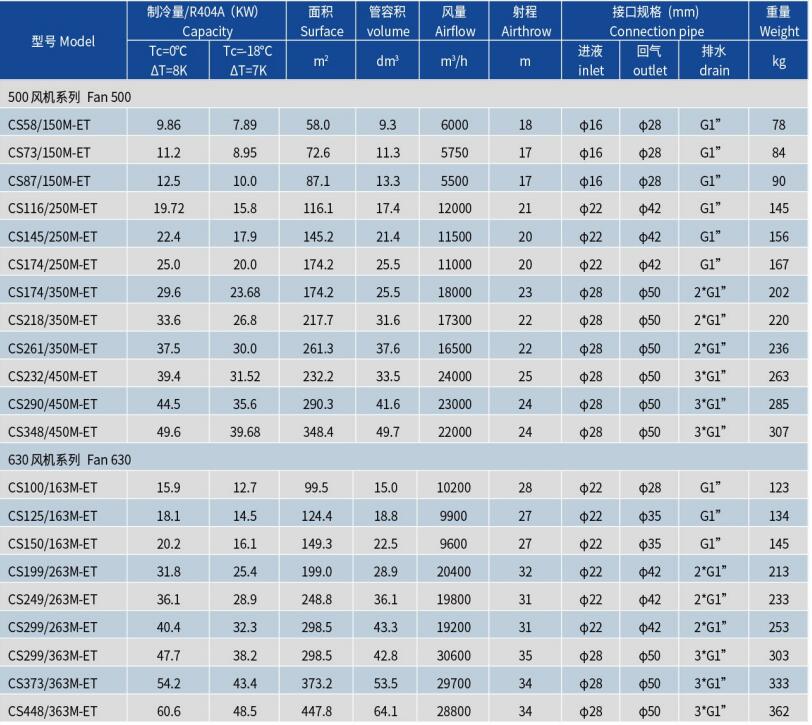

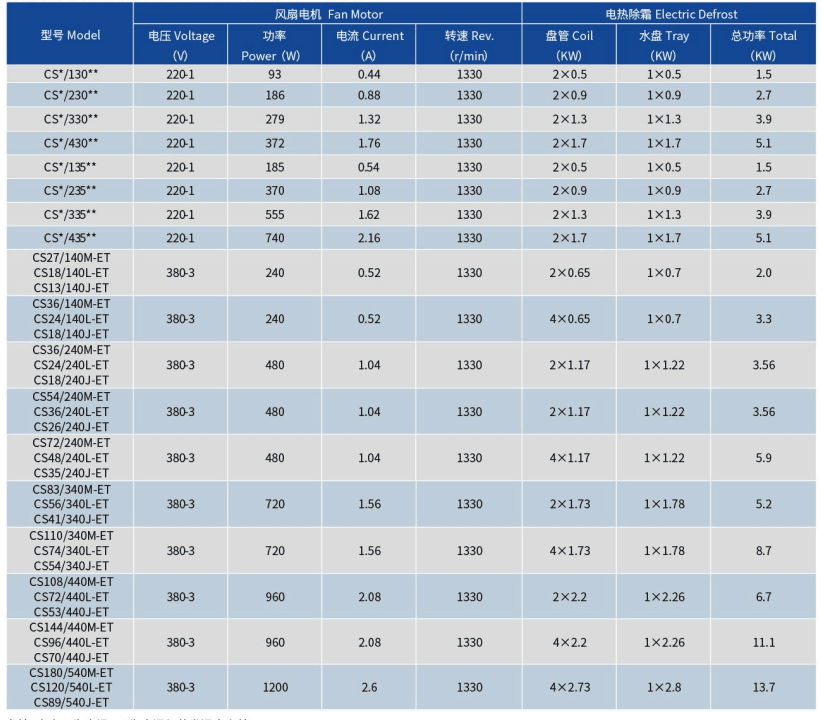

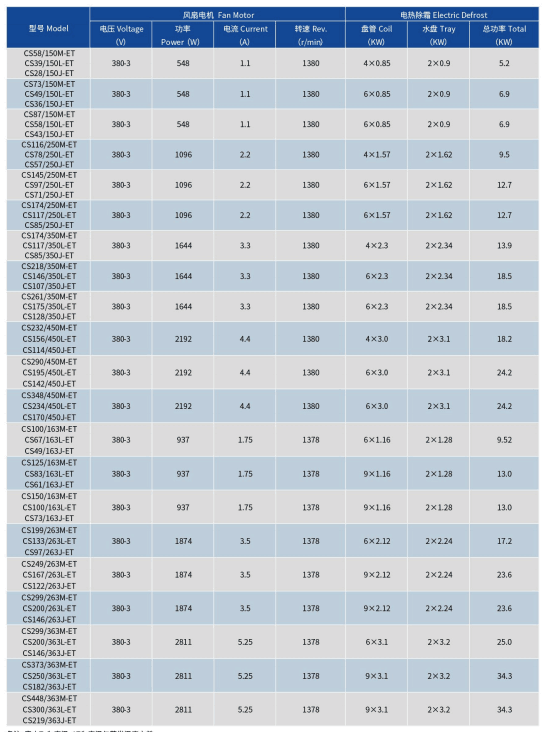

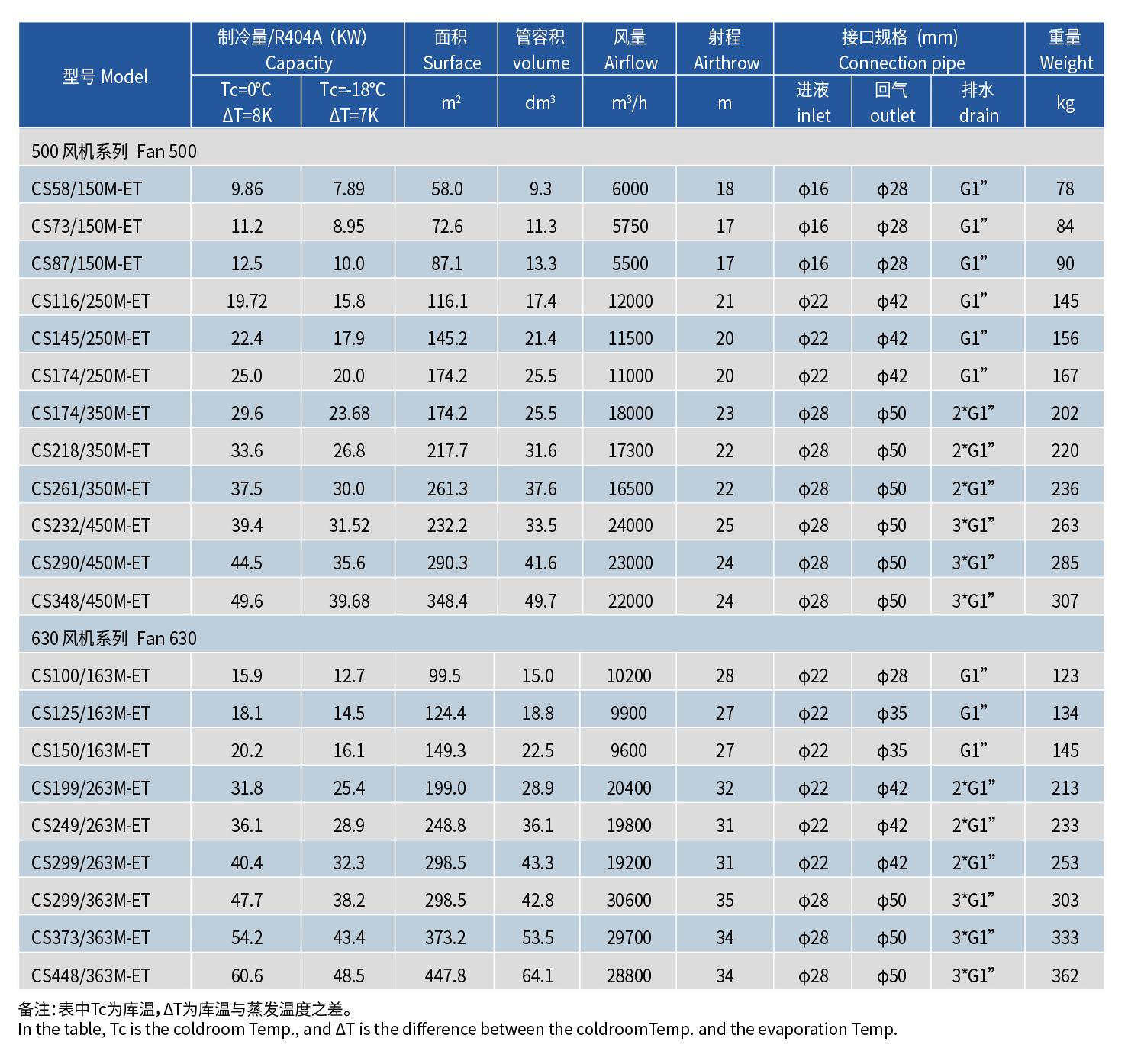

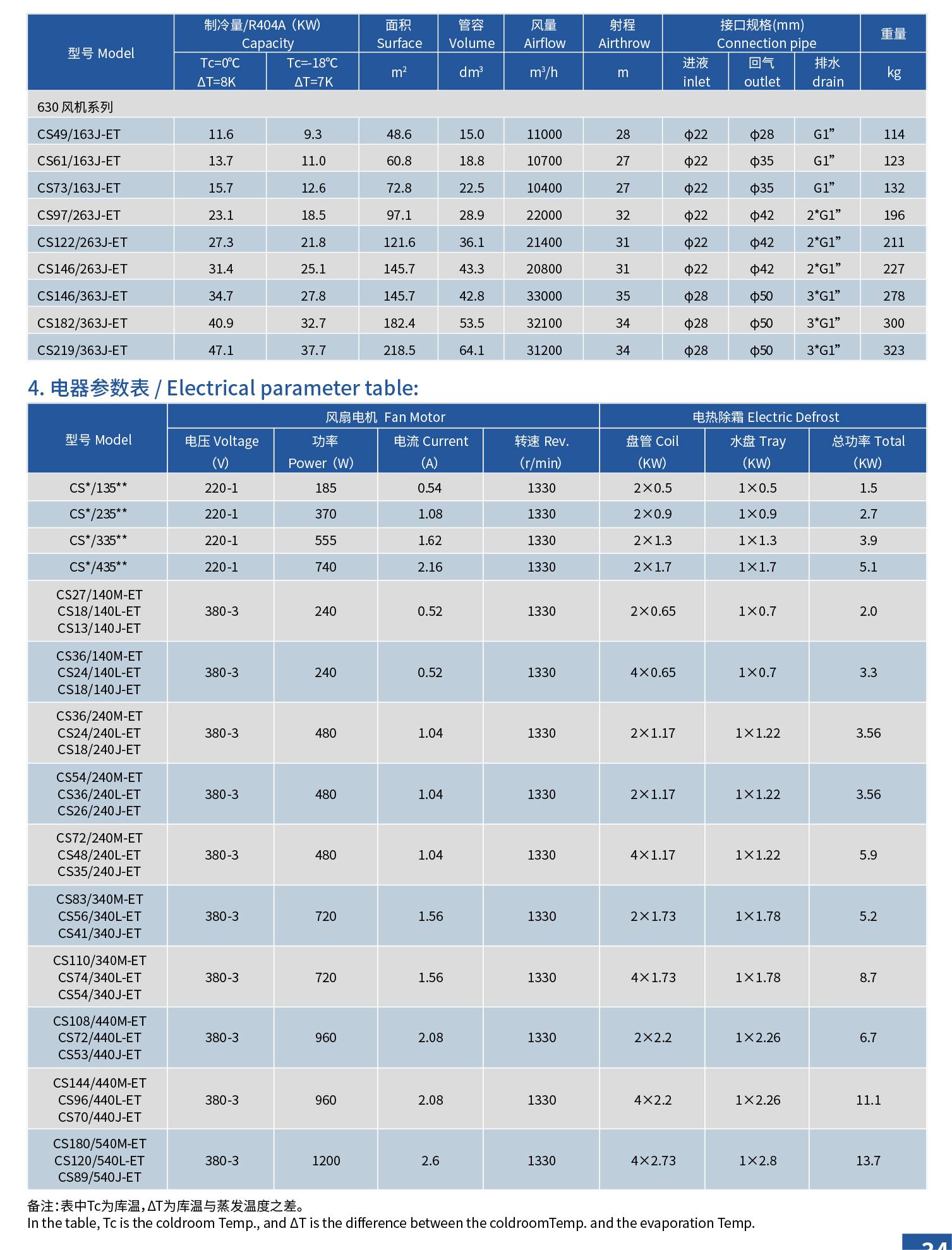

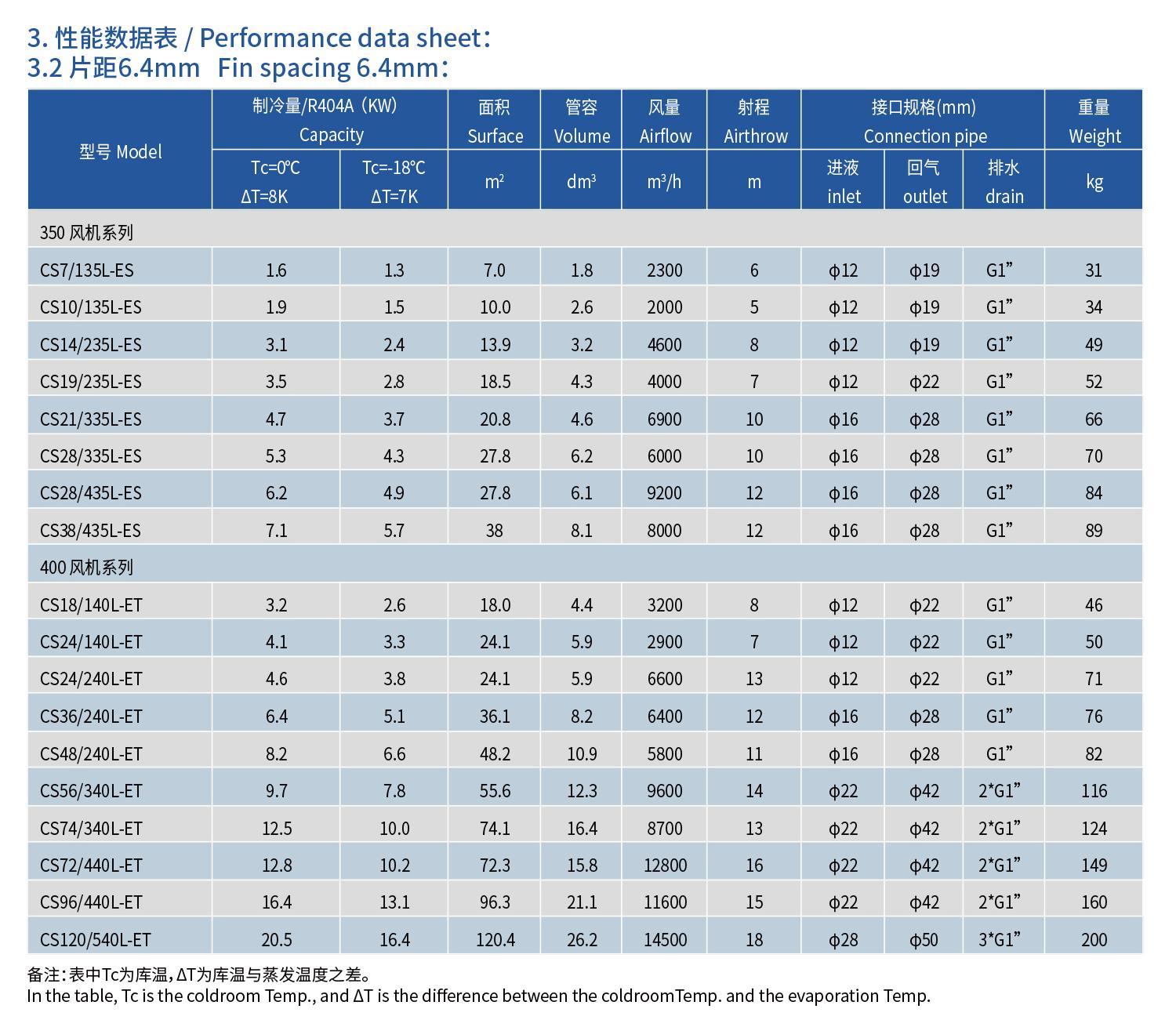

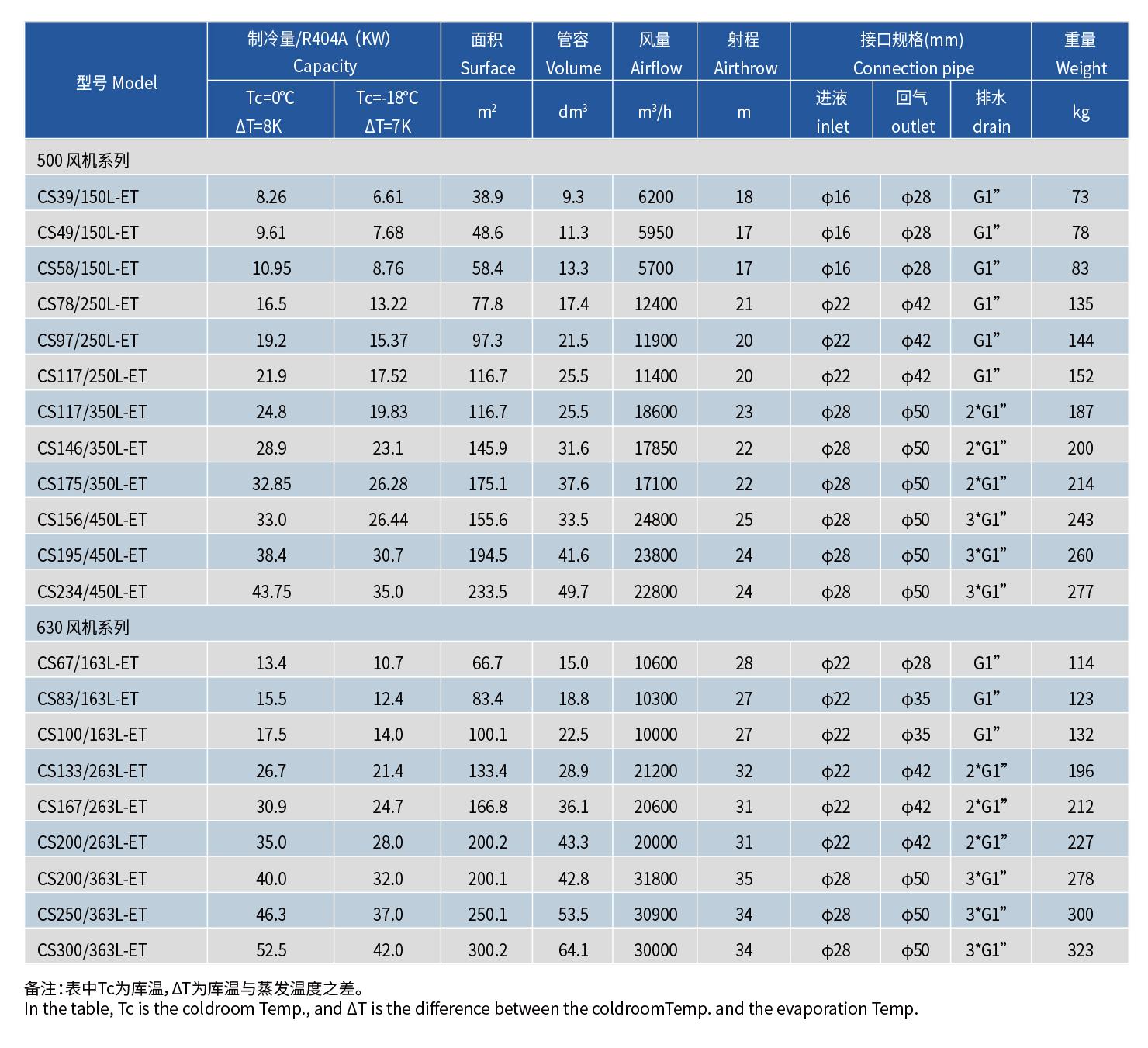

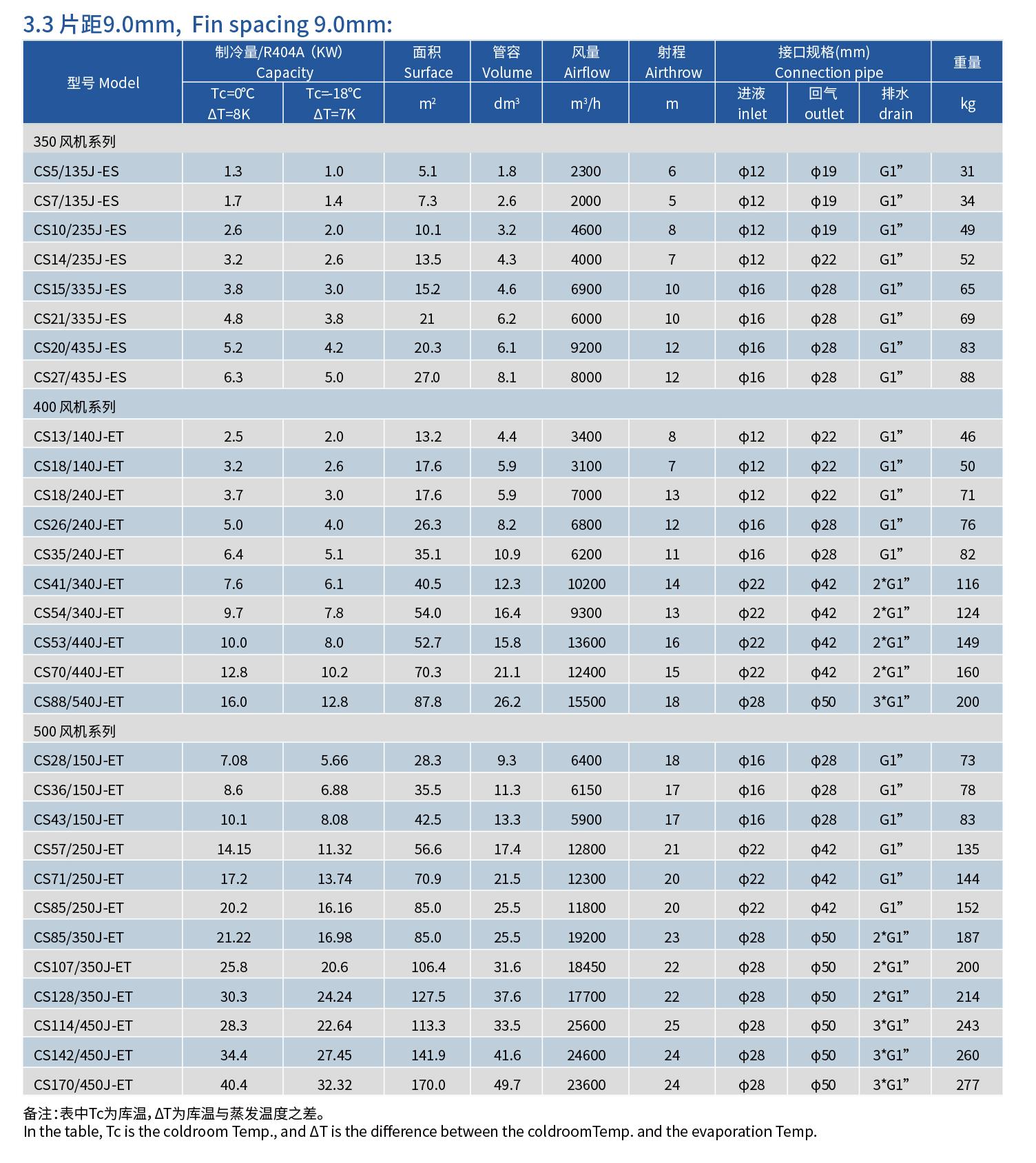

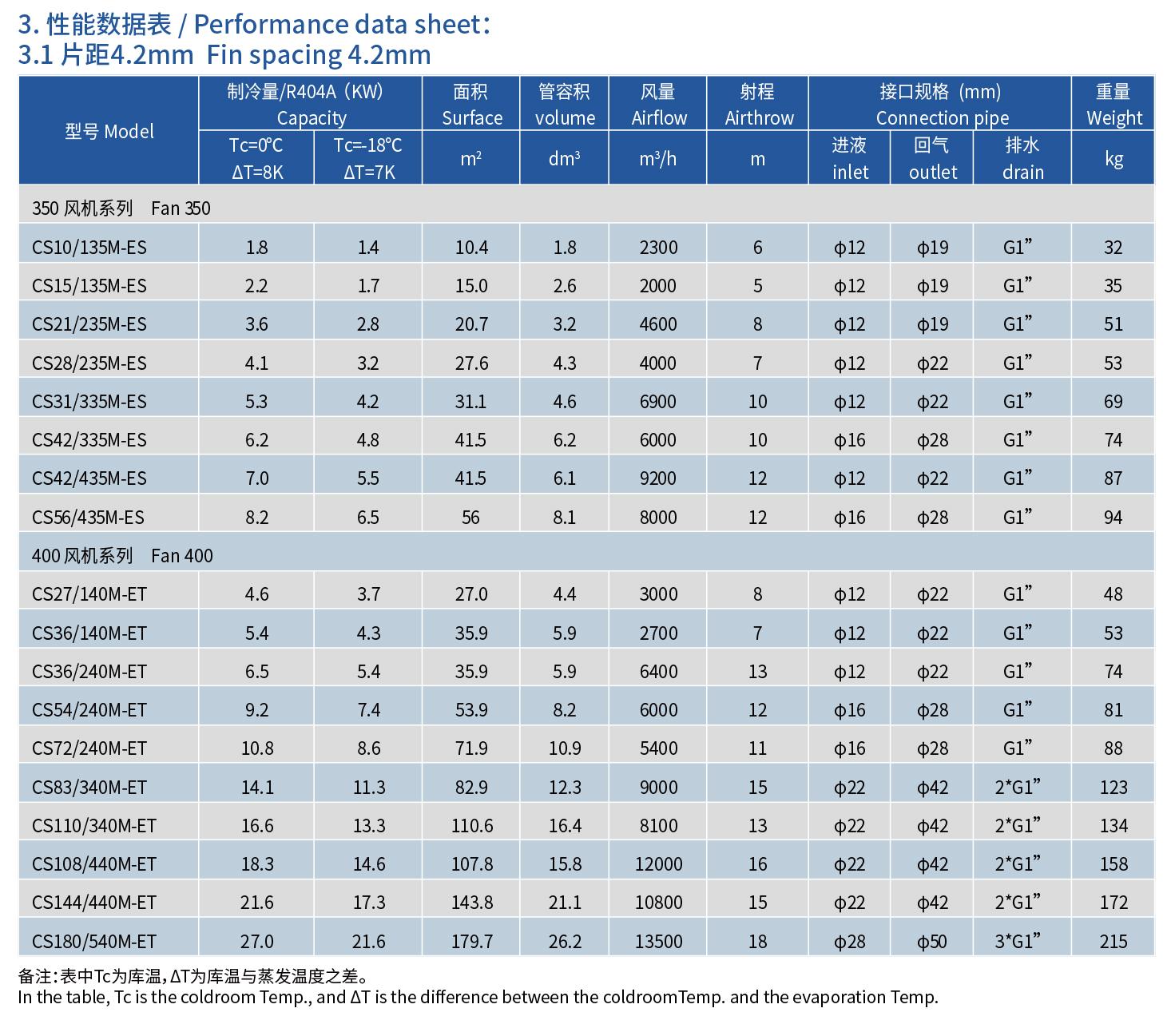

Performance data sheet：
In the table, Tc is the coldroom temp. and ΔT is the difference between the coldroom and the evap. temp.
In the table, Tc is the coldroom temp. and ΔT is the difference between the coldroom and the evap. temp
In the table, Tc is the coldroom temp. and ΔT is the difference between the coldroom and the evap. temp
In the table, Tc is the coldroom temp. and ΔT is the difference between the coldroom and the evap. temp
In the table, Tc is the coldroom temp. and ΔT is the difference between the coldroom and the evap. temp
In the table, Tc is the coldroom temp. and ΔT is the difference between the coldroom and the evap. temp
In the table, Tc is the coldroom temp. and ΔT is the difference between the coldroom and the evap. temp
In the table, Tc is the coldroom temp. and ΔT is the difference between the coldroom and the evap. temp
In the table, Tc is the coldroom temp. and ΔT is the difference between the coldroom and the evap. temp
In the table, Tc is the coldroom temp. and ΔT is the difference between the coldroom and the evap. temp
