Cold storage facilities for freezer room cold storage

The most suitable temperature range for mushrooms is 18-20℃, and the most suitable growth temperature for the fruiting body stage is 12-16℃. In all stages of mushroom growth, temperature control is very important.Tell us your cold storage Length * Wide * High(m) and then we can send you full quotation sheet about all equipment you need !Voltage accept 220V/380/50~60Hz.

Whether your need is equipment for cold storage container , mini cold storage for logistics cold chain system or walk in freezer cold storage , whole cooling system products we can provide and you just need to tell us :1.The Length * Wide * High(m) of the cold room .2. The room temperature you want ? Or what do you want to refrigerate ? 3. If there any other special requirement for voltage ?

Whether your need is large scale coolers ,processing room, walk in freezer cold storage or greenhouse storage, whole cooling system products we can provide and you just need to tell us  : 1.The Length * Wide * High(m) of the cold room . 2. The room temperature you want ? Or what do you want to refrigerate ?  3. If there any other special requirement for voltage ?  And then we will provide you full quotation sheet ,thank you !

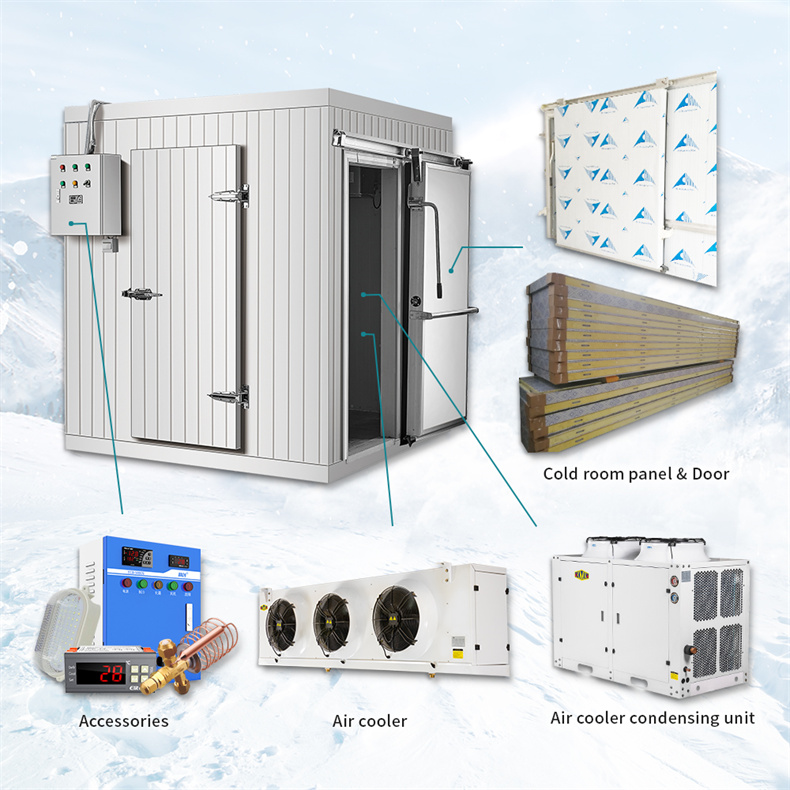

Whether you want any equipment for your vegetable or fruit refrigerated cold storage which over -5°C , we can provide whole cooling system products include condensing unit, air cooler, PU panel ,door and all accessories to you , and you just need to tell us : 1.The Length * Wide * High(m) of the cold room . 2. The room temperature you want ? Or what do you want to refrigerate ?  3. If there any other special requirement for voltage ?

We provide refrigeration equipment for all cold room system need and support working temperature from -70°C to +60 °C . Hotels, restaurants , supermarkets, food, health, medicine , agriculture and other industries all welcome to send us inquiry to check.

XMK-5202 5/8 ODF Oil Separator Refrigeration For Condensing UnitWe oil separator has the great oil-separating capacity.The mixed gaseous refrigerant get into oil separator from compressor,carring oil to get through stainless steel mesh inlet.The oil particles collide and become heavier,impacting on the inwall and intermediate clapboard ultimately.The separated oil drop on the bottom of separator,when them accumulate to a certain amount,the oil will get back to compressor crankcase automatically through the pressure differential  ball float needle valve device.ModelConnector sizeXMK-52011/2 ODFXMK-52025/8 ODFXMK-52037/8 ODFXMK-52041-1/8 ODFXMK-52051-3/8 ODFXMK-62031-3/8 ODFXMK-62041-5/8 ODFXMK-62052-1/8 ODFProduction Introduction:The oil separator should be installed vertically and pre-charge the oil before installing oil separator,the oil should be same as the oil in the compressor crankcase.In the actual piping system,the excessive loads or vibration at the inlet and outlet should be prevented.Oil storage separator must be fixed in the mounting pin connections. Design features:1,Extra length multiayer filter mesh desgin will buffer the mixed gaseous refrigerant greatly.2,The installation of clapboard and spacer palte devide the space into three rooms,improving the efficiency of oil separating greatly.3,In practical application,the vibration of unit might affect ball float installation stability,so the clapboard and spacer plate could reduce the vibration og it.4,Reasonable stainless steel ball float installation desgin remove the crash of ball float and oil return pipe which reduced the noise.5,The installation of magner on the bottom absorb the remaining iron dust in the system helpfully.

4FE-35Y Bitzer Cold Room Compressor Condensing Unit Product description:   1.HCU series open-type air-cool condensing units have the following characteristics.Adopted semi-hermetic piston compressors with BITZER or FRASCOLD, It has good quality and high reliability.   2.The air-cooled condenser, compressor and various accessories are installed on an integral frame, which is compact in structure and convenient in operation and maintenance.   3.Adopted high duct condenser with external rotor fan , which has low noise and high efficiency.   4.The product series is complete, It has high,medium, low temperature and quick frozen working conditions design. It can meet the needs of refrigeration equipment at various temperatures.   5.It can meet the requirements of R22, R404A,R507A, R448A, R449A and other refrigerants. Medium Bitzer 4FE-35Y Condensing Unit Catalogue: Power Supply  380V 50Hz 3phase Apply Temp. -5 to -5 degree Compressor Model 4FE-35Y Compressor Max.I(A) 62.1 Fan Voltage (V) 380V 50Hz 3phase Fan Current (A) 7 Fan Power (W) 937x4 Suction Line (mm) 54 Liquid Line （mm） 22 Size length (mm) 1800 Size Width (mm) 1300 Size Height (mm) 1880

12HP Bitzer Compressor Condensing Unit For Cold Room. Product description:   1.HCU series open-type air-cool condensing units have the following characteristics.Adopted semi-hermetic piston compressors with BITZER or FRASCOLD, It has good quality and high reliability.   2.The air-cooled condenser, compressor and various accessories are installed on an integral frame, which is compact in structure and convenient in operation and maintenance.   3.Adopted high duct condenser with external rotor fan , which has low noise and high efficiency.   4.The product series cold room condensing unit is complete, It has high,medium, low temperature and quick frozen working conditions design. It can meet the needs of refrigeration equipment at various temperatures.   5.It can meet the requirements of R22, R404A,R507A, R448A, R449A and other refrigerants. Medium Bitzer Condensing Unit data:   Power Supply  380V 50Hz 3phase Apply Temp. -5 to -5 degree Compressor Model 4TES-12Y Compressor Max.I(A) 25.2 Fan Voltage (V) 380V 50Hz 3phase Fan Current (A) 2.1 Fan Power (W) 240x4 Suction Line (mm) 35 Liquid Line （mm） 16 Size length (mm) 1435 Size Width (mm) 1000 Size Height (mm) 1430

ZSI18KQE Compressor Freezer Unit Cool Room    Product description:   BUW-B series box-type condensing units have the following characteristics   1.Products adopt horizontal box- type structure,high wind circle design, excellent appearance.   2.The cover of the case adopts hinge structure,which is easy to maintain and operate.   3.Compressor uses Emerson ZB series and ZSIseries with DTC spray & ZFI series with EVIscroll compressor to meet the application ofmedium temperature and low temperaturerespectively.   4.Adopt U-type condenser, it has large windwardside, small wind resistance and good heat transfer effect.   5.Adopt U-type condenser, it has large windwardside，small wind resistance and good heattransfer effect.    Copeland ZSI18KQE Condensing Unit Catalogue:   Power Supply  380V 50Hz 3phase Apply Temp. -15 to -23 degree Compressor Model ZSI18KQE Compressor Max.I(A) 13.2 Fan Voltage (V) 380V 50Hz 3phase Fan Current (A) 0.52 Rev.(r/min) 1380 Suction Line (mm) 19 Liquid Line （mm） 12.7 Size length (mm) 820 Size Width (mm) 655 Size Height (mm) 815
