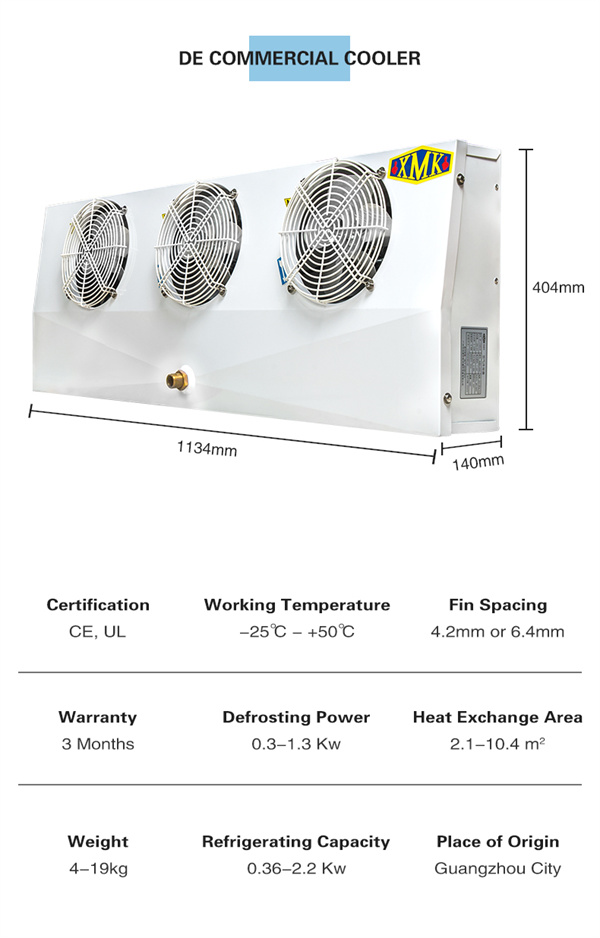

Display case commerical refrigerator DE air cooler

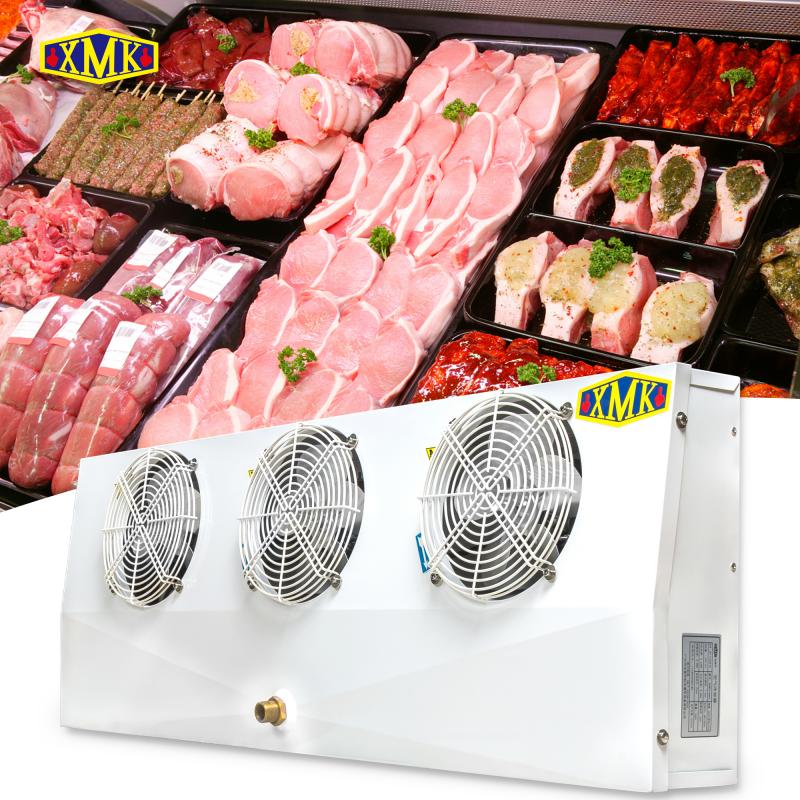

DE series air cooler can be use in small cold room or supermarket refrigerated display case as a air cooler for foods fresh keeping or frozen. Working temperature apply to over -18 °C.

  • Item NO.:

    DE4.7/320L
  • Payment:

    T/T
  • Product Origin:

    China
  • Color:

    white
  • Shipping Port:

    Guangzhou

Product Features

DE series 6.4mm fin spacing type air cooler is apply to refrigerated display case or small cold room which is within 10 m2 cooling system as a evaporator.

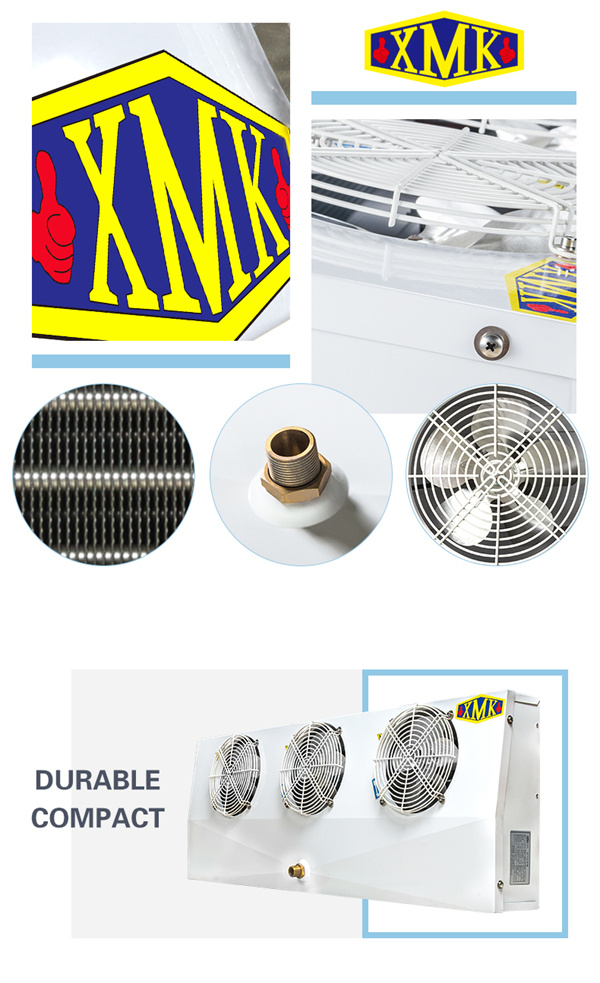

Casting
Using Al-Mg alloy sheet, it has strong anti-corrosive property and light weight.

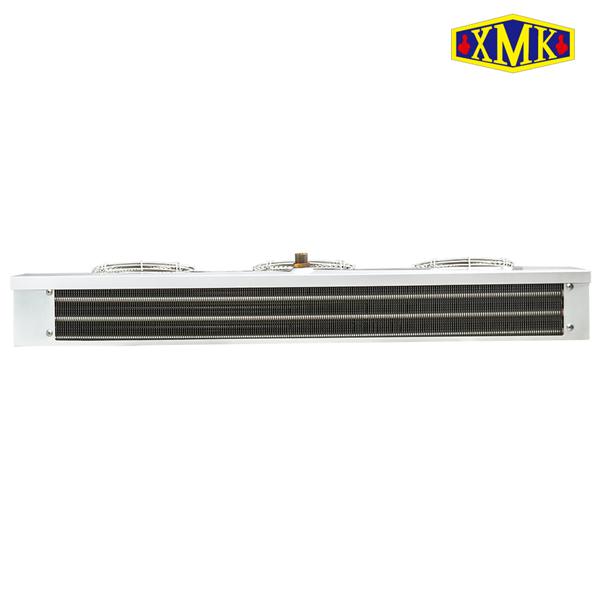

Heat Exchanger Coil
Copper tubingφ12,spacing 38.1×33
Corrugated aluminium fins,fin spacing 4.2 mm & 6.4 mm.

Fin spacing 6.4mm Specification


ModelSurface/m2Airflow/m3/hVoltage/VWeight/kg
DE1.4/120L 1.4 250 220-1 4
DE3.1/220L 3.1 500 220-1 8
DE4.7/320L 4.7 750 220-1 13
DE6.1/420L 6.1 1000 220-1 16
DE7.1/520L 7.1 1250 220-1 19

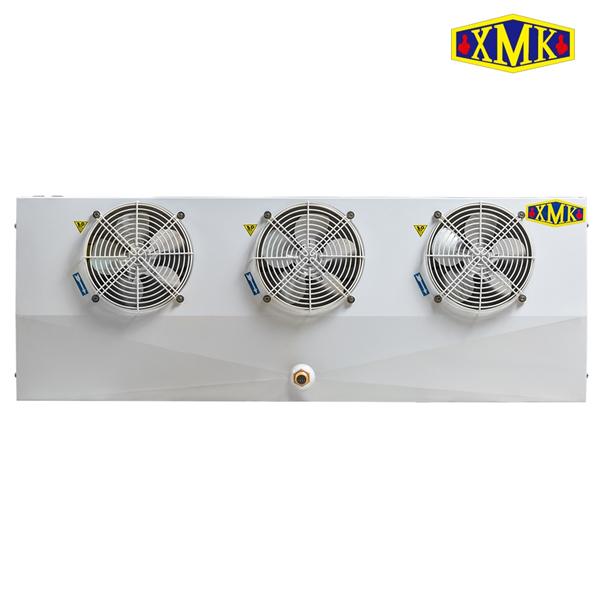

DE 4.7 air cooler


DE fan 200mm

DE7.1

air cooler 6.4mm
