Frozen cold storage PU panel 150mm

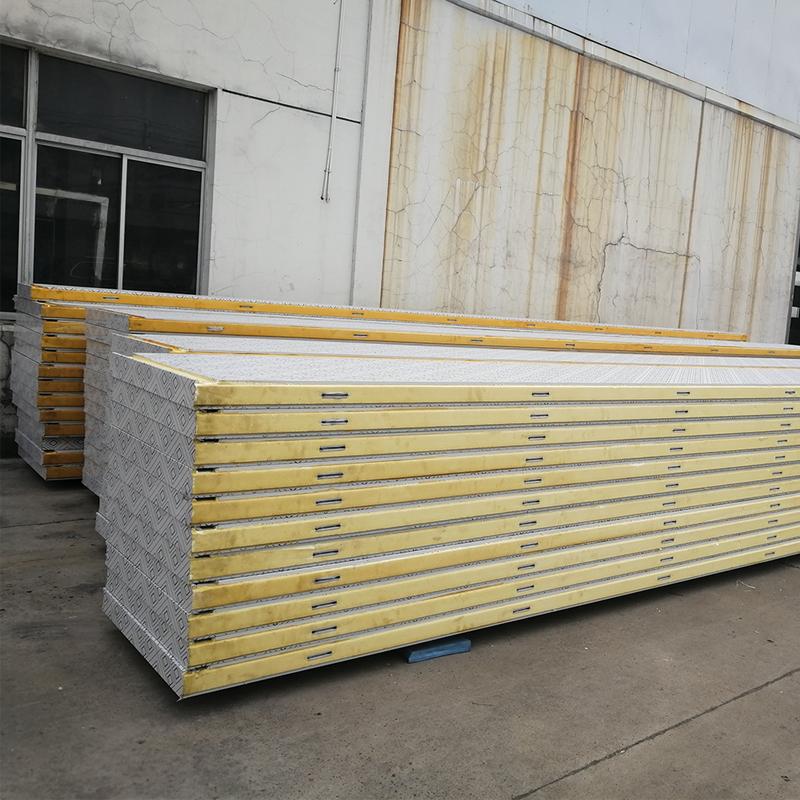

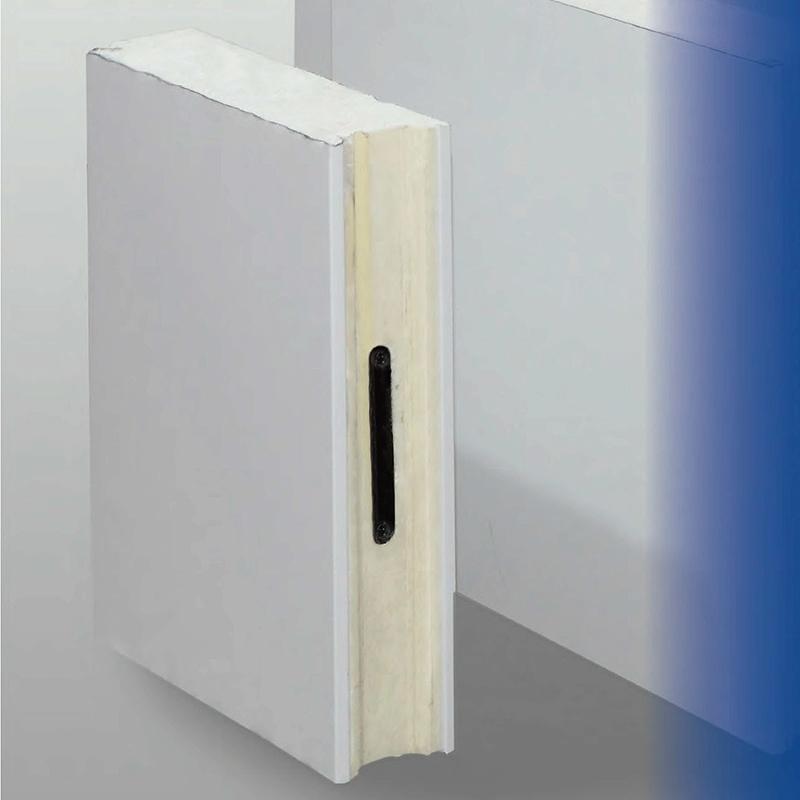

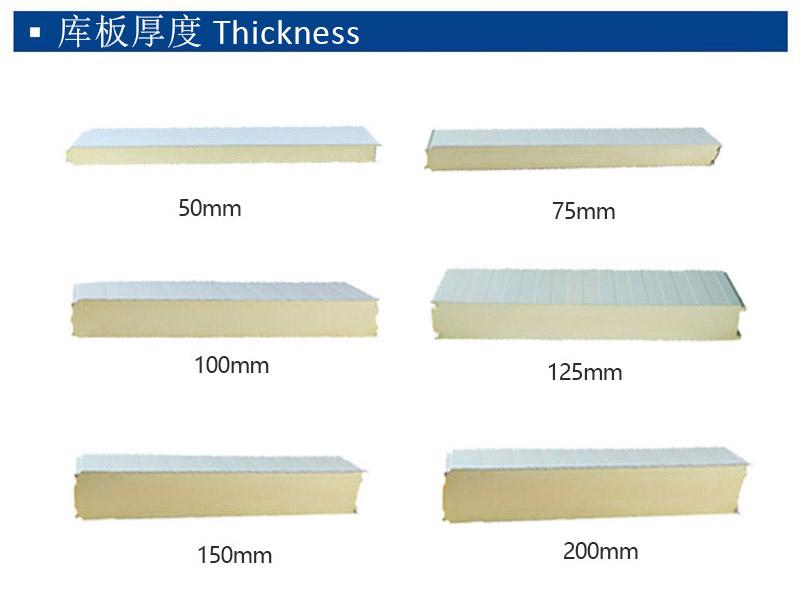

Cold storage PU panel also call polyurethane cold storage board or insulated panel for cold storage , type included cam-lock type PU panel and Plug-in type PU panle. Thickness from 75mm to 200mm.

Cold storage PU panel also call polyurethane cold storage board or insulated panel for cold storage , type included cam-lock type PU panel and Plug-in type PU panle. Thickness from 75mm to 200mm. 75mm board apply for high temperature cold room such as vegetable or fruit refrigerated cold storage.

We provide refrigeration equipment for all cold room system need and support working temperature from -70°C to +60 °C . Hotels, restaurants , supermarkets, food, health, medicine , agriculture and other industries all welcome to send us inquiry to check.

HC series air cooled condensers are mainly equipped with open-type condensing units with scroll compressor, hemertic & semi-hemertic compressor. This air cooled condensers and compressors can be installed together or separately from compressors. Design of High barrel with Side-mounted structure, with high heat transfer capacity.

XMK new design CWS/EWS series high air duct type unit coolers mainly adopt the design of air duct type fans, mainly used in ordinary medium and large cold storage .EWS is mainly used in explosion-proof raw material cold storage. Using water defrosting method.

Air cooled condenser is specially designed for Freon refrigeration equipment and cooled by air. XMK FNF series is suitable for R134a, R22, R404a, R407 and other refrigerants, widely used in freezing, refrigeration, air conditioning, heat pumps and industrial refrigeration. Fan blower support 350mm to 500mm.

The HX series ofseafood chiller developed by our factory, which designed into an overall compact structurewith a beautiful and exq uisite structure. it's including the condenser, titanium gun evaporator, various valvesand control systems. Which can be directly used in fields such as seafood farming.

ZB130KQE Copeland Compressor Scroll Unit   Product description:   BUW-B series box-type condensing units have the following characteristics   1.Products adopt horizontal box- type structure,high wind circle design, excellent appearance.   2.The cover of the case adopts hinge structure,which is easy to maintain and operate.   3.Compressor uses Emerson ZB series and ZSIseries with DTC spray & ZFI series with EVIscroll compressor to meet the application ofmedium temperature and low temperaturerespectively.   4.Adopt U-type condenser, it has large windwardside, small wind resistance and good heat transfer effect.   5.Adopt U-type condenser, it has large windwardside，small wind resistance and good heattransfer effect.    Copeland ZB130KQE Condensing Unit Catalogue:   Power Supply  380V 50Hz 3phase Apply Temp. -10 to 5 degree Compressor Model ZB130KQE Compressor Max.I(A) 38 Fan Voltage (V) 380V 50Hz 3phase Fan Current (A) 2.2 Rev.(r/min) 1380 Suction Line (mm) 42 Liquid Line （mm） 22 Size length (mm) 1620 Size Width (mm) 805 Size Height (mm) 1205

XMK-5201 1/2 ODF Oil Separator RefrigerationWe oil separator has the great oil-separating capacity.The mixed gaseous refrigerant get into oil separator from compressor,carring oil to get through stainless steel mesh inlet.The oil particles collide and become heavier,impacting on the inwall and intermediate clapboard ultimately.The separated oil drop on the bottom of separator,when them accumulate to a certain amount,the oil will get back to compressor crankcase automatically through the pressure differential  ball float needle valve device.ModelConnector sizeXMK-52011/2 ODFXMK-52025/8 ODFXMK-52037/8 ODFXMK-52041-1/8 ODFXMK-52051-3/8 ODFXMK-62031-3/8 ODFXMK-62041-5/8 ODFXMK-62052-1/8 ODFProduction Introduction:The oil separator should be installed vertically and pre-charge the oil before installing oil separator,the oil should be same as the oil in the compressor crankcase.In the actual piping system,the excessive loads or vibration at the inlet and outlet should be prevented.Oil storage separator must be fixed in the mounting pin connections. Design features:1,Extra length multiayer filter mesh desgin will buffer the mixed gaseous refrigerant greatly.2,The installation of clapboard and spacer palte devide the space into three rooms,improving the efficiency of oil separating greatly.3,In practical application,the vibration of unit might affect ball float installation stability,so the clapboard and spacer plate could reduce the vibration og it.4,Reasonable stainless steel ball float installation desgin remove the crash of ball float and oil return pipe which reduced the noise.5,The installation of magner on the bottom absorb the remaining iron dust in the system helpfully.
