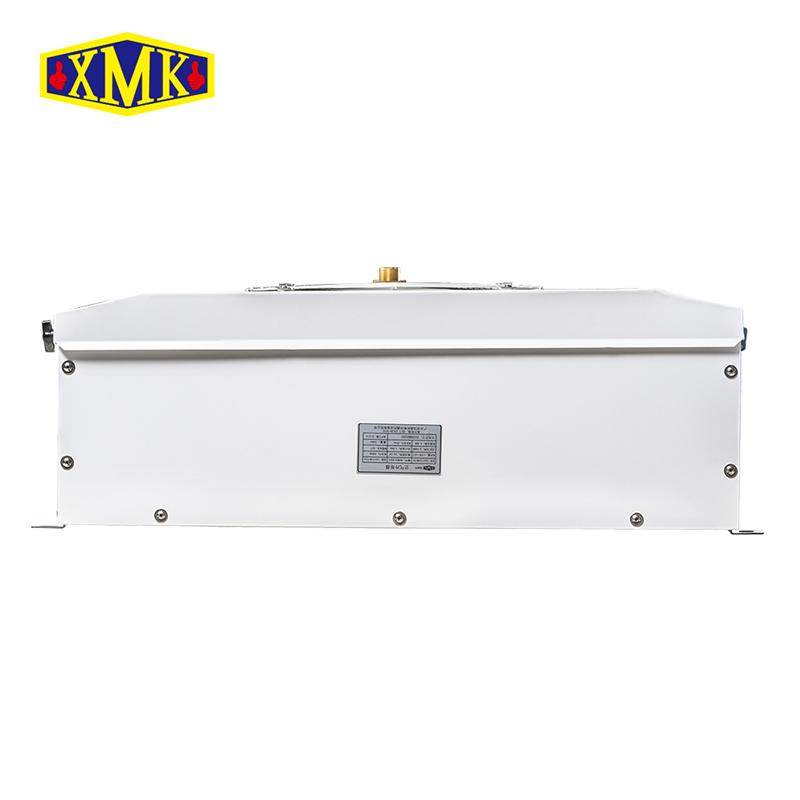

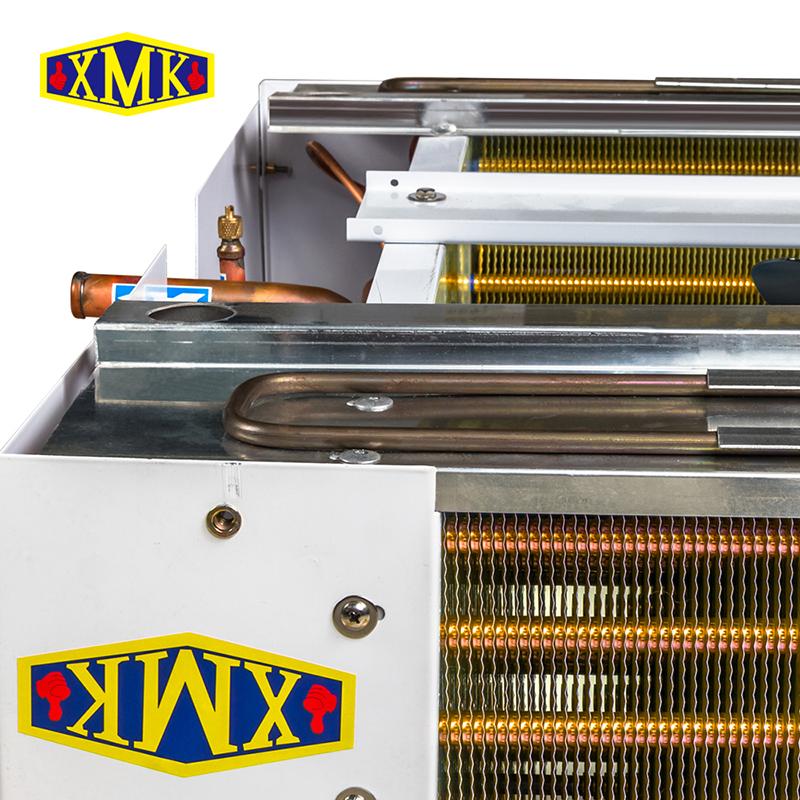

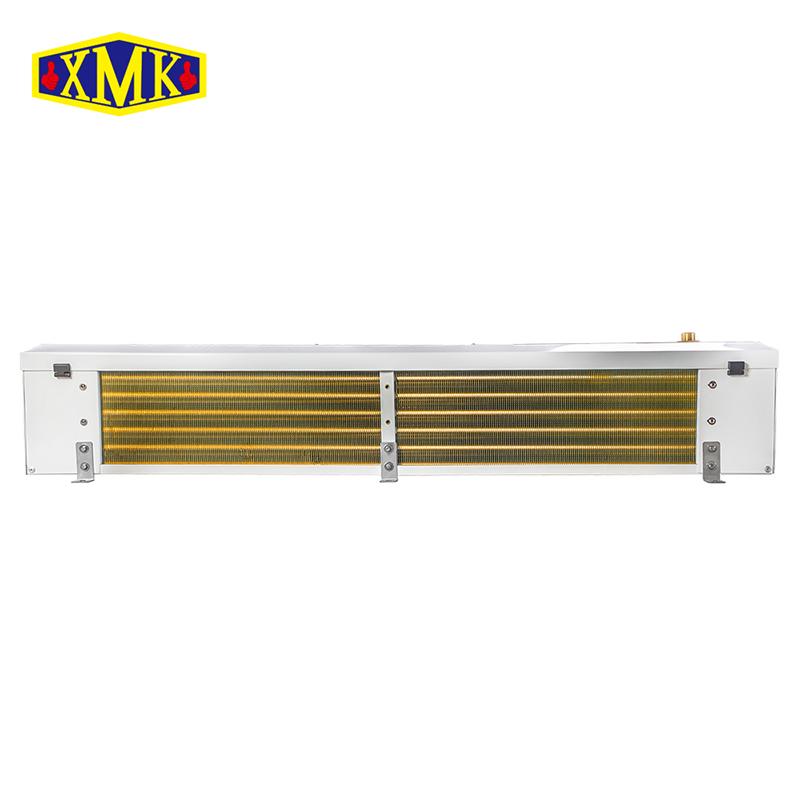

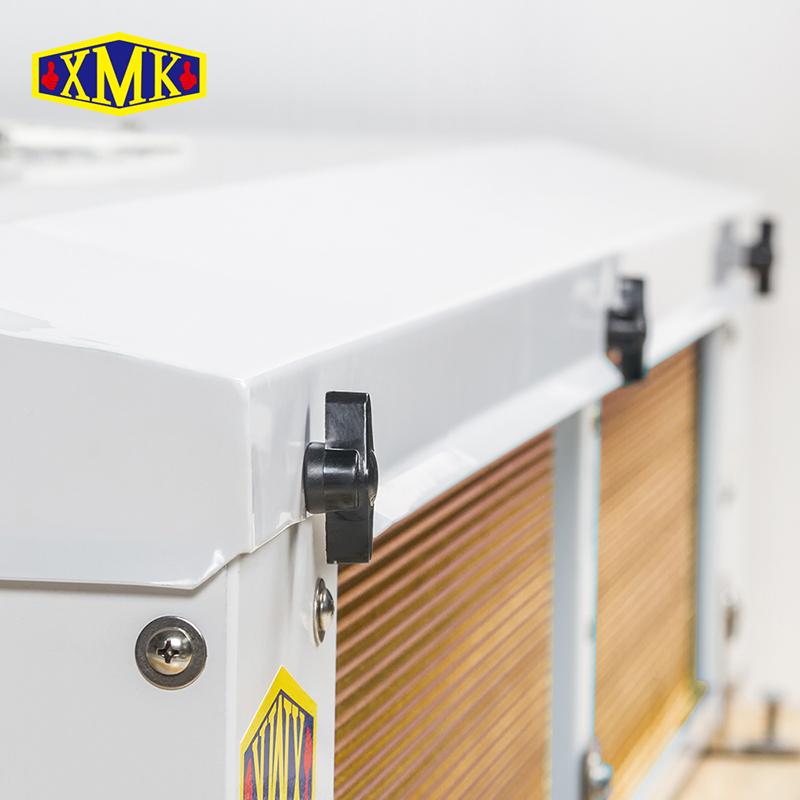

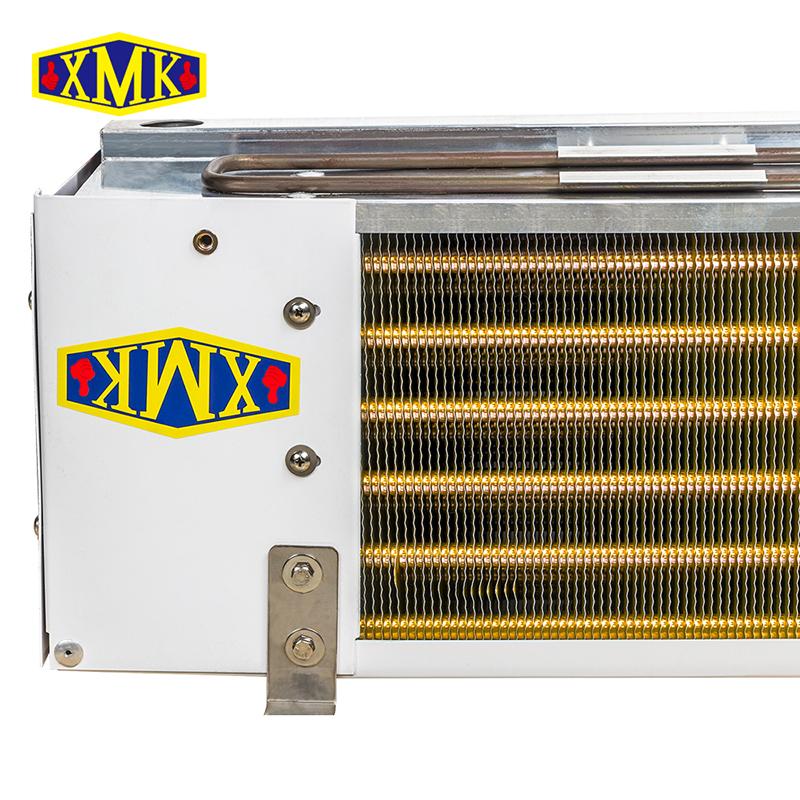

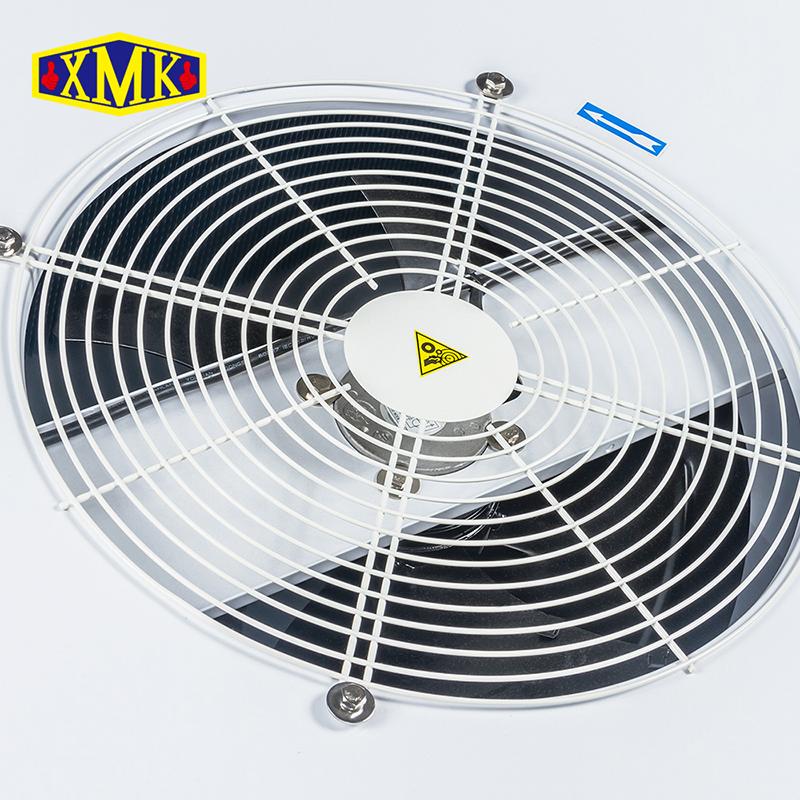

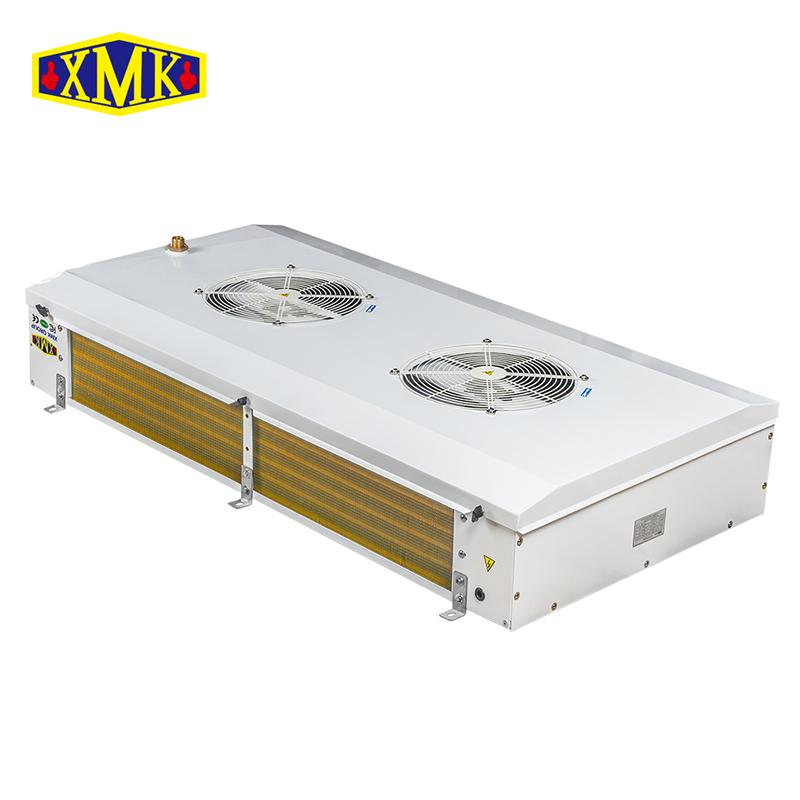

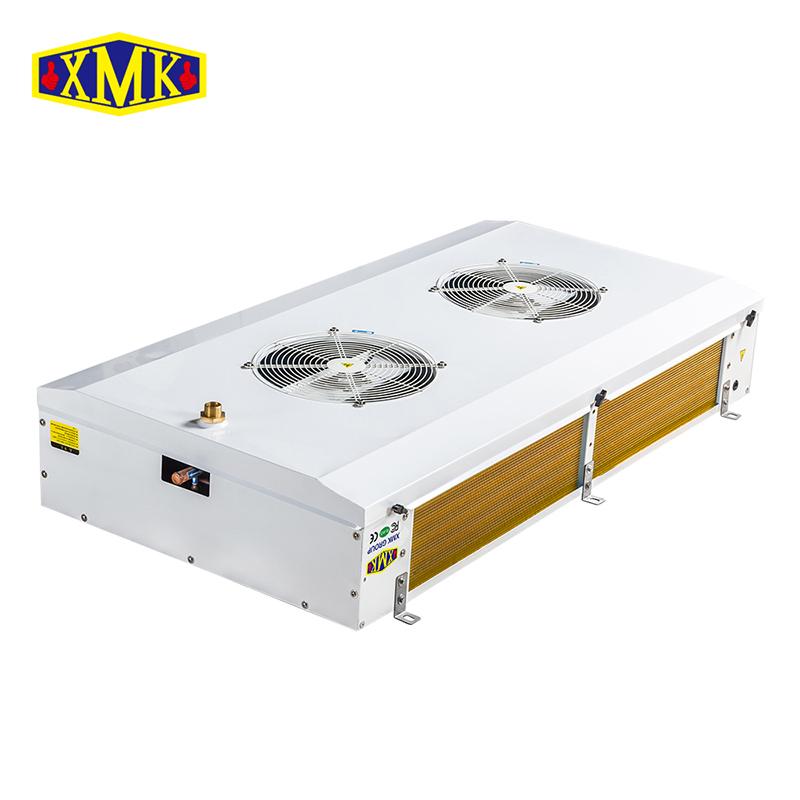

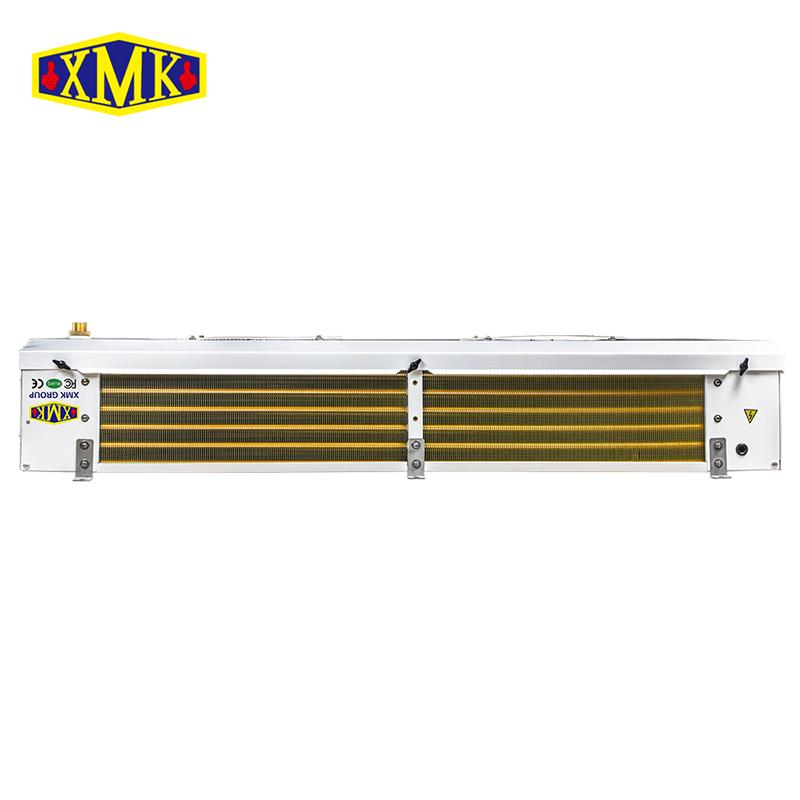

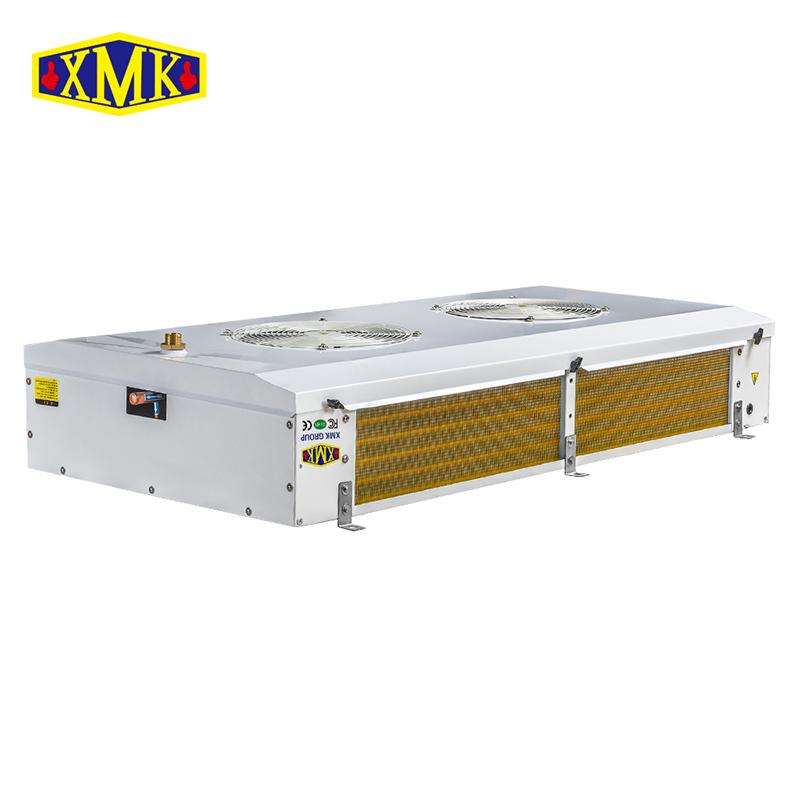

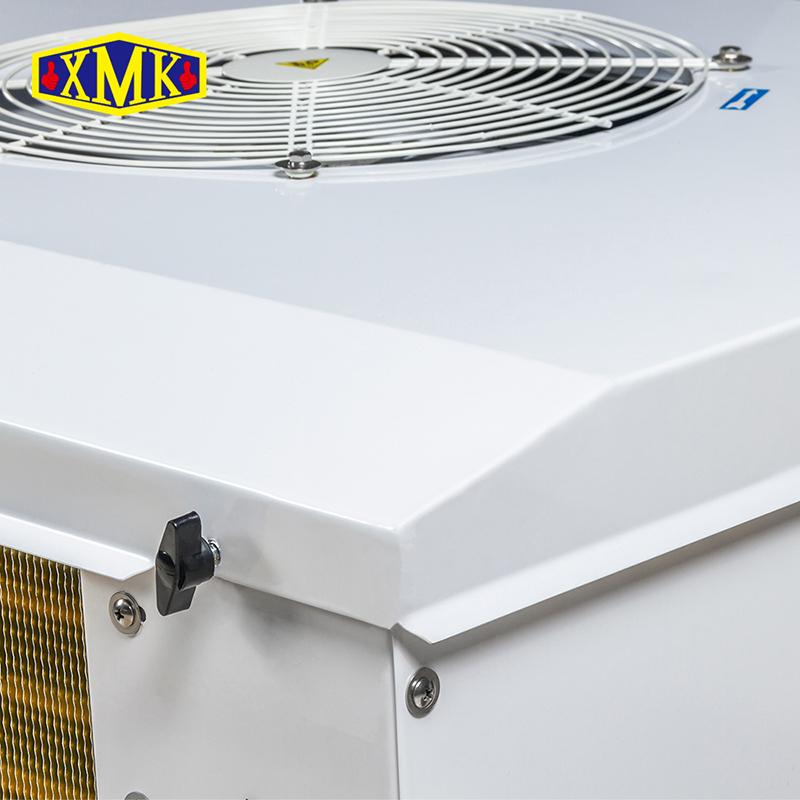

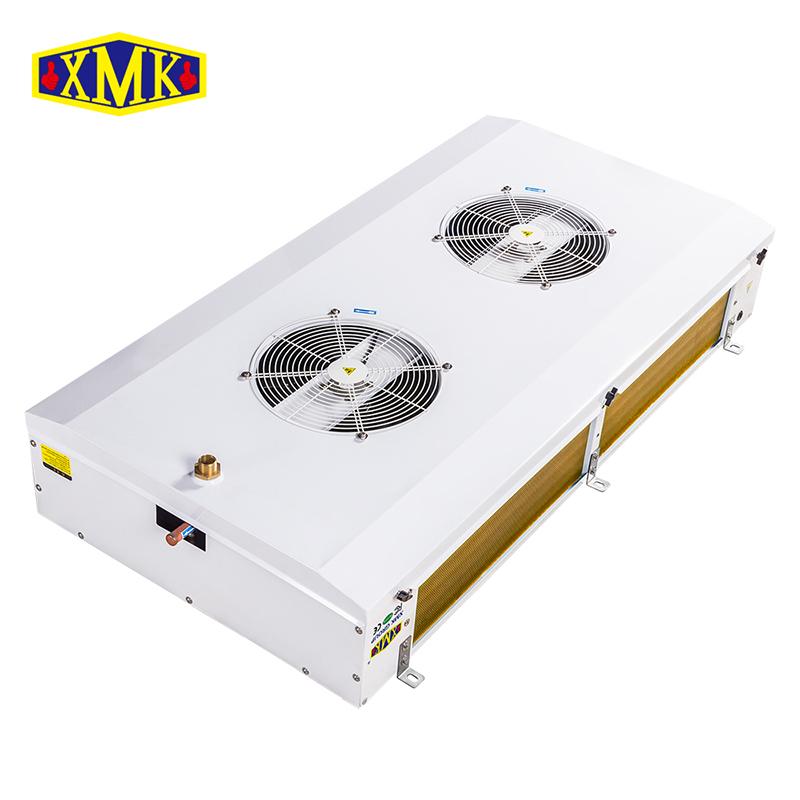

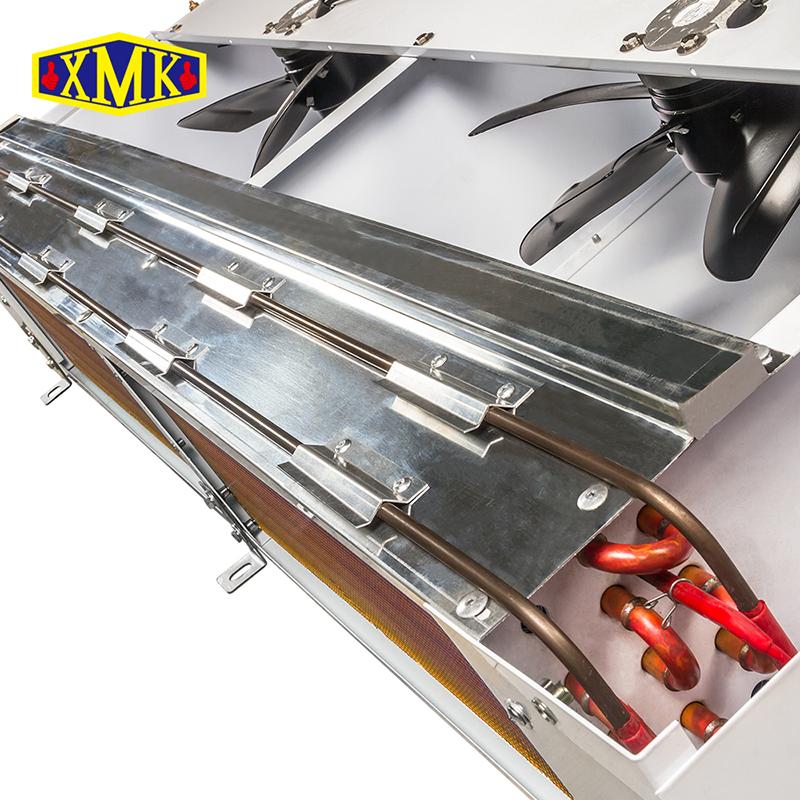

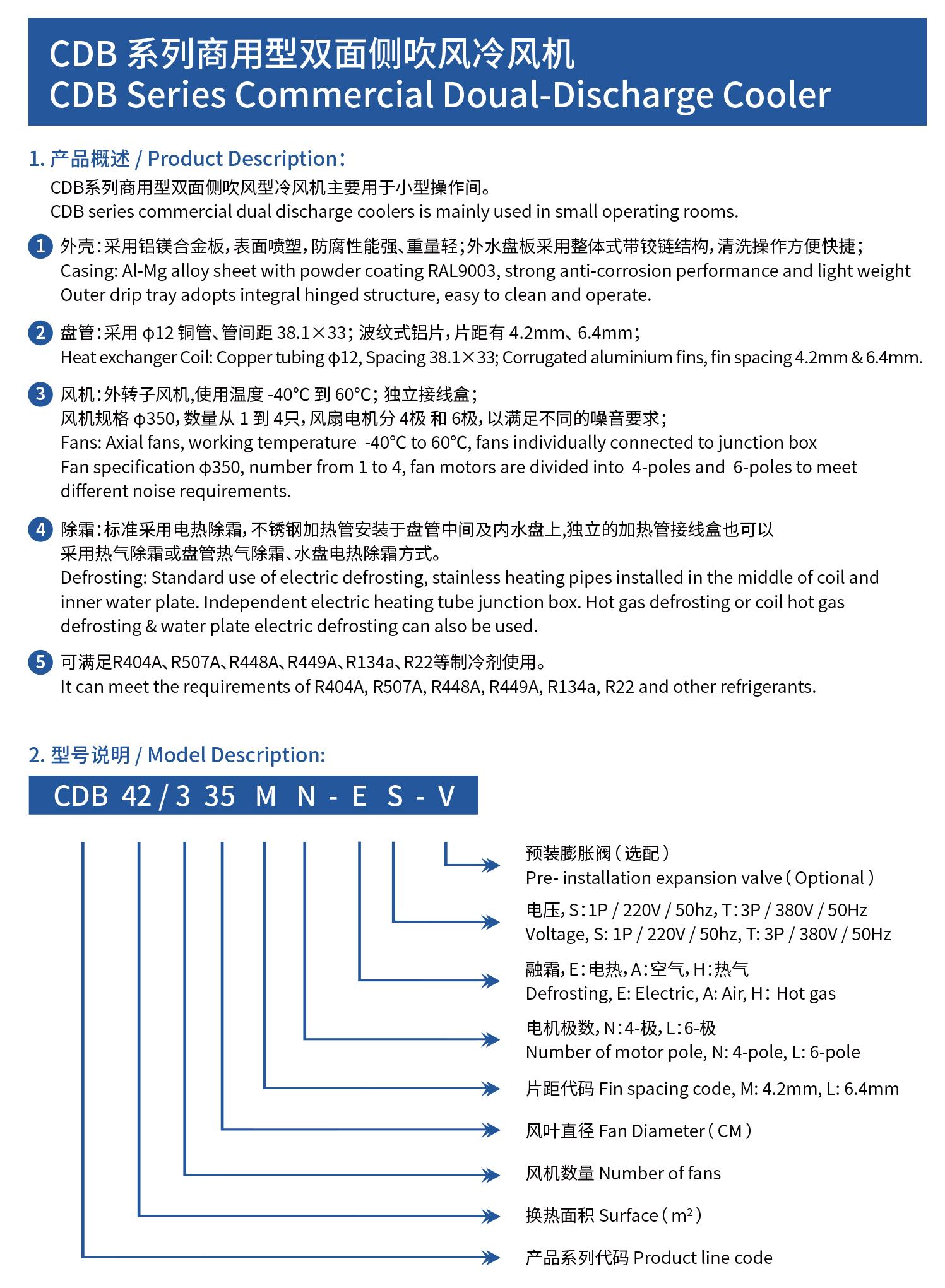

XMK CDB series commericial air cooler is design for small operation handing room as the cooling system evaporator. Dual discharge design to minimize loss from evaporation of water , apply for food's processing room and refrigerated room. Voltage 220V and accept customization.

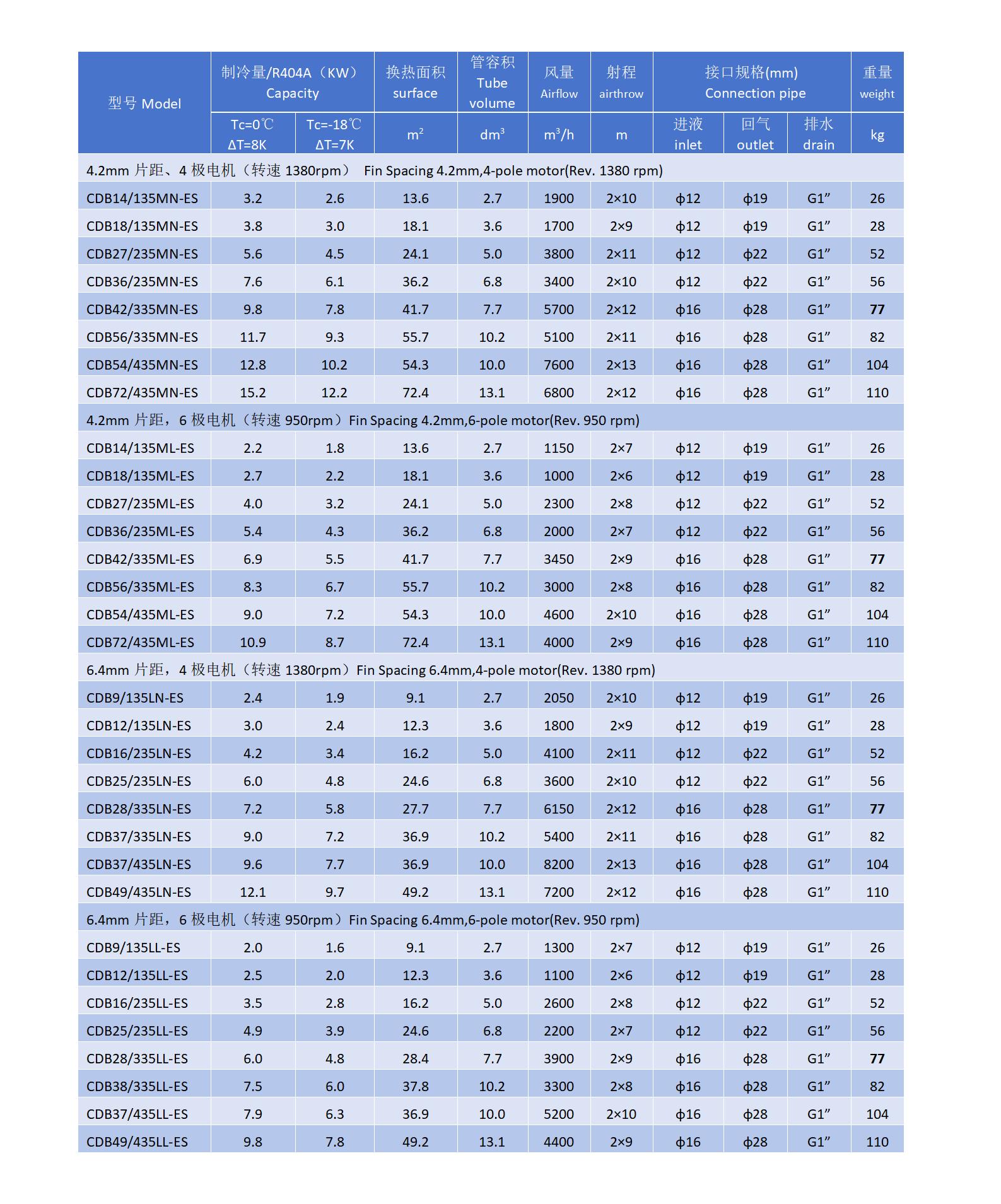

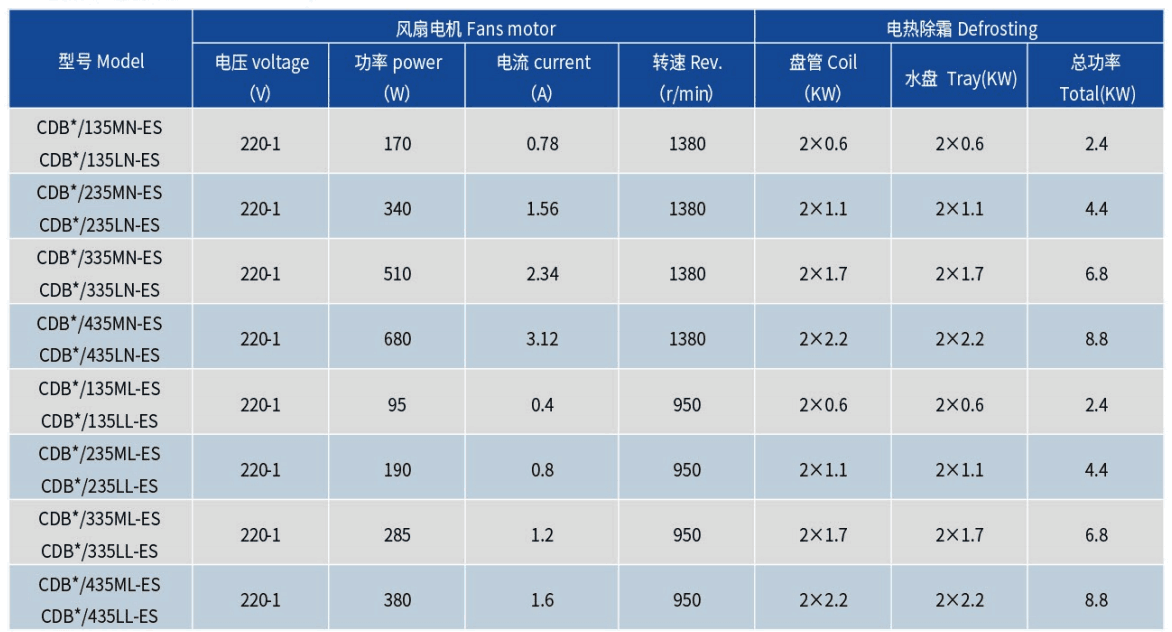

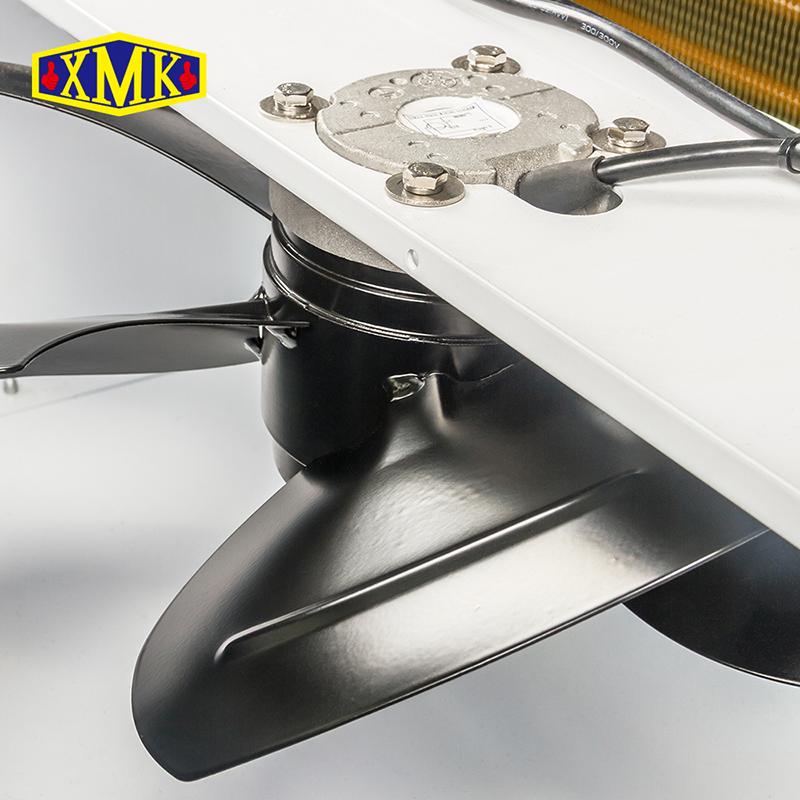

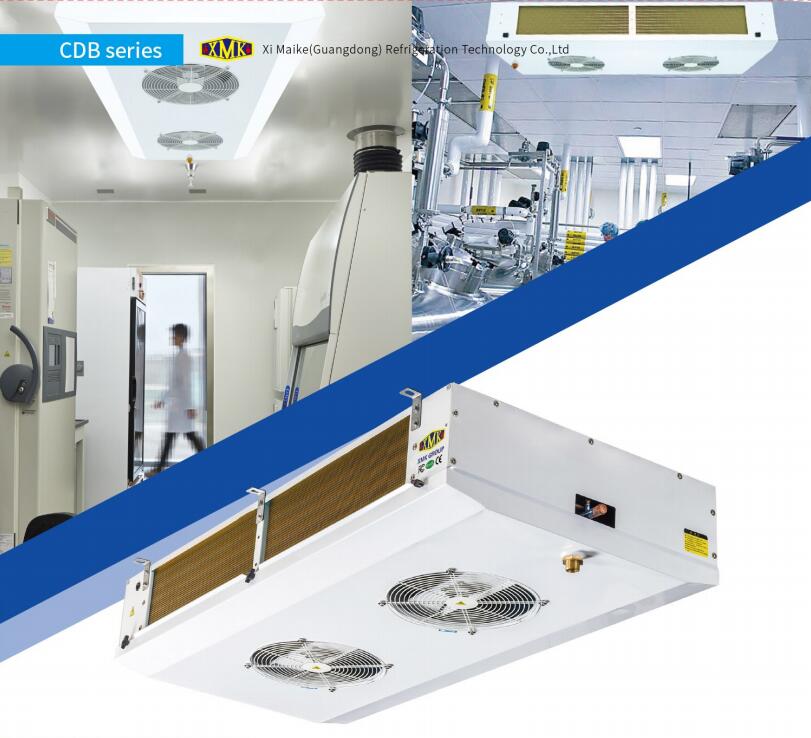

CDB air cooler is install in small handing rooms, labs or larders which has requirements in air-flow directions. Normally fin spacing in 4.2mm with 4-pole or 6-pole motor.
Bitzer Catalogue Refrigeration Condenser Cooling Unit Product description: 1.HCU series open-type air-cool condensing units have the following characteristics.Adopted semi-hermetic piston compressors with BITZER or FRASCOLD, It has good quality and high reliability. 2.The air-cooled condenser, compressor and various accessories are installed on an integral frame, which is compact in structure and convenient in operation and maintenance. 3.Adopted high duct condenser with external rotor fan , which has low noise and high efficiency. 4.The product series is complete, It has high,medium, low temperature and quick frozen working conditions design. It can meet the needs of refrigeration equipment at various temperatures. 5.It can meet the requirements of R22, R404A,R507A, R448A, R449A and other refrigerants. Medium Bitzer Condensing Unit data: Power Supply 380V 50Hz 3phase Apply Temp. -5 to -5 degree Compressor Model 4TES-12Y Compressor Max.I(A) 25.2 Fan Voltage (V) 380V 50Hz 3phase Fan Current (A) 2.1 Fan Power (W) 240x4 Suction Line (mm) 35 Liquid Line （mm） 16 Size length (mm) 1435 Size Width (mm) 1000 Size Height (mm) 1430
4FE-35Y Bitzer Cold Room Compressor Condensing Unit Product description: 1.HCU series open-type air-cool condensing units have the following characteristics.Adopted semi-hermetic piston compressors with BITZER or FRASCOLD, It has good quality and high reliability. 2.The air-cooled condenser, compressor and various accessories are installed on an integral frame, which is compact in structure and convenient in operation and maintenance. 3.Adopted high duct condenser with external rotor fan , which has low noise and high efficiency. 4.The product series is complete, It has high,medium, low temperature and quick frozen working conditions design. It can meet the needs of refrigeration equipment at various temperatures. 5.It can meet the requirements of R22, R404A,R507A, R448A, R449A and other refrigerants. Medium Bitzer 4FE-35Y Condensing Unit Catalogue: Power Supply 380V 50Hz 3phase Apply Temp. -5 to -5 degree Compressor Model 4FE-35Y Compressor Max.I(A) 62.1 Fan Voltage (V) 380V 50Hz 3phase Fan Current (A) 7 Fan Power (W) 937x4 Suction Line (mm) 54 Liquid Line （mm） 22 Size length (mm) 1800 Size Width (mm) 1300 Size Height (mm) 1880
4FES-5Y Bitzer Compressor For Condensing UnitProduct description:BUB series horizontal box-type condensing units have the following characteristics.1.Products adopt horizontal box-type structure,high wind circle design, Excellent ventilationeffect and appearance.2.The cover of the case adopts hinge structure,which is easy to maintain and operate.3.Adopted semi-hermetic piston compressorswith BITZER or FRASCOLD to meet the applica-tion of medium temperature and low tempera-ture respectively.4.Adopted U-type condenser, it has large wind-ward side, small wind resistance and goodheat transfer effect.5.It can meet the requirements of R22, R404A,R507A, R448A, R449A and other refrigerants. Bitzer Condensing Unit Data: Power Supply 380V 50Hz 3phase Apply Temp. -10 to 5 degree Compressor Model 4FES-5Y Compressor Max.I(A) 10.8 Fan Voltage (V) 380V 50Hz 3phase Fan Current (A) 1.1 Rev.(r/min)1380 Suction Line (mm) 22 Liquid Line （mm） 12.7 Size length (mm) 1320 Size Width (mm) 655 Size Height (mm) 1065
7.5m³ Volume Fish Water Chiller Product description: PU series vertical box-type condension units have the following characteristics1. The product adopts vertical box-type structure, fan side installation, effectively prevent dust, rain water and Soon into the cabinet;2. High air duct design, low noise, beautiful appearance;3. The cover of the case adopts hinge structure, which is easy to maintain and operate;4. Compressor uses Emerson ZB and ZFI series scroll compressor or Bitzer semi-hermetic compressor to meet theapplication of medium tem perature and low temperature;5. Adopt U-type condenser, it has large windward side, small wind resistance and good heat transfer effect;6. It can meet the requirements of R22, R404A, R507A, R448A, R449A and other refrigerants.HX Series Seafood Chiller data: Power Supply 220V 50Hz 1phaseApply Water Temp. 5 to 26 ℃Model HX300TApply Water Volume(m³） 2.5-7.5 Input Power(KW) 4.4 Nominal Capacity(KW)14.4 Size length (mm) 980 Size Width (mm) 530 Size Height (mm) 1250
ZB38KQE Compressor For Condensing UnitProduct description:BUW-B series box-type condensing units have the following characteristics1.Products adopt horizontal box- type structure,high wind circle design, excellent appearance.2.The cover of the case adopts hinge structure,which is easy to maintain and operate.3.Compressor uses Emerson ZB series and ZSIseries with DTC spray & ZFI series with EVIscroll compressor to meet the application ofmedium temperature and low temperaturerespectively.4.Adopt U-type condenser, it has large windwardside, small wind resistance and good heat transfer effect.5.Adopt U-type condenser, it has large windwardside，small wind resistance and good heattransfer effect. Copeland ZB38KQE Condensing Unit Catalogue: Power Supply 380V 50Hz 3phase Apply Temp. -10 to 5 degree Compressor Model ZB38KQE Compressor Max.I(A) 13.5 Fan Voltage (V) 380V 50Hz 3phase Fan Current (A) 1 Rev.(r/min)910 Suction Line (mm) 19 Liquid Line （mm） 12.7 Size length (mm) 1040 Size Width (mm) 570 Size Height (mm) 1100
XMK-133 3/8 vertical Liquid Receiver Refrigeration The liquid receiver acts as a stock of liquid refrigerant for the evaporators, located after the condenser in a refrigeration system.The selection of receiver size should be based on refrigerant charge in the system, and it also should be sized to hold the full system charge during service work, the capacity of each liquid receiver listed on Technical data sheet below.ModelConnector sizeXMK-1333/8XMK-2333/8XMK-3333/8XMK-4441/2XMK-6441/2XMK-8441/2XMK-10555/8XMK-12555/8XMK-14555/8Production Introduction:1.Designed for refrigerant storage in system’s normal operation or maintaining.2.System adjustment is allowed to suit with different condition or loading.3.Compatible with HFC, CFC, CFC and associated oils and additives4. Assemble a high quality rotator valve or safety valve.
HC series air cooled condensers are mainly equipped with open-type condensing units with scroll compressor, hemertic & semi-hemertic compressor. This air cooled condensers and compressors can be installed together or separately from compressors. Design of High barrel with Side-mounted structure, with good heat transfer capacity.
