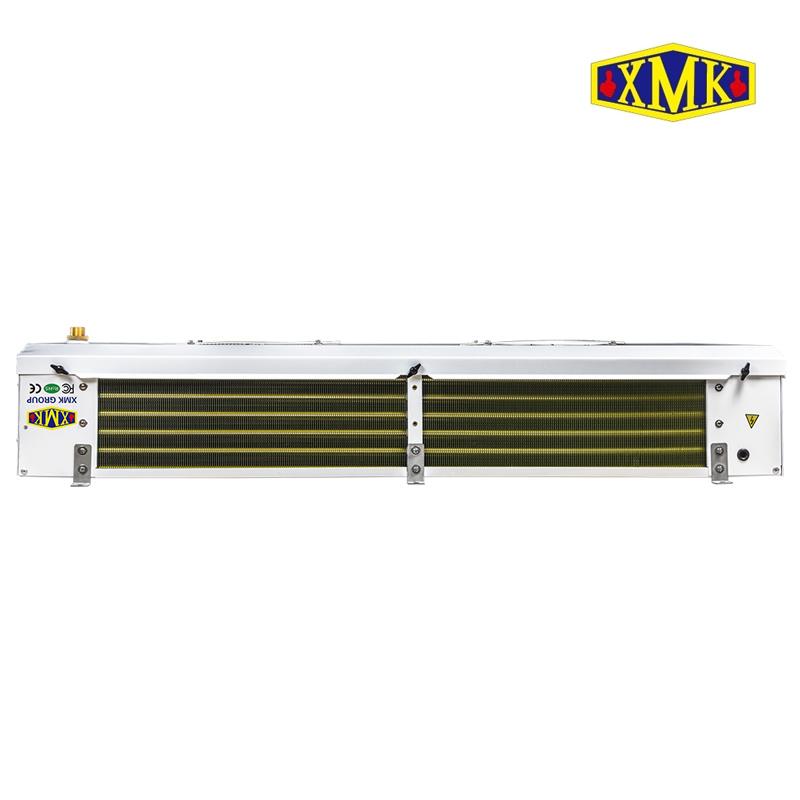

CDB Industrial air cooler for cold storage

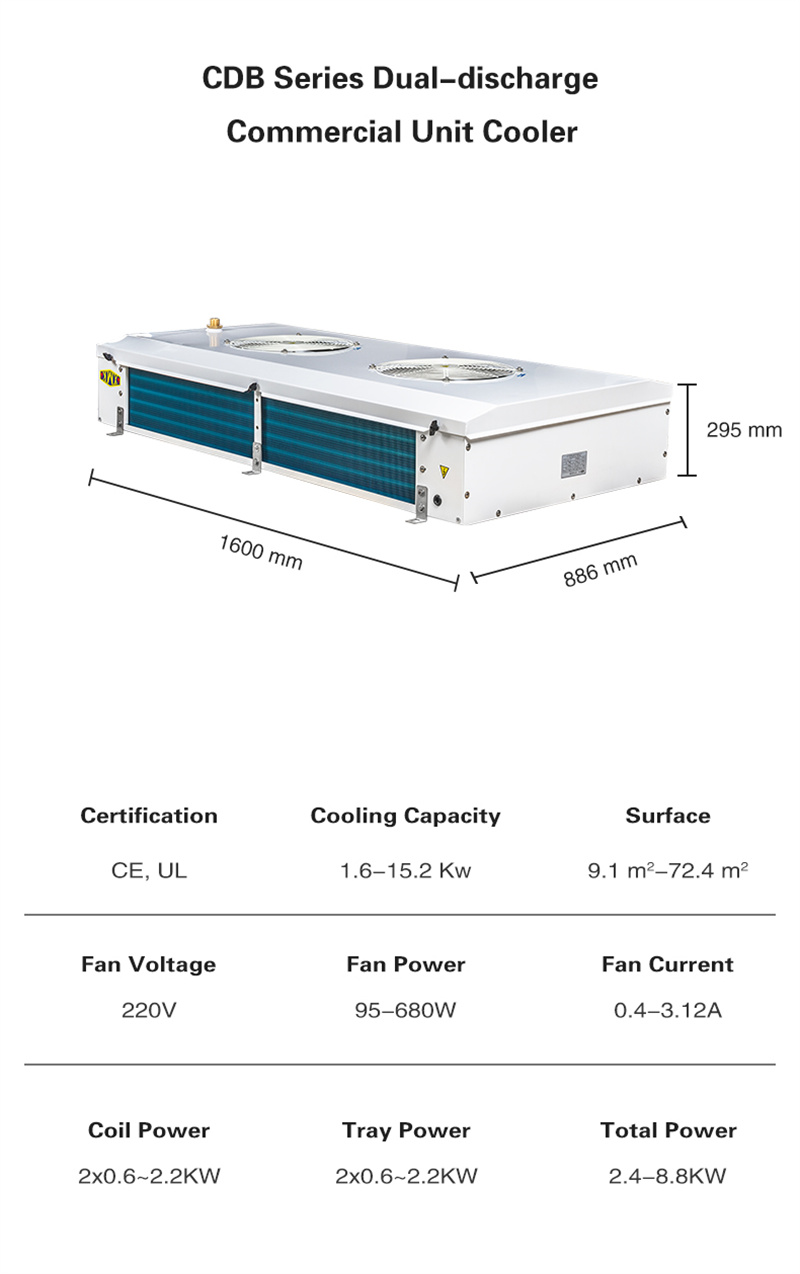

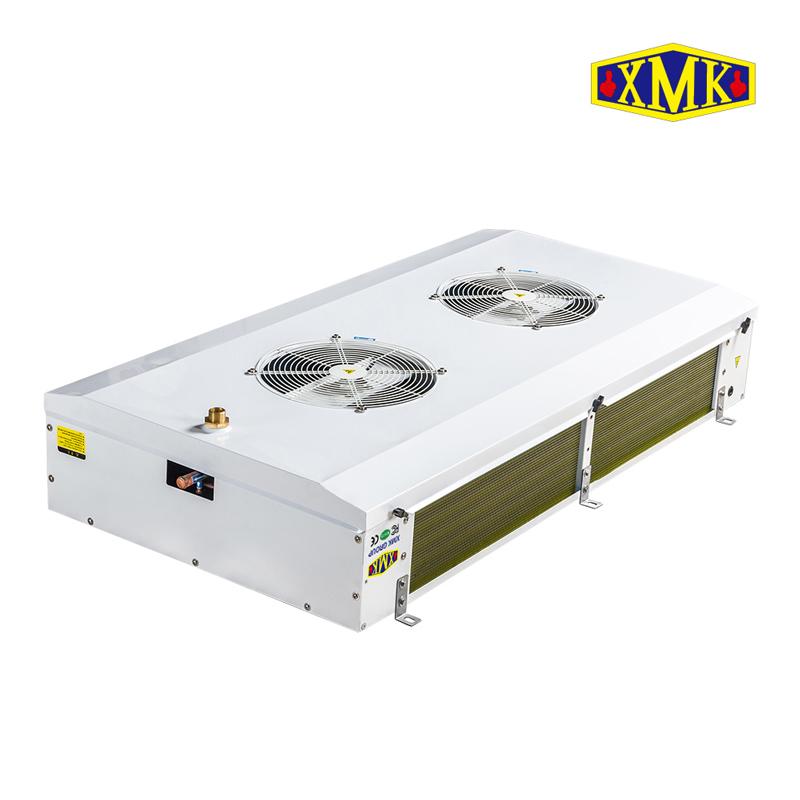

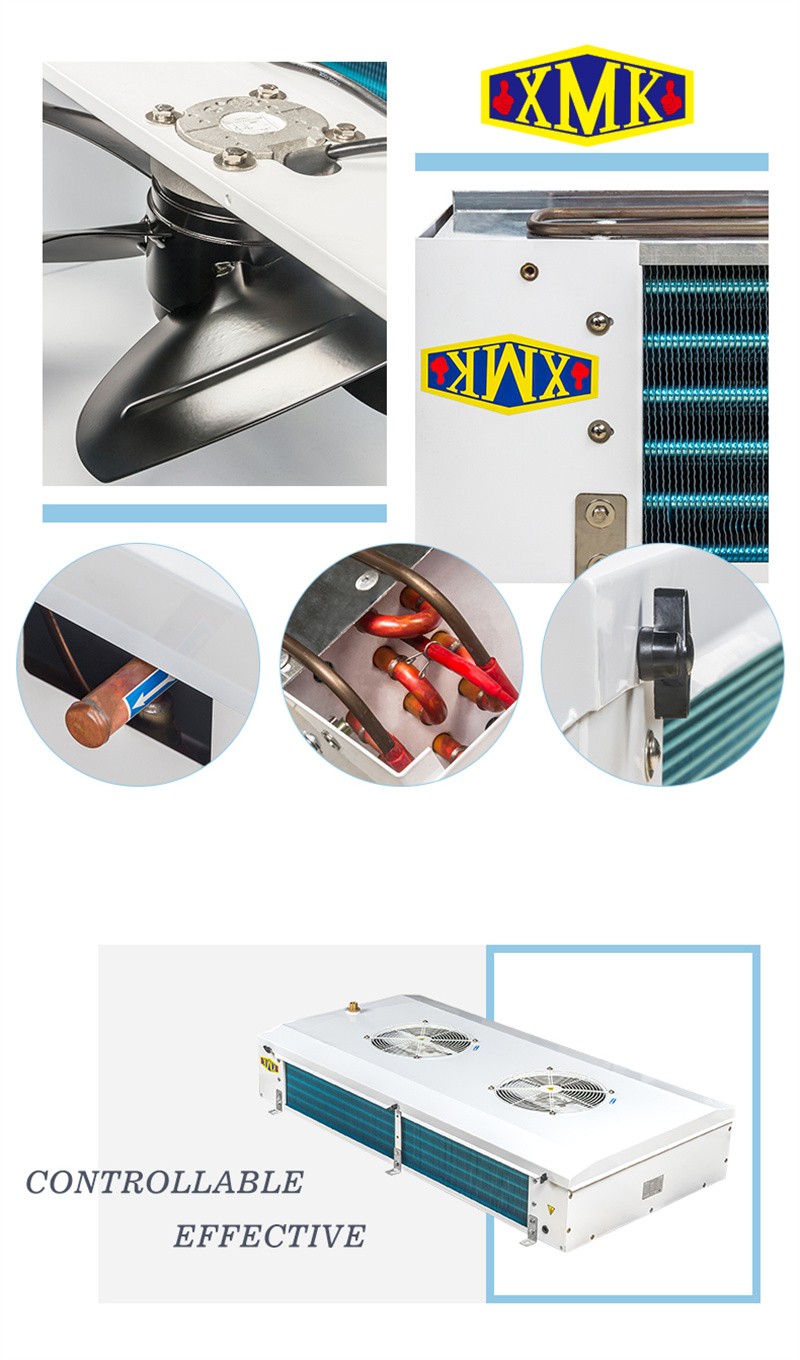

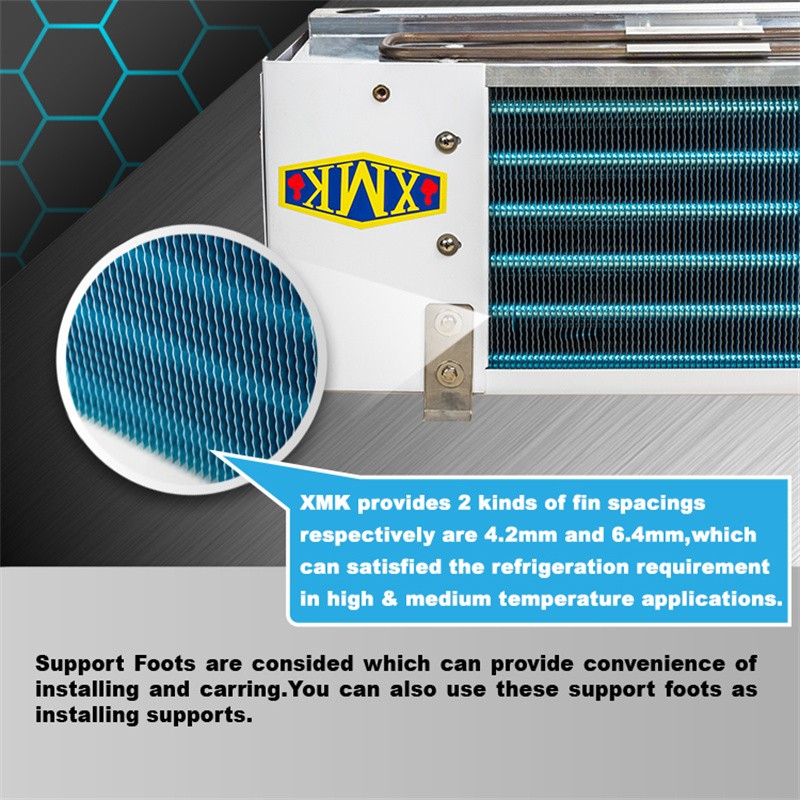

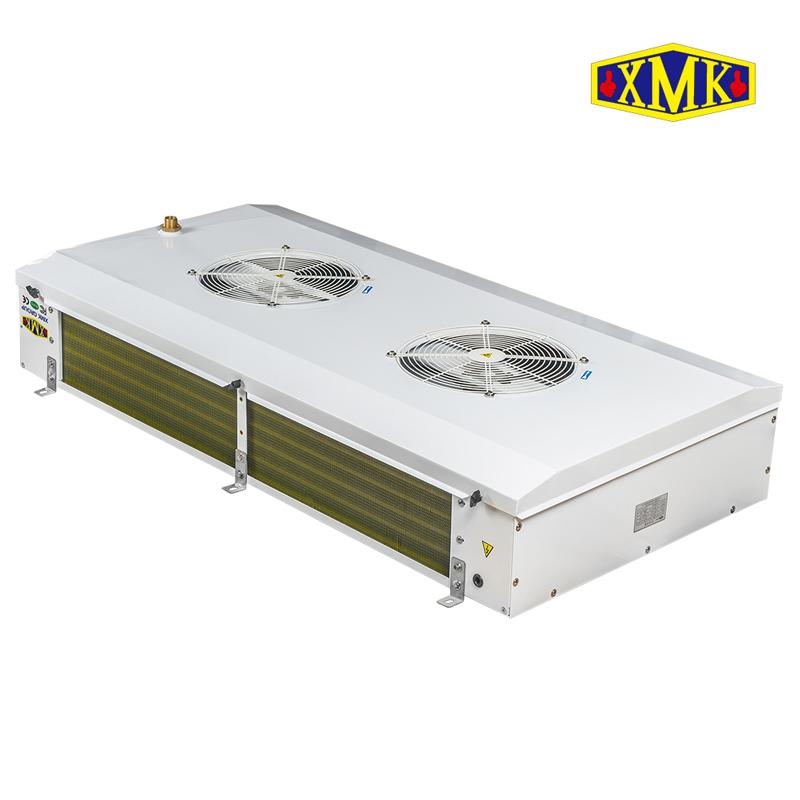

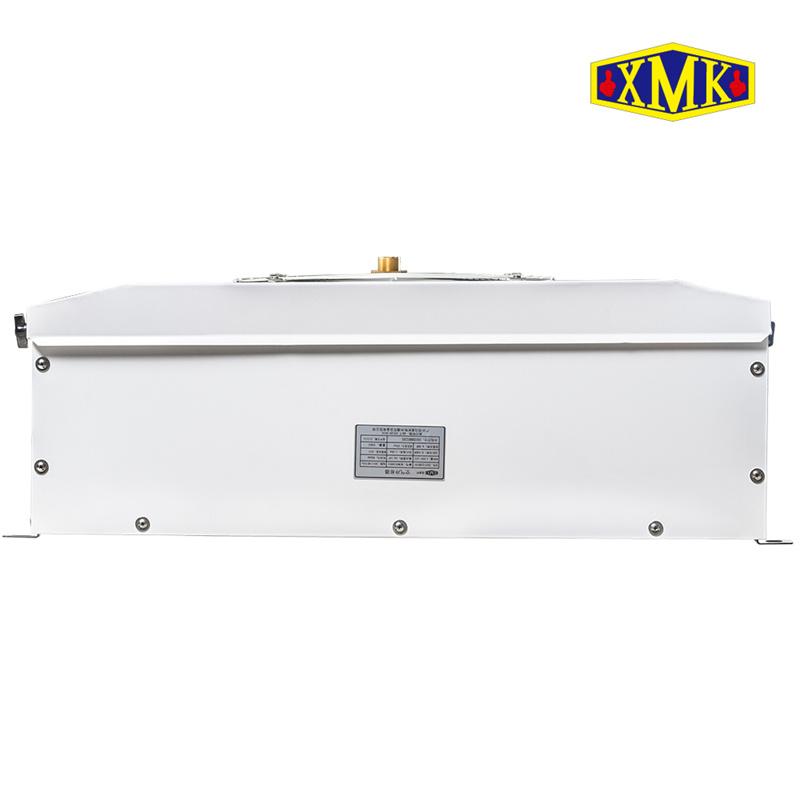

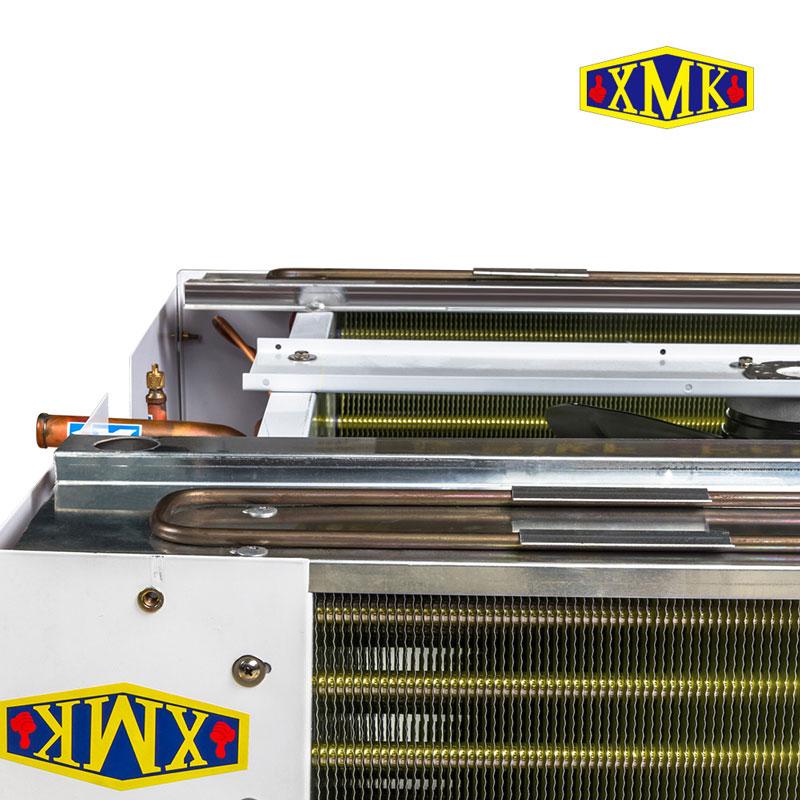

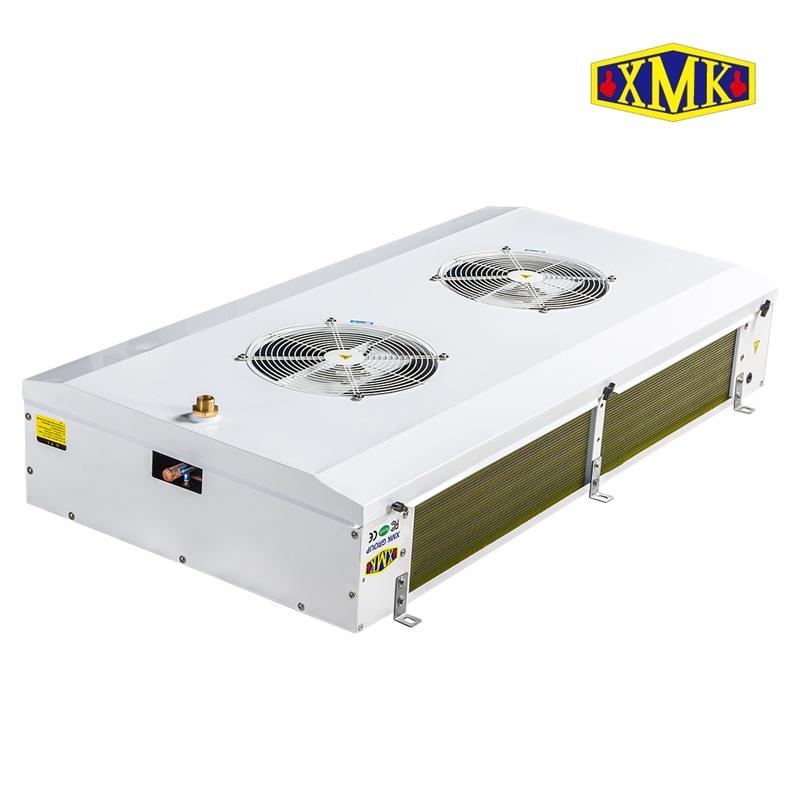

XMK CDB series commericial air cooler is design for small operation handing room as the cooling system evaporator. Dual discharge design to minimize loss from evaporation of water , apply for food's processing room and refrigerated room.  Voltage 220V and accept customization.

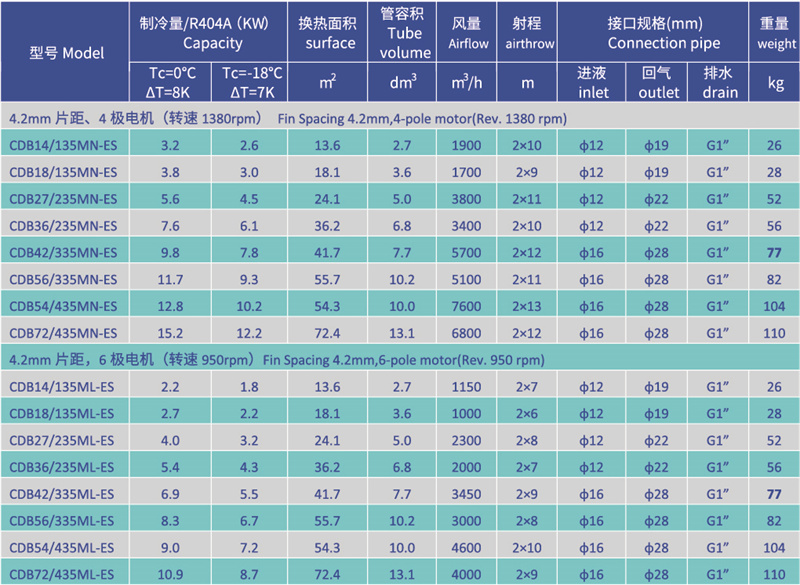

CDB series commercial dual discharge coolers is mainly used in small operating rooms.

The monoblock unit developed bv our company is to design compressor, condenser, evaporator, valves andcontrol systems needed for refrigeration system of refrigeration storage as a whole compact structure, whichcan be directly used for refrigeration of cold room.

XMK-5202 5/8 ODF Oil Separator Refrigeration For Condensing UnitWe oil separator has the great oil-separating capacity.The mixed gaseous refrigerant get into oil separator from compressor,carring oil to get through stainless steel mesh inlet.The oil particles collide and become heavier,impacting on the inwall and intermediate clapboard ultimately.The separated oil drop on the bottom of separator,when them accumulate to a certain amount,the oil will get back to compressor crankcase automatically through the pressure differential  ball float needle valve device.ModelConnector sizeXMK-52011/2 ODFXMK-52025/8 ODFXMK-52037/8 ODFXMK-52041-1/8 ODFXMK-52051-3/8 ODFXMK-62031-3/8 ODFXMK-62041-5/8 ODFXMK-62052-1/8 ODFProduction Introduction:The oil separator should be installed vertically and pre-charge the oil before installing oil separator,the oil should be same as the oil in the compressor crankcase.In the actual piping system,the excessive loads or vibration at the inlet and outlet should be prevented.Oil storage separator must be fixed in the mounting pin connections. Design features:1,Extra length multiayer filter mesh desgin will buffer the mixed gaseous refrigerant greatly.2,The installation of clapboard and spacer palte devide the space into three rooms,improving the efficiency of oil separating greatly.3,In practical application,the vibration of unit might affect ball float installation stability,so the clapboard and spacer plate could reduce the vibration og it.4,Reasonable stainless steel ball float installation desgin remove the crash of ball float and oil return pipe which reduced the noise.5,The installation of magner on the bottom absorb the remaining iron dust in the system helpfully.

Semi-hermetic Compressor Condensing Unit Product description:  XRW series semi-hermetic screw unit is mainly used in cold storage projects with large coolingcapacity requirements1.Adopts Refcomp SW3 series screw compressorwith single unit and parallel unit.2.The series of products include two applicationseries of medium-temperature and low-tem-perature units. The medium-temperature unitmainly meets the requirements of cold storageat about OC, while the low-temperature unitmainly meets the requirements of low-tem-perature refrigeration storage at -20C andquick-frozen storage at -35C.3.The standard design of the unit adopts theform of water cooling, adopts high efficientshell and tube type water cooling condenser,and is equipped with a separate liquid receiver.4.The low temperature unit is equipped with aneconomizer system and an oil cooler system.5.The unit is controlled by Siemens PLC and thekey electrical components are controlled bySchneider. With compressor start and stop,energy regulation, oil cooling system, econo-mizer system, cooling water pump and coolingtower fan control and various protection functions.6.The unit standard uses R404A or R507A refrigerant.Refcomp Condensing Unit Data: Power Supply  380V 50Hz 3phase Apply Temp. -5 to 5 degree Compressor Model SW3H6000 Compressor Max.I(A) 105 Capacity(-5℃） 120Capacity(-10℃） 98.2Capacity(-15℃） 79.7 Suction Line (mm) 28 Liquid Line （mm） DN50 Size length (mm) 1650 Size Width (mm) 1000 Size Height (mm) 1520

Middle temperature Cold Storage Evaporators with 630mm axial fan(two), can be used for the -18C~-25C  cold storage

MLZ015 Danfoss Condensing Unit Scroll Compressor Box TypeProduct description:GU series box-type scroll condensing units have the following characteristics.1.This series of products is mainly developed forcold storage applications.2.The unit adopts Danfoss or Emerson fixedfrequency scroll compressor.3.Air conditioning type case is adopted ,Adopted6-pole low speed and low noise fan. It is verysuitable for residential area.4.It can meet the requirements of R404A, R507A,R448A, R449A and other refrigerants.Danfoss MLZ015 Condensing Unit Catalogue: Power Supply  380V 50Hz 3phase Apply Temp. -18 to 5 degree Compressor Model MLZ015 Compressor Max.I(A) 7 Fan Voltage (V) 220V 50Hz single phase Fan Current (A) 0.68 Rev.(r/min)820 Suction Line (mm) 19 Liquid Line （mm） 12.7Weight71Noise dBA60

S12-42Y Refrigeration Unit Frascold Condensing Unit For Cold Room Product description:  OUBS series water-cool condensing units have the following characteristics1.Adopted semi-hermetic piston compressorswith BITZER or FRASCOLD ,It has good qualityand high reliability.2.Adopted high efficiency shell-tube type watercondenser with good cooling effect and lowcondensation temperature.3.The condenser, compressor and various accessories are installed on an integral frame,which is compact in structure and convenientin operation and maintenance.4.The product series is complete, suitable for awide range of temperatures. It has medium，low temperature and quick frozen workingconditions design. It can meet the needs ofrefrigeration equipment at various tempera-tures;temperatures.5.It can meet the requirements of R22, R404A,R507A, R448A, R449A and other refrigerants.Cooling Water Condensing Unit data: Power Supply  380V 50Hz 3phase Apply Temp. -5 to -5 degree Compressor Model S12-42Y Compressor Max.I(A) 22.4Capacity(KW) -5℃ 27.2Capacity(KW) -10℃22.6Capacity(KW) -15℃ 18.5 Suction Line (mm) 35 Liquid Line （mm） 22 Size length (mm) 1397 Size Width (mm) 556 Size Height (mm) 807

DE series air cooler are mainly used in refrigerators as evaporators.
