ZB15KQE Copeland ZB Scroll Compressor Box TypeProduct description:GU series box-type scroll condensing units have the following characteristics.1.This series of products is mainly developed forcold storage applications.2.The unit adopts Danfoss or Emerson fixedfrequency scroll compressor.3.Air conditioning type case is adopted ,Adopted6-pole low speed and low noise fan. It is verysuitable for residential area.4.It can meet the requirements of R404A, R507A,R448A, R449A and other refrigerants. Copeland ZB15KQE Condensing Unit Catalogue: Power Supply 380V 50Hz 3phase Apply Temp. -15 to 5 degree Compressor Model ZB15KQE Compressor Max.I(A) 6 Fan Voltage (V) 220V 50Hz single phase Fan Current (A) 0.68 Rev.(r/min)820 Suction Line (mm) 19 Liquid Line （mm） 12.7Weight63Noise dBA655
ZB38KQE Compressor For Condensing Unit Product description: BUW-B series box-type condensing units have the following characteristics 1.Products adopt horizontal box- type structure,high wind circle design, excellent appearance. 2.The cover of the case adopts hinge structure,which is easy to maintain and operate. 3.Compressor uses Emerson ZB series and ZSIseries with DTC spray & ZFI series with EVIscroll compressor to meet the application ofmedium temperature and low temperaturerespectively. 4.Adopt U-type condenser, it has large windwardside, small wind resistance and good heat transfer effect. 5.Adopt U-type condenser, it has large windwardside，small wind resistance and good heattransfer effect. Copeland ZB38KQE Condensing Unit Catalogue: Power Supply 380V 50Hz 3phase Apply Temp. -10 to 5 degree Compressor Model ZB38KQE Compressor Max.I(A) 13.5 Fan Voltage (V) 380V 50Hz 3phase Fan Current (A) 1.1 Rev.(r/min) 1380 Suction Line (mm) 19 Liquid Line （mm） 12.7 Size length (mm) 1320 Size Width (mm) 655 Size Height (mm) 1065
MTZ50 Danfoss Open Compressor Condensing Unit Product description: 1.HCU series open-type air-cool condensing units have the following characteristics.Adopted semi-hermetic piston compressors with DANFOSS or FRASCOLD, It has good quality and high reliability. 2.The air-cooled condenser, compressor and various accessories are installed on an integral frame, which is compact in structure and convenient in operation and maintenance. 3.Adopted high duct condenser with external rotor fan , which has low noise and high efficiency. 4.The product series is complete, It has high,medium, low temperature and quick frozen working conditions design. It can meet the needs of refrigeration equipment at various temperatures. 5.It can meet the requirements of R22, R404A,R507A, R448A, R449A and other refrigerants. Danfoss MTZ50 Condensing Unit Catalogue: Power Supply 380V 50Hz 3phase Apply Temp. 5 to 15 degree Compressor Model MTZ50 Compressor Max.I(A) 10 Fan Voltage (V) 380V 50Hz 3phase Fan Current (A) 1.04 Fan Power (W) 240X2 Suction Line (mm) 22 Liquid Line （mm） 12 Size length (mm) 1435 Size Width (mm) 850 Size Height (mm) 830
ZB38KQE Compressor For Condensing UnitProduct description:BUW-B series box-type condensing units have the following characteristics1.Products adopt horizontal box- type structure,high wind circle design, excellent appearance.2.The cover of the case adopts hinge structure,which is easy to maintain and operate.3.Compressor uses Emerson ZB series and ZSIseries with DTC spray & ZFI series with EVIscroll compressor to meet the application ofmedium temperature and low temperaturerespectively.4.Adopt U-type condenser, it has large windwardside, small wind resistance and good heat transfer effect.5.Adopt U-type condenser, it has large windwardside，small wind resistance and good heattransfer effect. Copeland ZB38KQE Condensing Unit Catalogue: Power Supply 380V 50Hz 3phase Apply Temp. -10 to 5 degree Compressor Model ZB38KQE Compressor Max.I(A) 13.5 Fan Voltage (V) 380V 50Hz 3phase Fan Current (A) 1 Rev.(r/min)910 Suction Line (mm) 19 Liquid Line （mm） 12.7 Size length (mm) 1040 Size Width (mm) 570 Size Height (mm) 1100
ZB58KQE R404 Compressor Unit Condensing Unit Copeland Product description: BUW-B series box-type condensing units have the following characteristics 1.Products adopt horizontal box- type structure,high wind circle design, excellent appearance. 2.The cover of the case adopts hinge structure,which is easy to maintain and operate. 3.Compressor uses Emerson ZB series and ZSIseries with DTC spray & ZFI series with EVIscroll compressor to meet the application ofmedium temperature and low temperaturerespectively. 4.Adopt U-type condenser, it has large windwardside, small wind resistance and good heat transfer effect. 5.Adopt U-type condenser, it has large windwardside，small wind resistance and good heattransfer effect. Copeland ZB58KQE Condensing Unit Catalogue: Power Supply 380V 50Hz 3phase Apply Temp. -10 to 5 degree Compressor Model ZB45KQE Compressor Max.I(A) 23 Fan Voltage (V) 380V 50Hz 3phase Fan Current (A) 1.1 Rev.(r/min) 1380 Suction Line (mm) 28 Liquid Line （mm） 16 Size length (mm) 1320 Size Width (mm) 655 Size Height (mm) 1065
Refcomp Screw Semi-hermetic Compressor Condensing Unit Product description: XRW series semi-hermetic screw unit is mainly used in cold storage projects with large coolingcapacity requirements1.Adopts Refcomp SW3 series screw compressorwith single unit and parallel unit.2.The series of products include two applicationseries of medium-temperature and low-tem-perature units. The medium-temperature unitmainly meets the requirements of cold storageat about OC, while the low-temperature unitmainly meets the requirements of low-tem-perature refrigeration storage at -20C andquick-frozen storage at -35C.3.The standard design of the unit adopts theform of water cooling, adopts high efficientshell and tube type water cooling condenser,and is equipped with a separate liquid receiver.4.The low temperature unit is equipped with aneconomizer system and an oil cooler system.5.The unit is controlled by Siemens PLC and thekey electrical components are controlled bySchneider. With compressor start and stop,energy regulation, oil cooling system, econo-mizer system, cooling water pump and coolingtower fan control and various protection functions.6.The unit standard uses R404A or R507A refrigerant. Bitzer 6GE-34Y Condensing Unit Catalogue: Power Supply 380V 50Hz 3phase Apply Temp. -5 to 5 degree Compressor Model SW3H5000 Compressor Max.I(A) 90Capacity(-5℃）102.8Capacity(-10℃）84.2Capacity(-15℃）68.3 Suction Line (mm) 28 Liquid Line （mm） DN50 Size length (mm) 1650 Size Width (mm) 1000 Size Height (mm) 1520
4DES-7Y Bitzer Refrigeration R404 Condenser Unit Product description: 1.HCU series open-type air-cool condensing units have the following characteristics.Adopted semi-hermetic piston compressors with BITZER or FRASCOLD, It has good quality and high reliability. 2.The air-cooled condenser, compressor and various accessories are installed on an integral frame, which is compact in structure and convenient in operation and maintenance. 3.Adopted high duct condenser with external rotor fan , which has low noise and high efficiency. 4.The product series is complete, It has high,medium, low temperature and quick frozen working conditions design. It can meet the needs of refrigeration equipment at various temperatures. 5.It can meet the requirements of R22, R404A,R507A, R448A, R449A and other refrigerants. Bitzer 4DES-7Y Condensing Unit Catalogue: Power Supply 380V 50Hz 3phase Apply Temp. 5 to 15 degree Compressor Model 4DES-7Y Compressor Max.I(A) 16.5 Fan Voltage (V) 380V 50Hz 3phase Fan Current (A) 2.1 Fan Power (W) 240X4 Suction Line (mm) 28 Liquid Line （mm） 16 Size length (mm) 1435 Size Width (mm) 1000 Size Height (mm) 1430

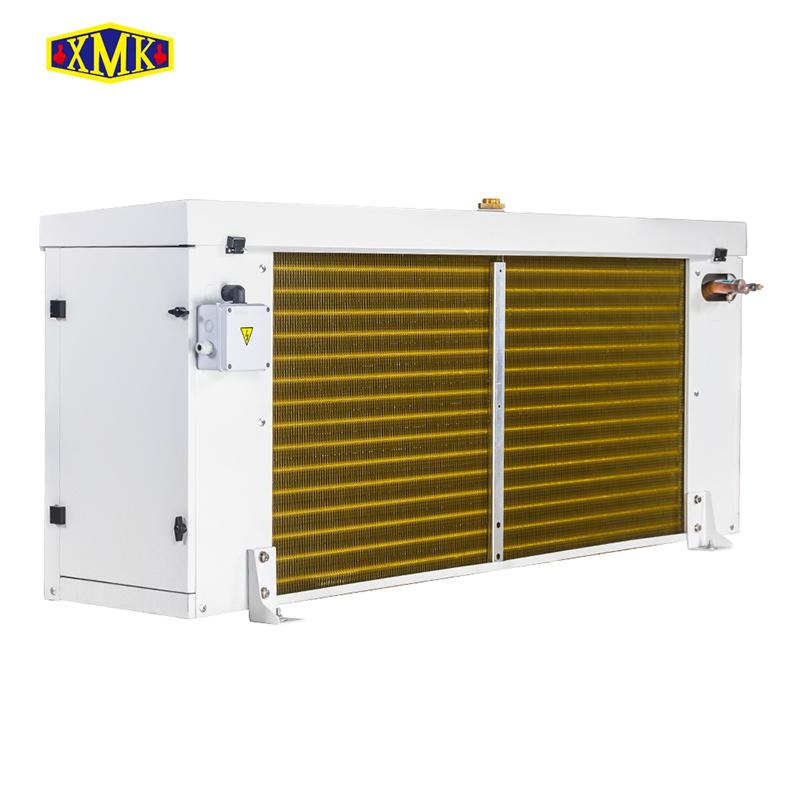

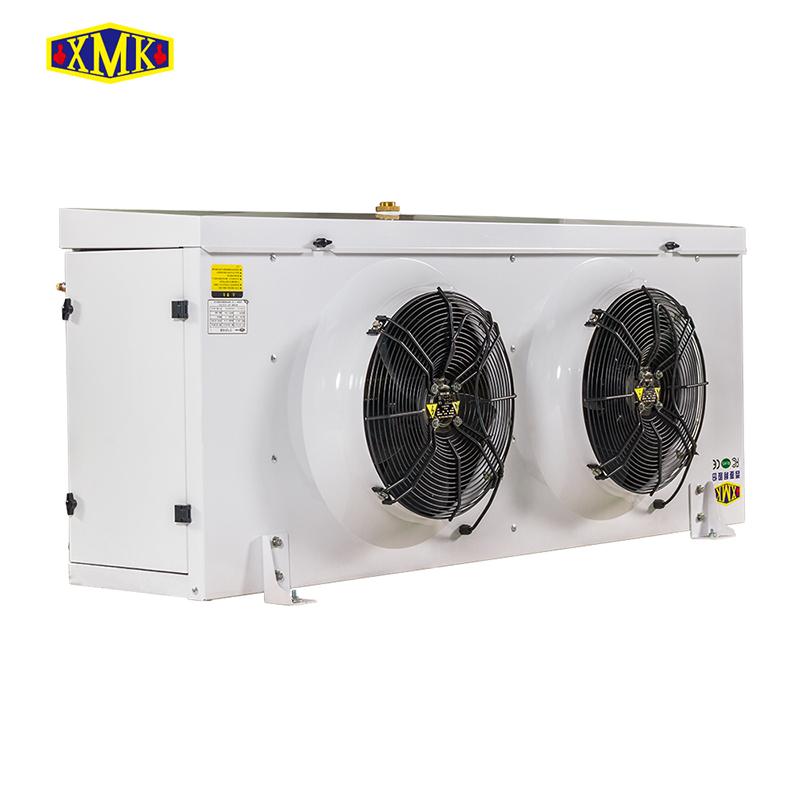

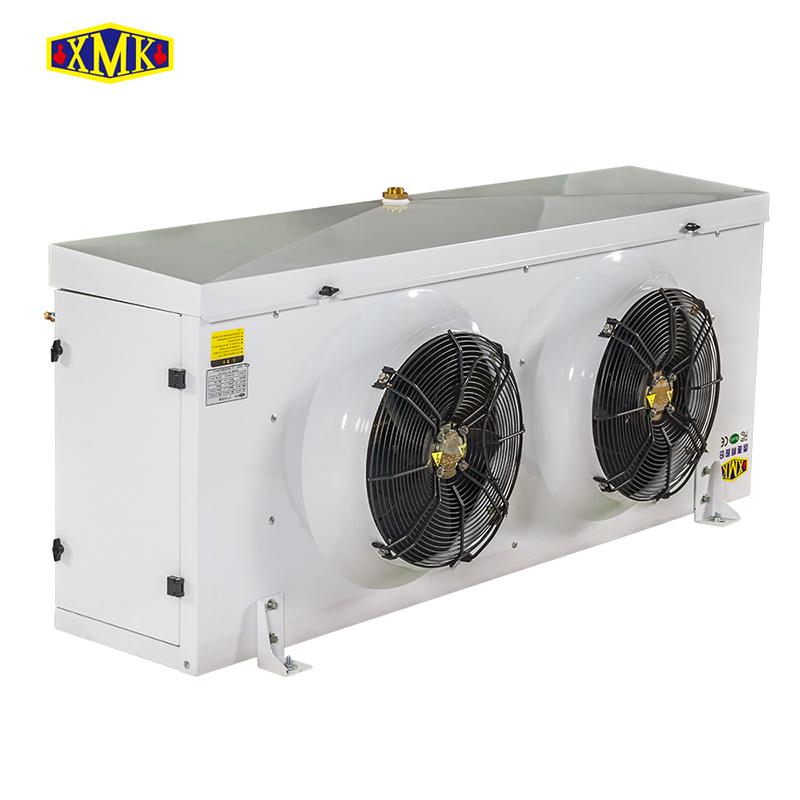

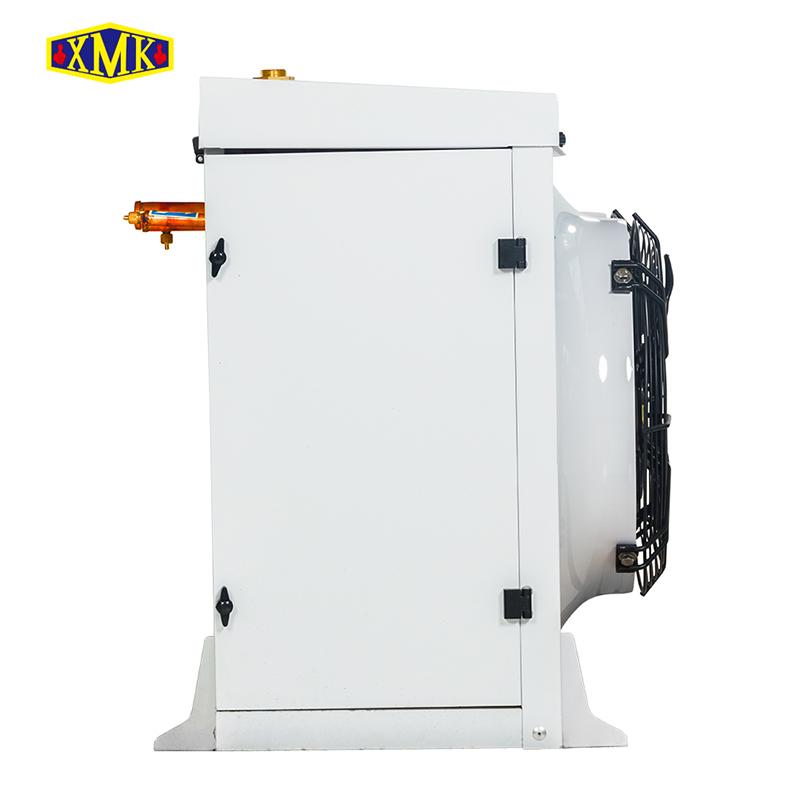

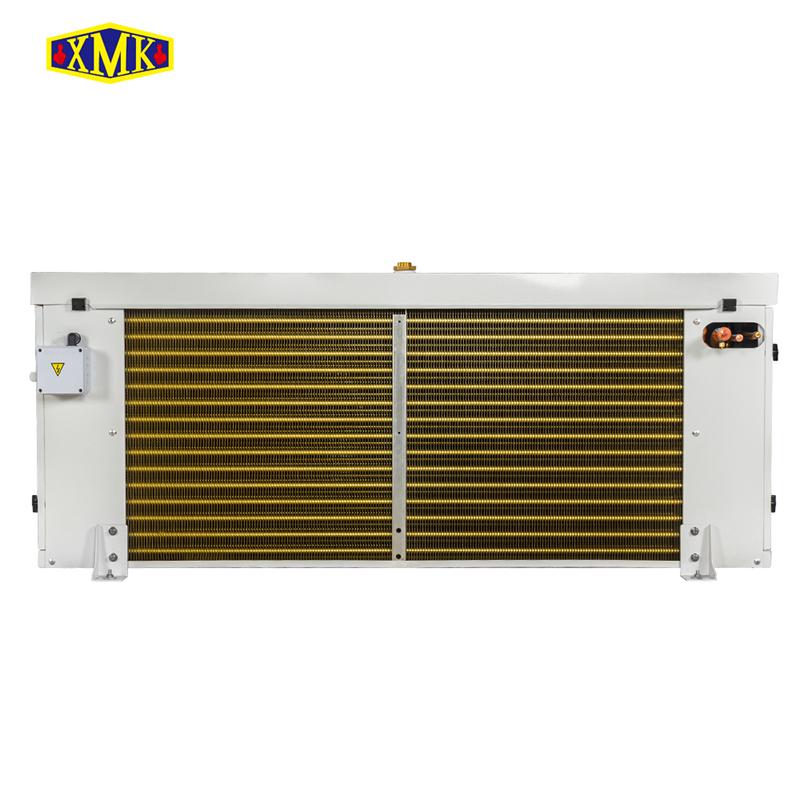

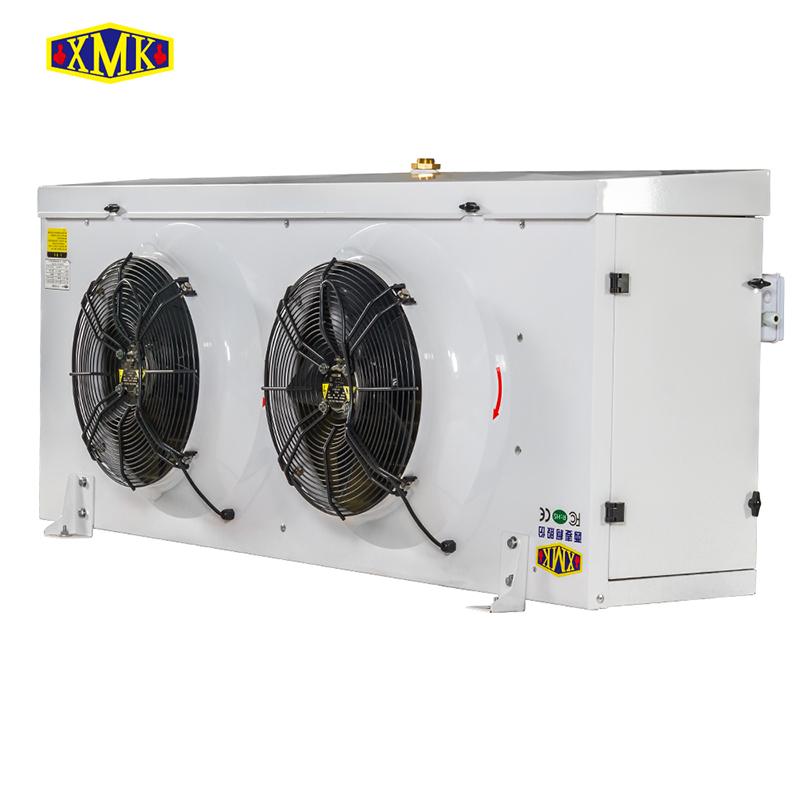

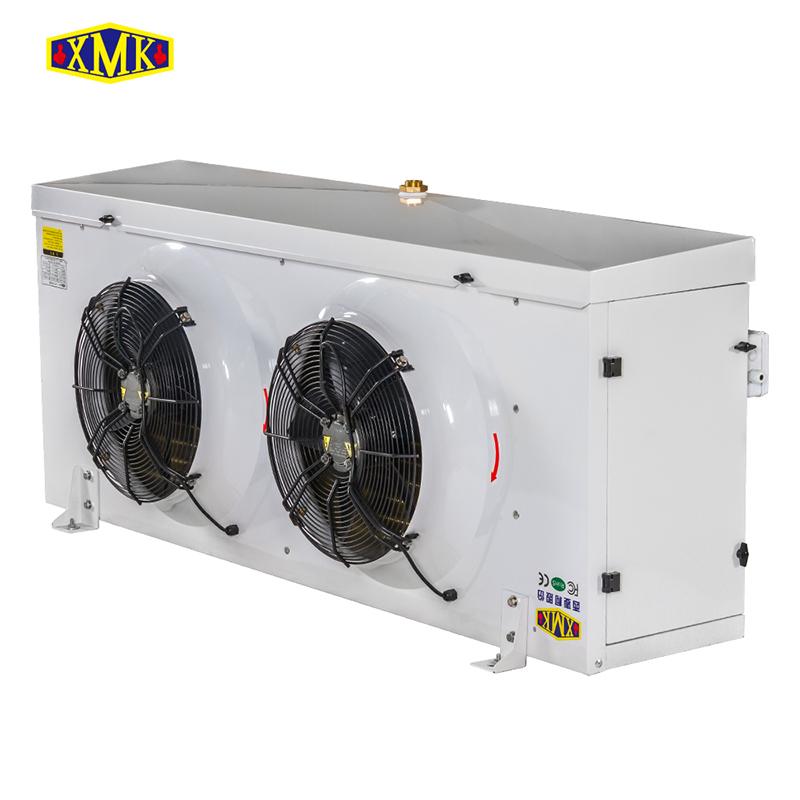

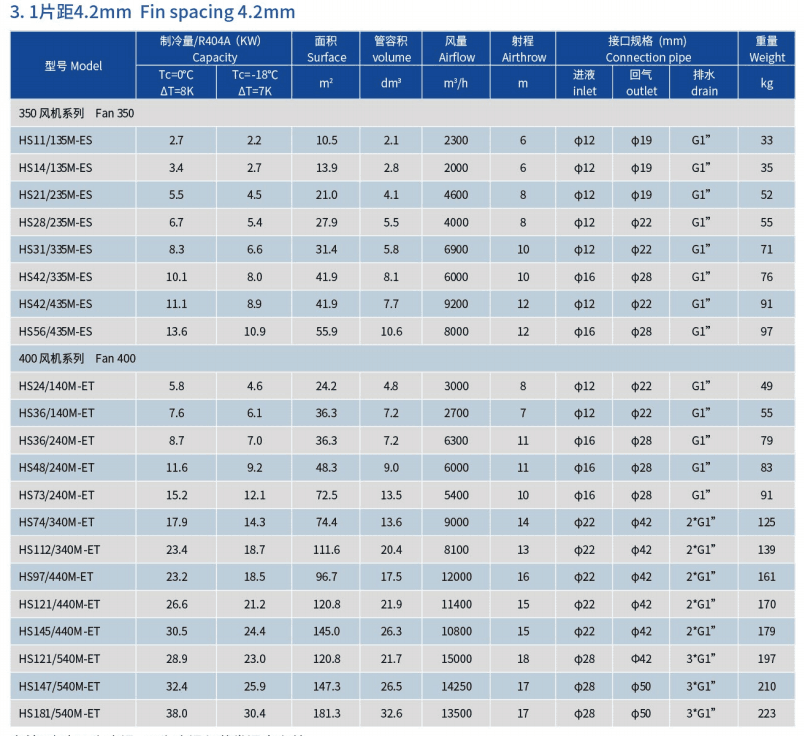

CDB air cooler is install in small handing rooms, labs or larders which has requirements in air-flow directions. Normally fin spacing in 4.2mm with 4-pole or 6-pole motor.
Cold Room Compressor Refrigeration Condensing UnitProduct description:BUW-B series box-type condensing units have the following characteristics1.Products adopt horizontal box- type structure,high wind circle design, excellent appearance.2.The cover of the case adopts hinge structure,which is easy to maintain and operate.3.Compressor uses Emerson ZB series and ZSIseries with DTC spray & ZFI series with EVIscroll compressor to meet the application ofmedium temperature and low temperaturerespectively.4.Adopt U-type condenser, it has large windwardside, small wind resistance and good heat transfer effect.5.Adopt U-type condenser, it has large windwardside，small wind resistance and good heattransfer effect. Copeland ZSI09KQE Condensing Unit Catalogue: Power Supply 380V 50Hz 3phase Apply Temp. -15 to -23 degree Compressor Model ZSI09KQE Compressor Max.I(A) 6.2 Fan Voltage (V) 380V 50Hz 3phase Fan Current (A) 0.5 Rev.(r/min)1380 Suction Line (mm) 19 Liquid Line （mm） 9.5 Size length (mm) 1040 Size Width (mm) 570 Size Height (mm) 700
