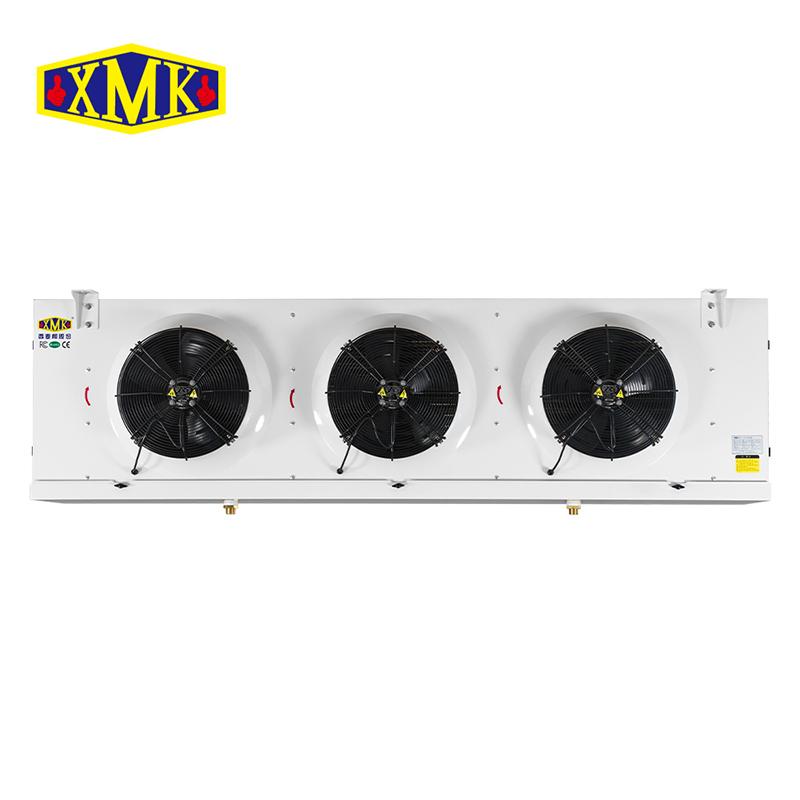

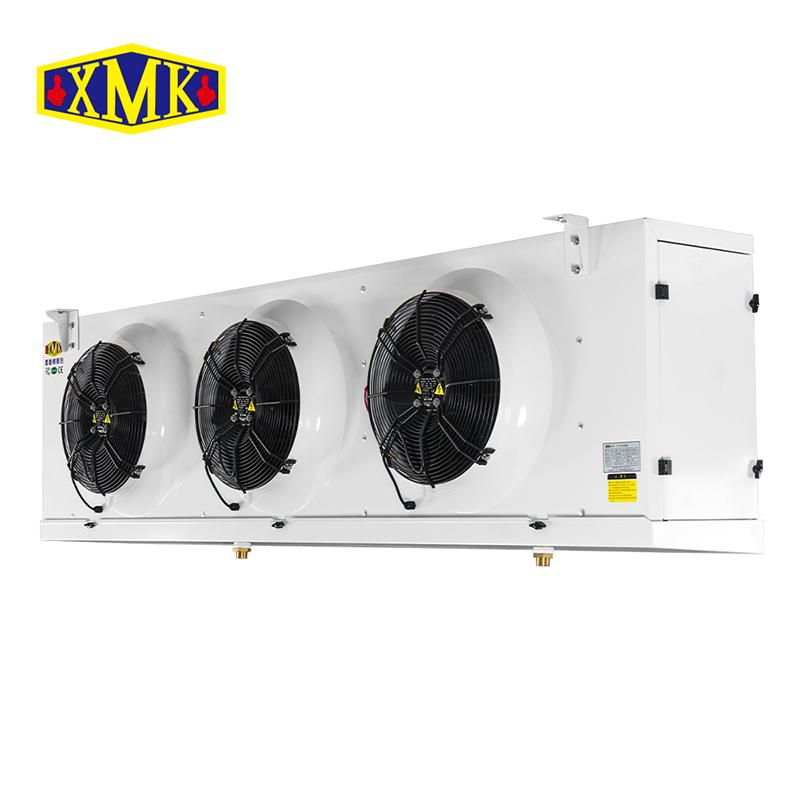

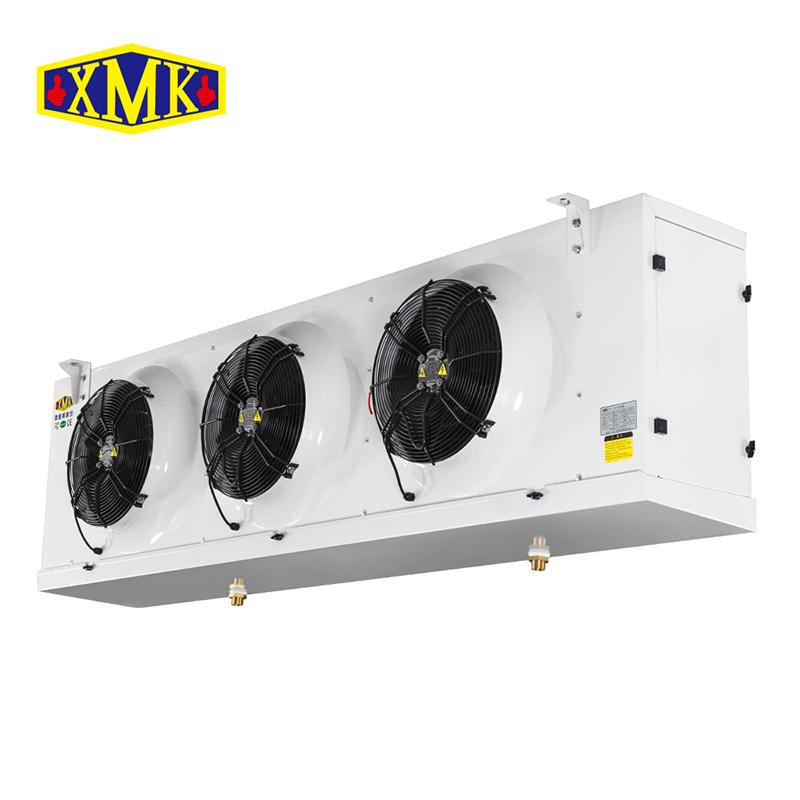

Middle temperature Evaporator's cabinet

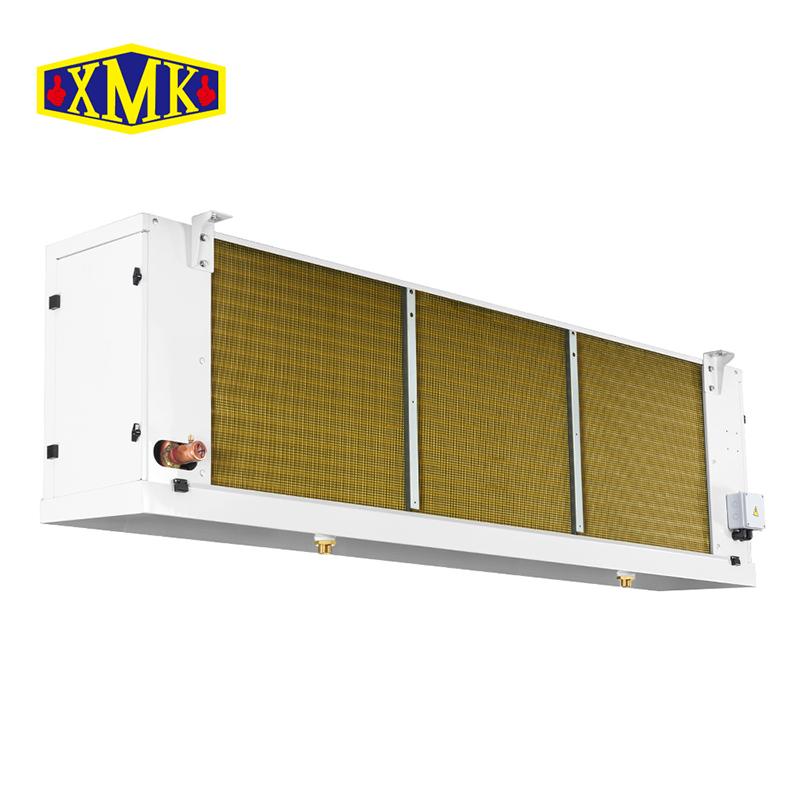

300mm axial fan(three),CS singler blower celling mounted evaporator can be used for the food fresh cold storage and-5~5℃ cold room.

  • Item NO.:

    CS21/CS28-330L
  • Order(MOQ):

    1
  • Payment:

    EXW
  • Product Origin:

    CHINA
  • Color:

    White
  • Shipping Port:

    Guangzhou
  • Lead Time:

    7-35days

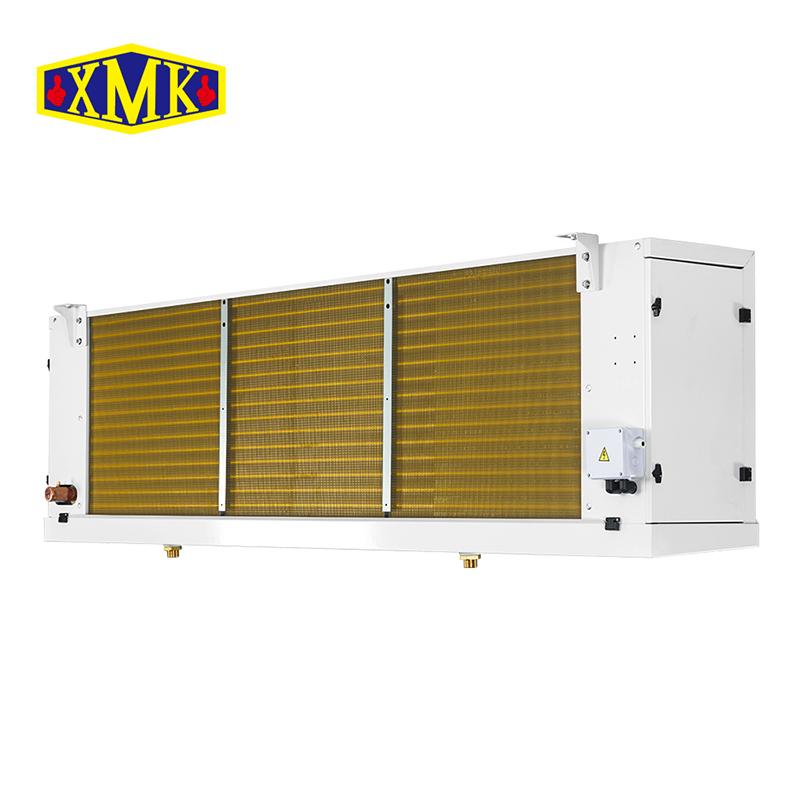

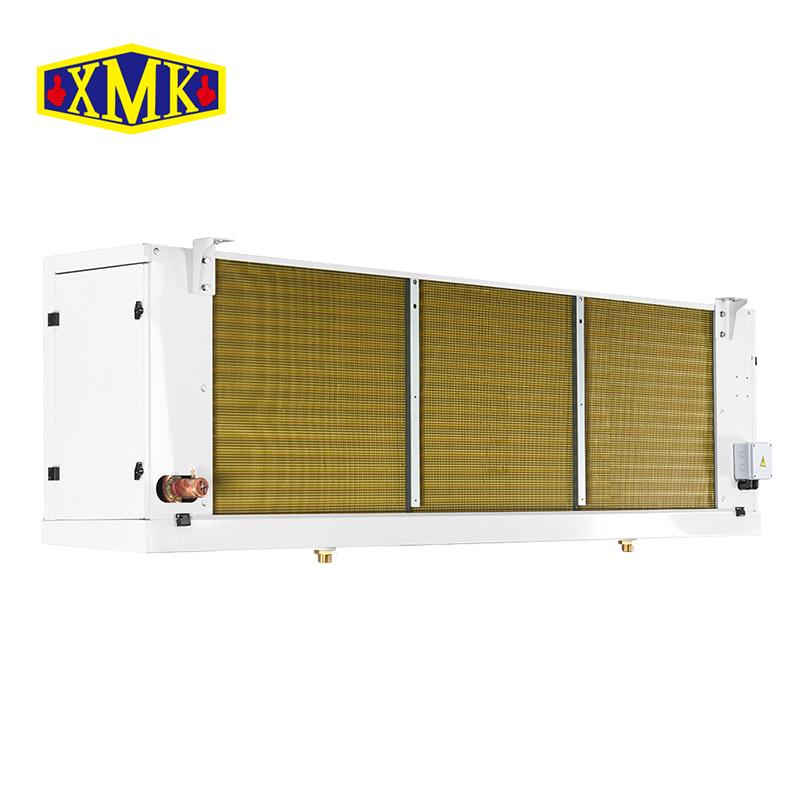

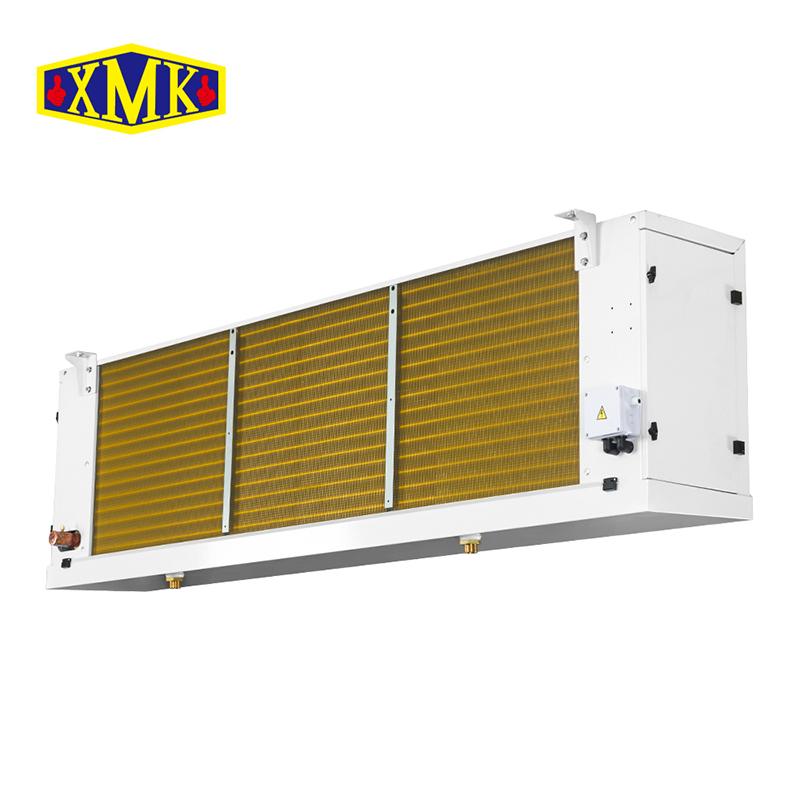

CS series unit cooler which also called ceiling mounted evaporator or air cooler is made of 3* 300mm lose nosie,high air flow axial fan, we also supply multichoice of industrial cold storage refrigeration equipment according your project.



Product Features:

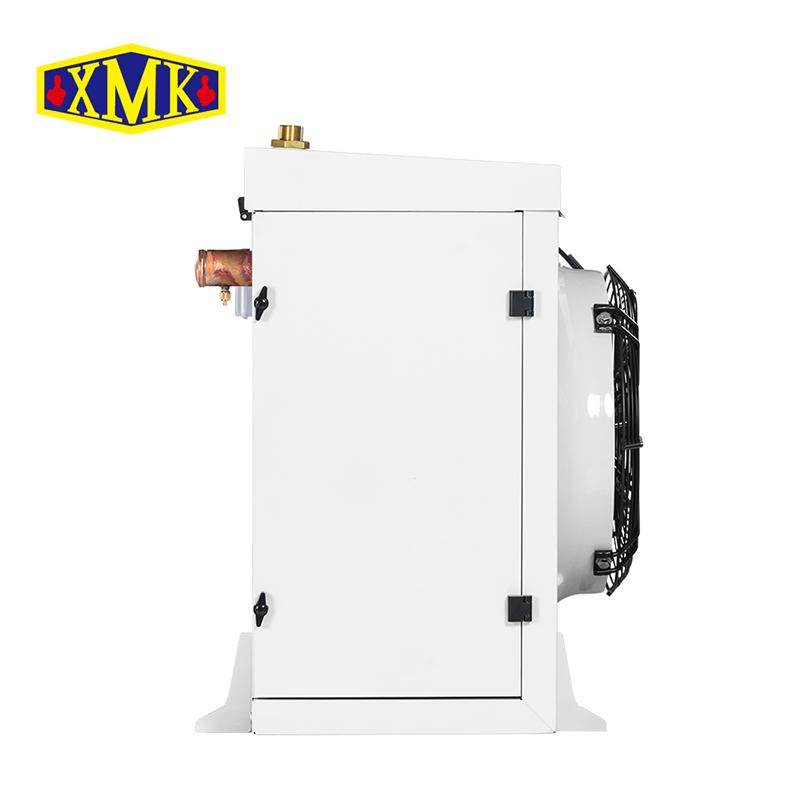

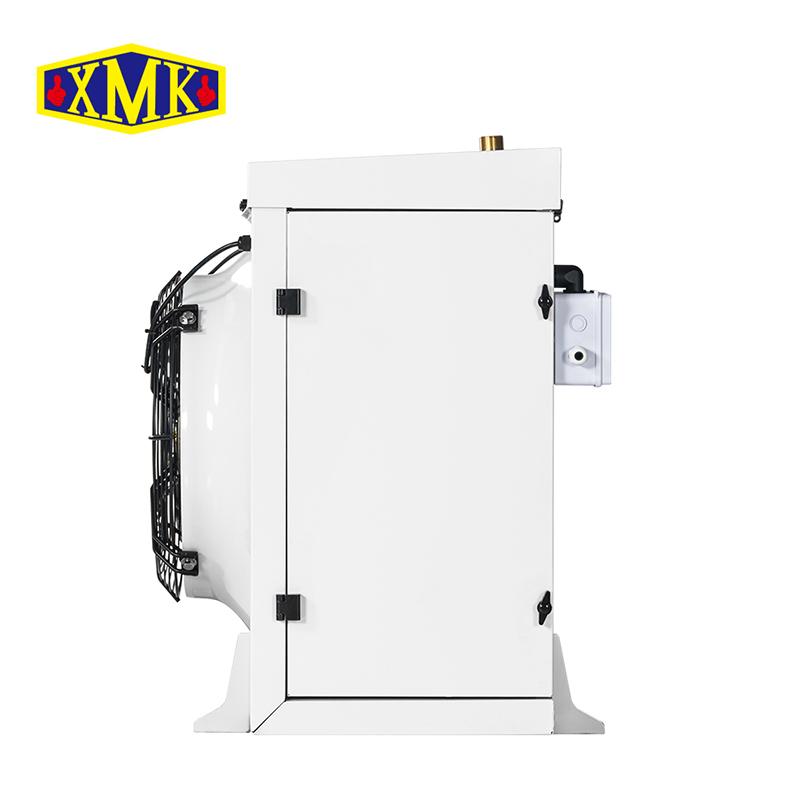

Casing:

Adopt high-quality steel plate with powder coating RAL9003,Hinged structure is adopted for both side plates and external drip tray, which is convenient and quick to operate.

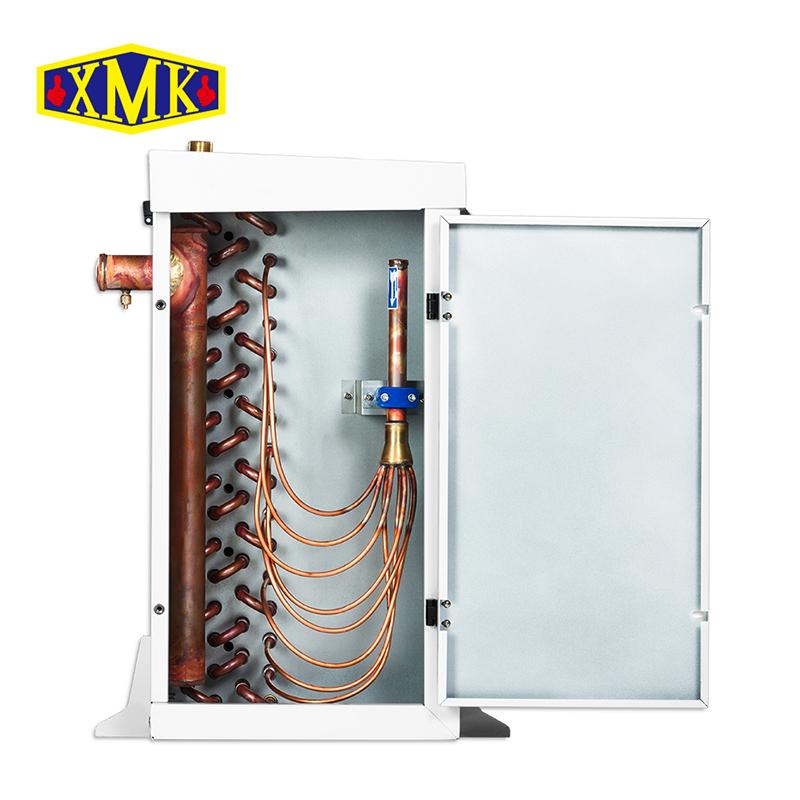

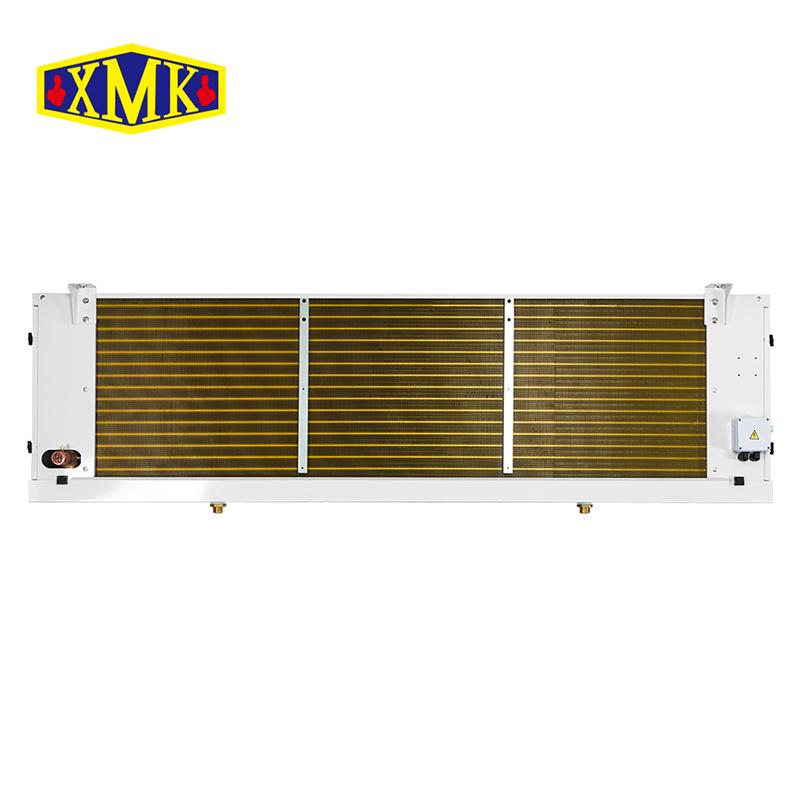

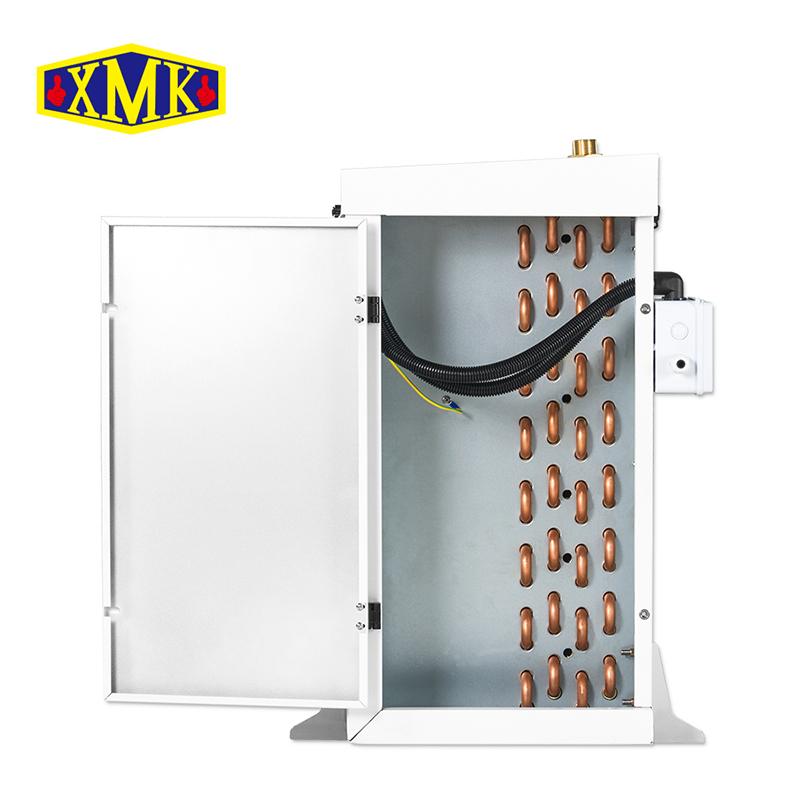

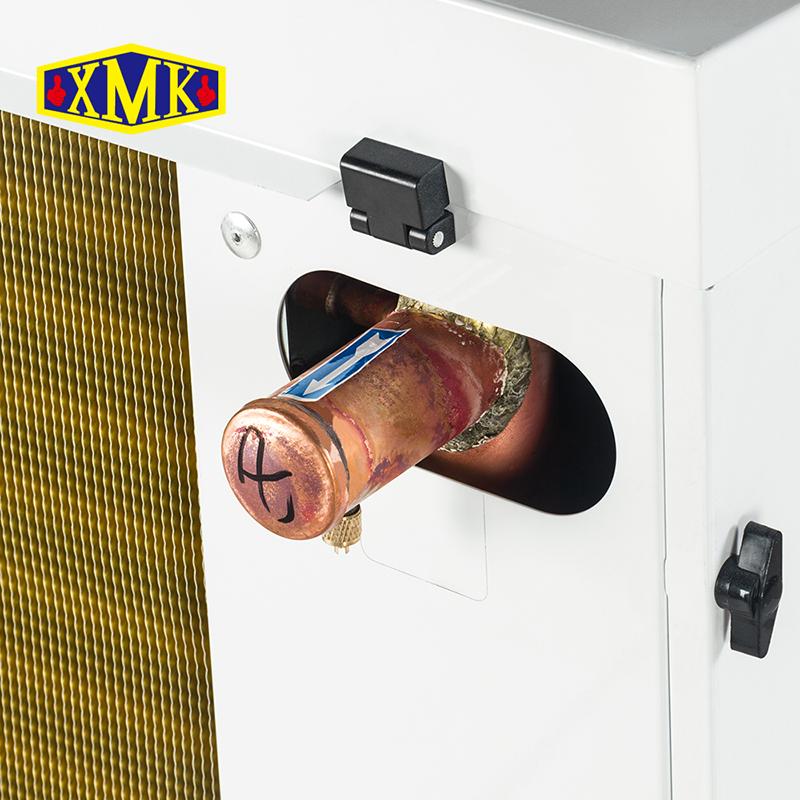

Heat Exchanger Coil:

Copper tubingφ12,spacing 38.1×33 or copper tubingφ15,spacing 50×50,Corrugated aluminiumfins,fin spacing 4.2&6.4& 9.0mm.

3 different fin space of 4.2, 6.4, 9.0mm for customer’s choice to meet different temperature requirement of the room.

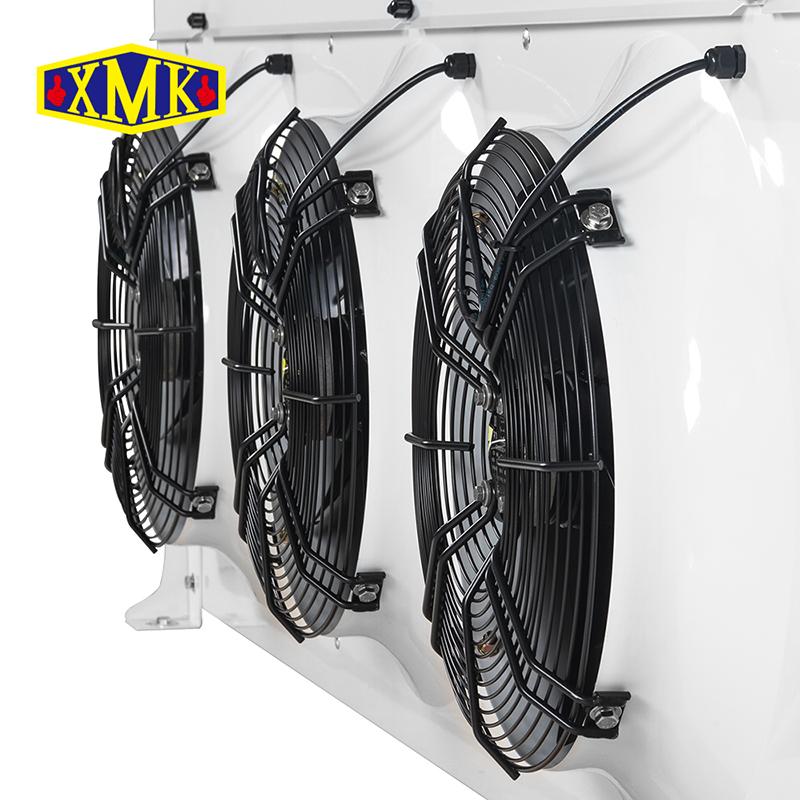

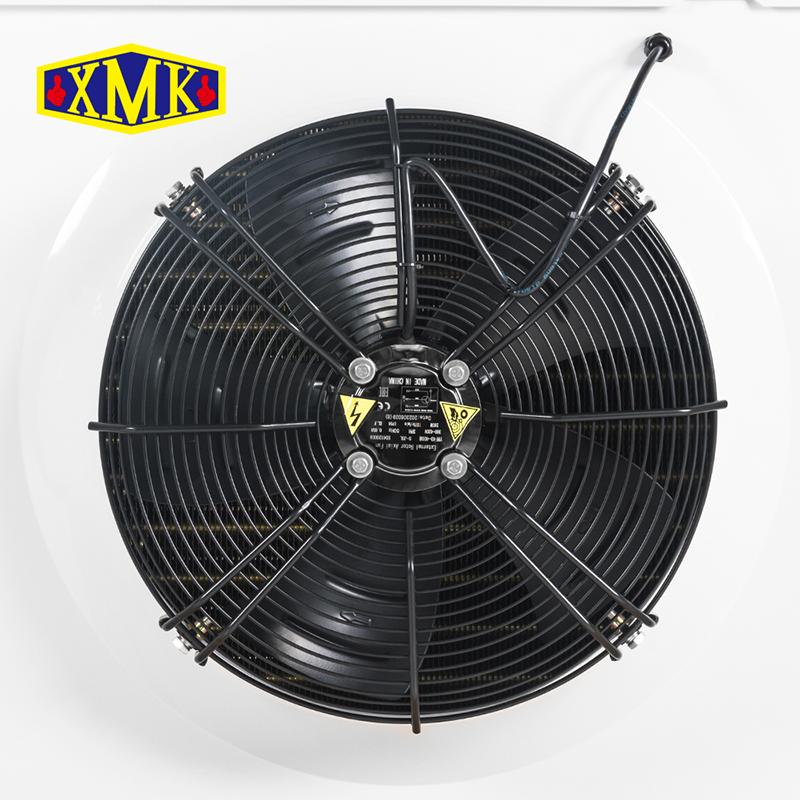

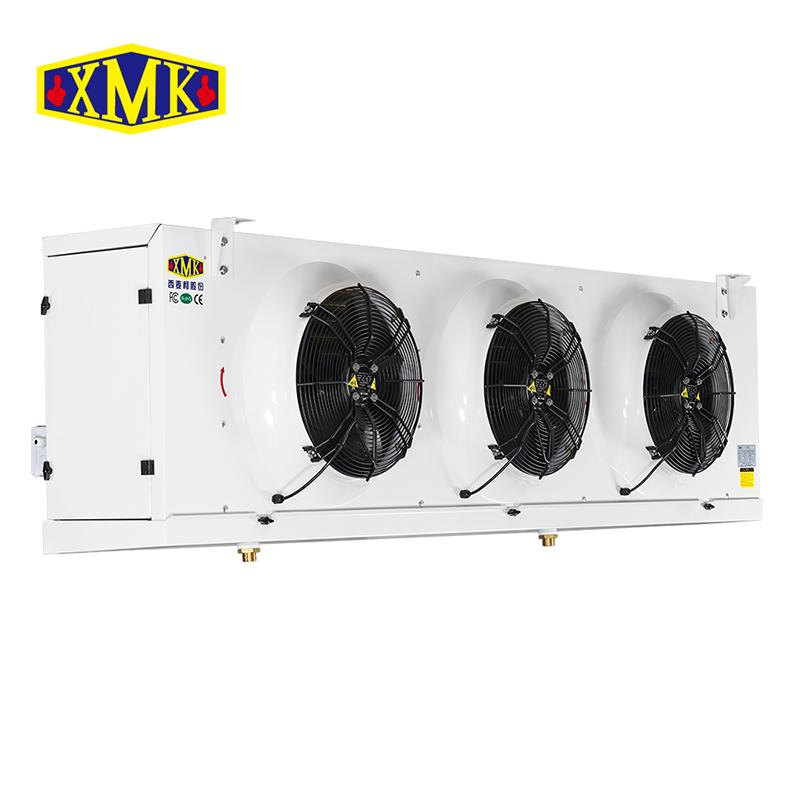

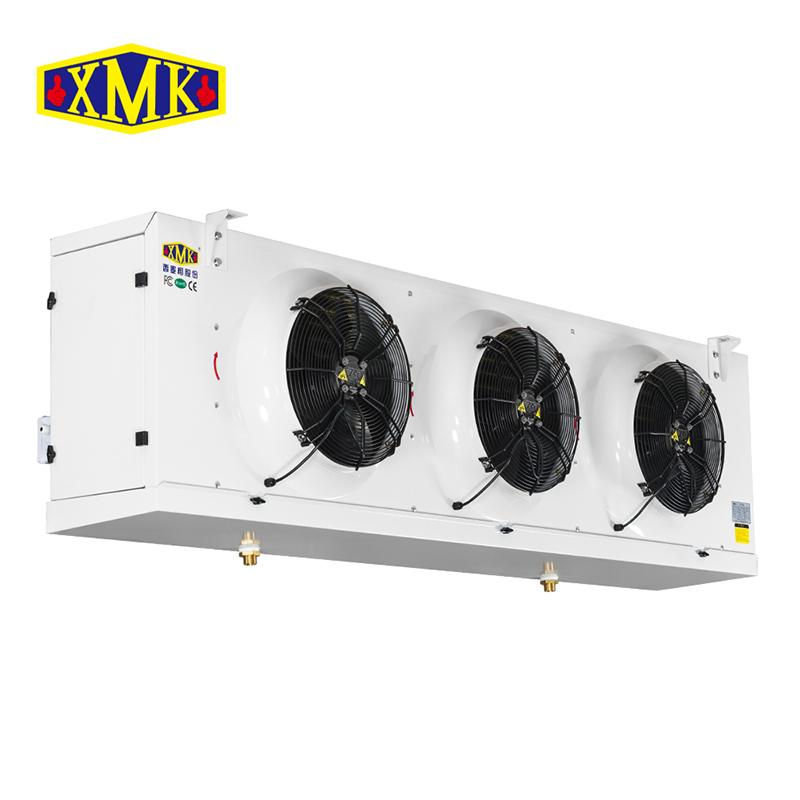

Axial Fans:

External rotor motor with high wind pressure,working ambient temperature -40~60℃, High air duct design with Integral stretching, good ventilation effect, further airthrow, lower noise. Fans individually connected to junction box.Fan bladeφ300,φ400,φ500,φ630,standard 4-pole motor.

Defrosting:

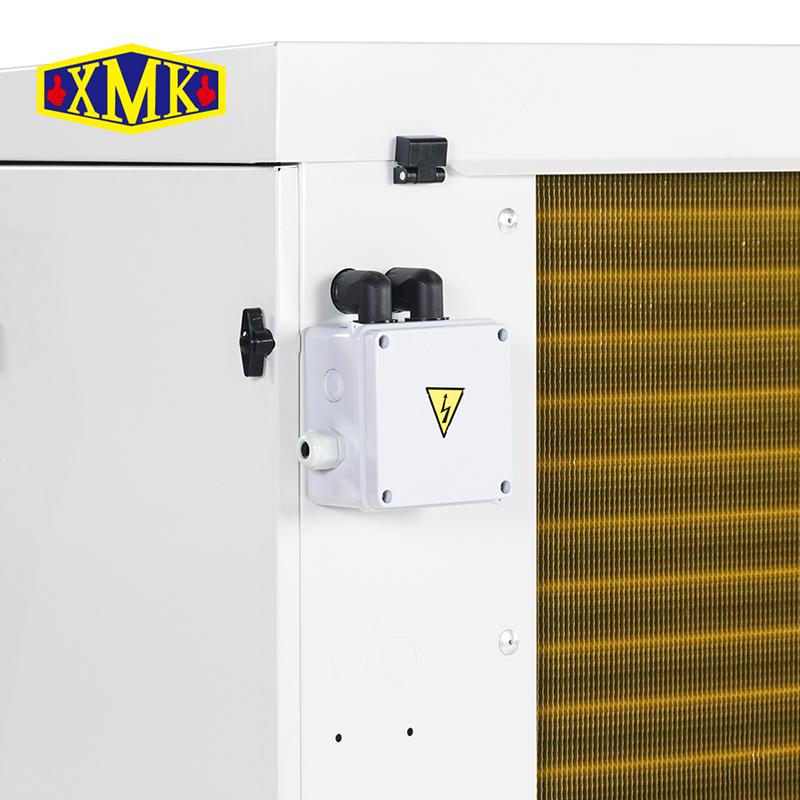

Standard use of electricdefrosting,stainless heating pipes installed in the middle of coil and inner water plate. Independent electric heating tube junction box.Hot gas defrosting or coil hot gas defrosting & water plate electric defrosting can also be used.

Refrigerants:

It can meet the requirements of R404A, R507A, R448A, R449A, R134a, R22 and other refrigerants.



300mm axial fan(three) with fin spacing 6.4MM industrial evaporator product items:

300mmx3 ceilling air cooler middle t.png

Projects reference picture:

Slaughter of cold storage 13.jpg





Product Application industry Display.jpg
