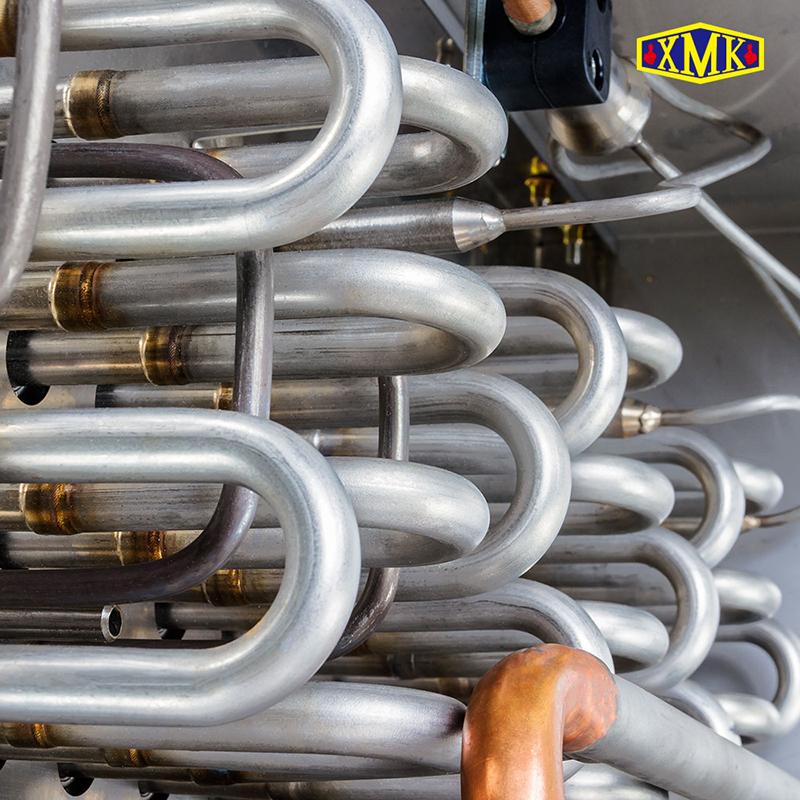

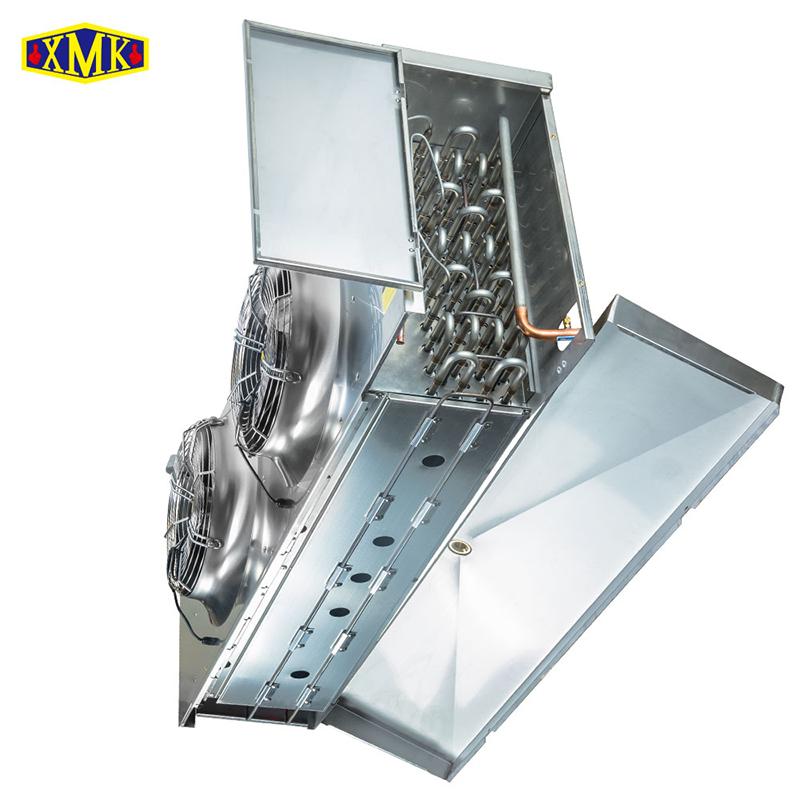

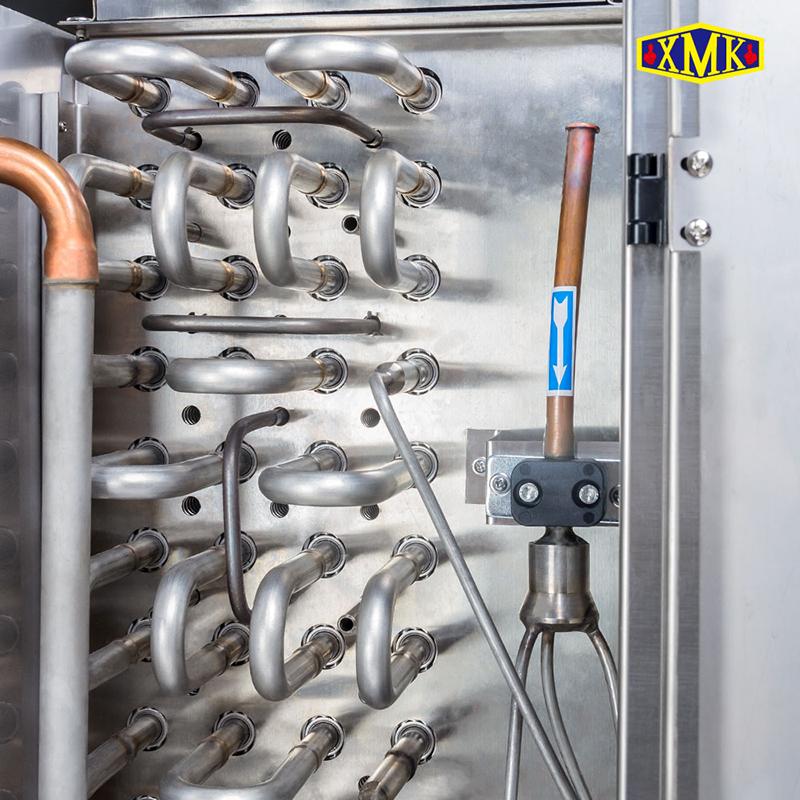

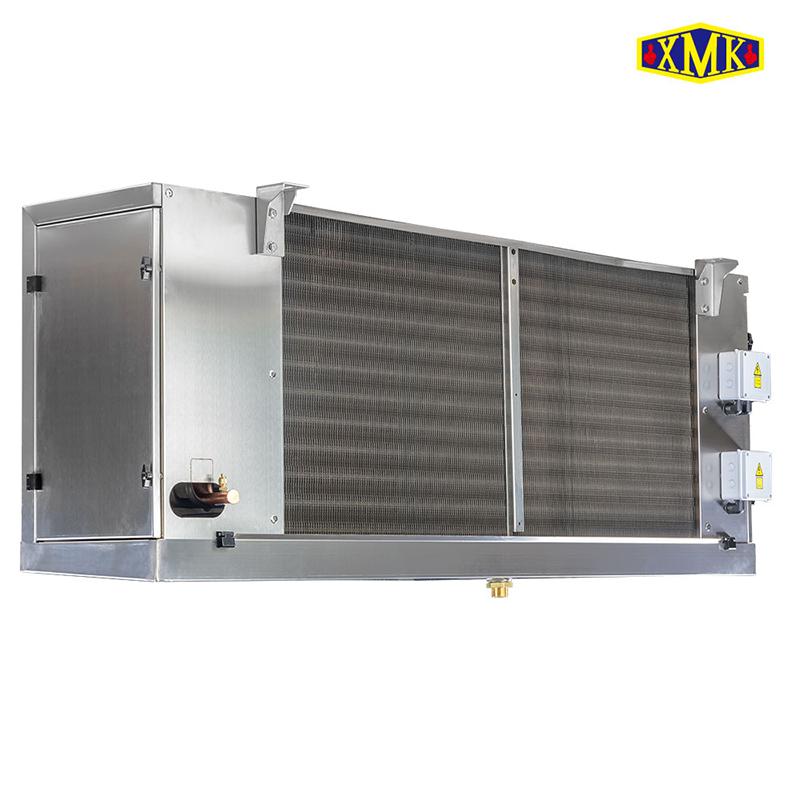

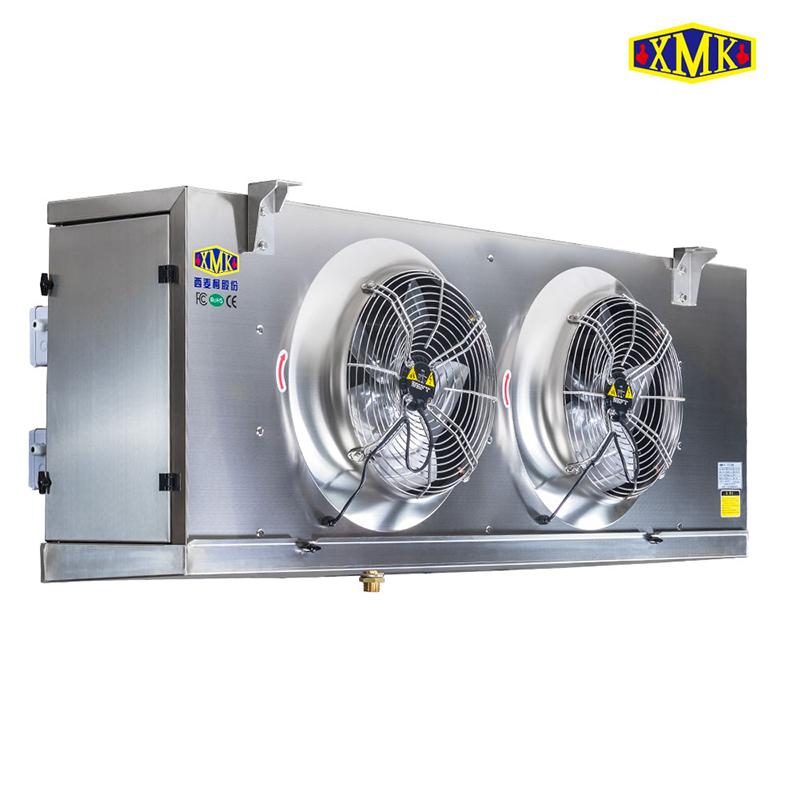

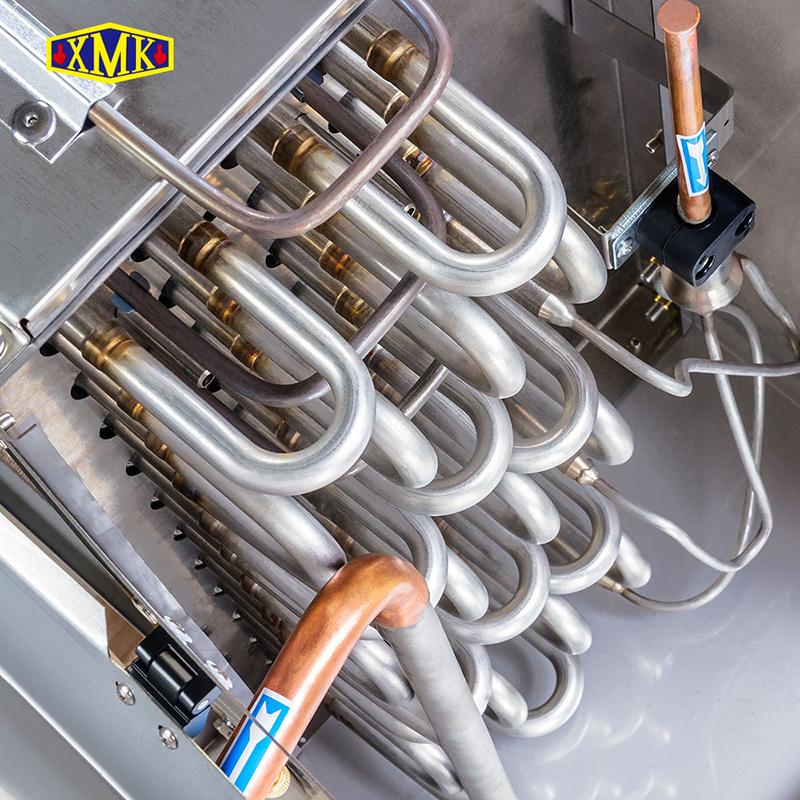

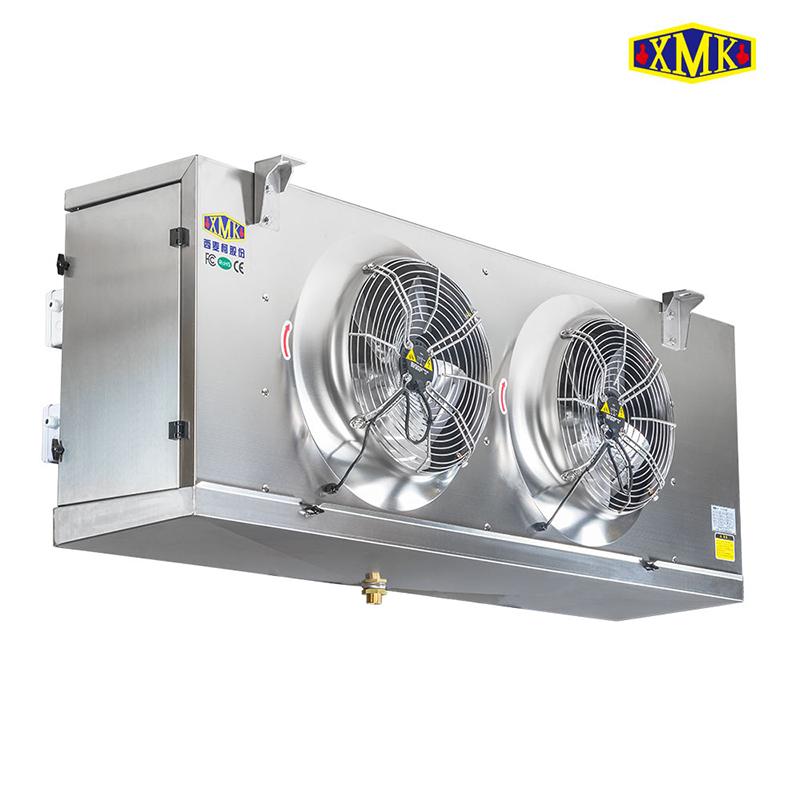

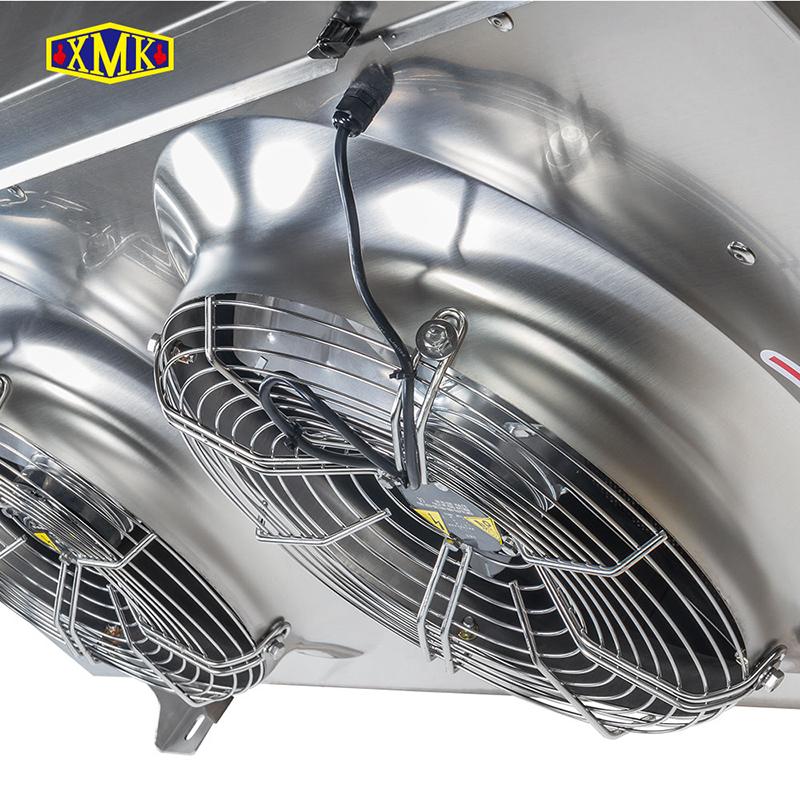

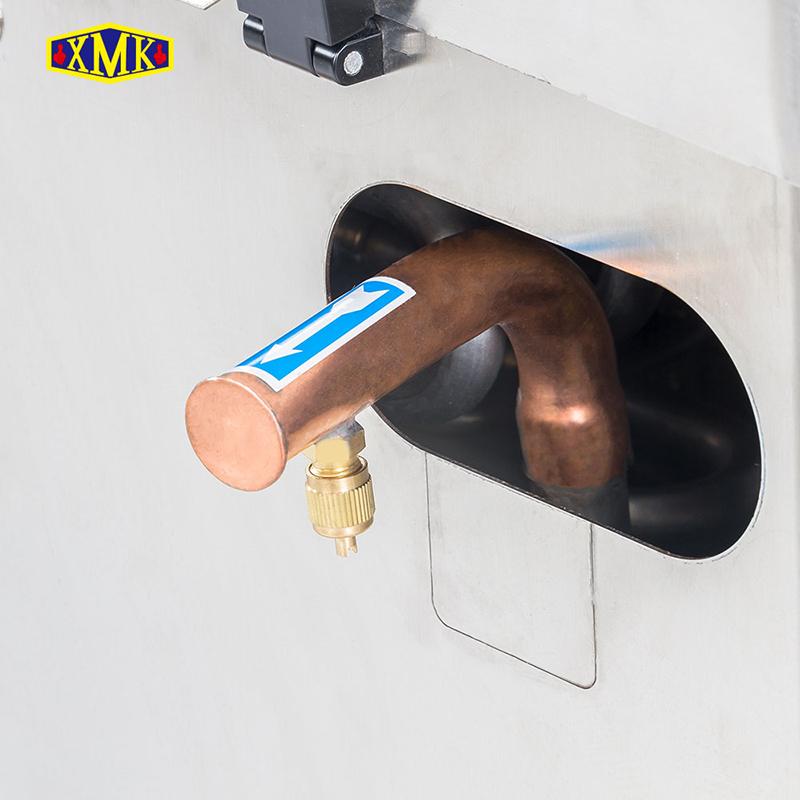

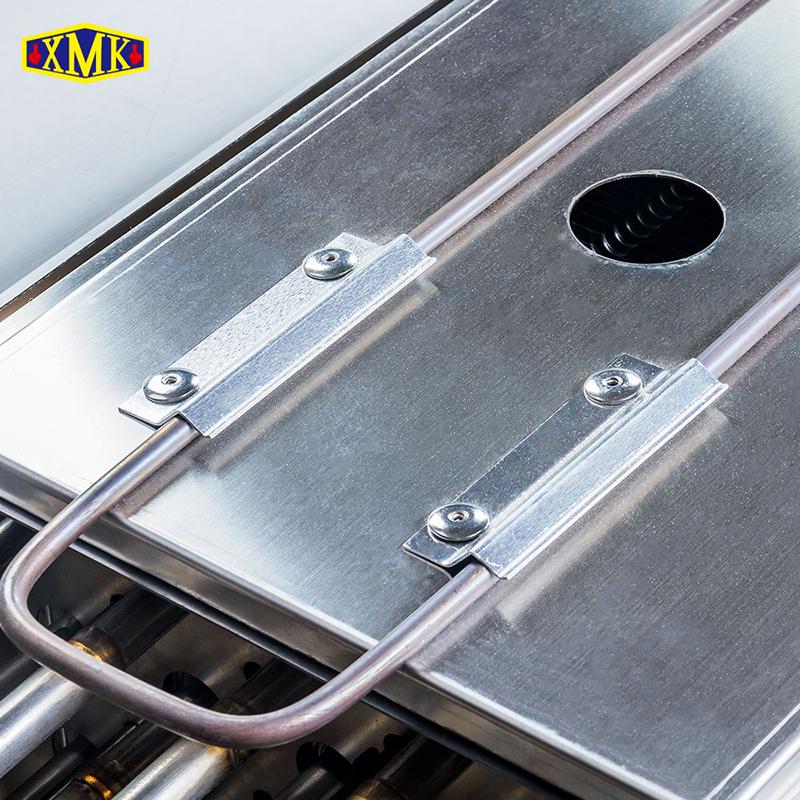

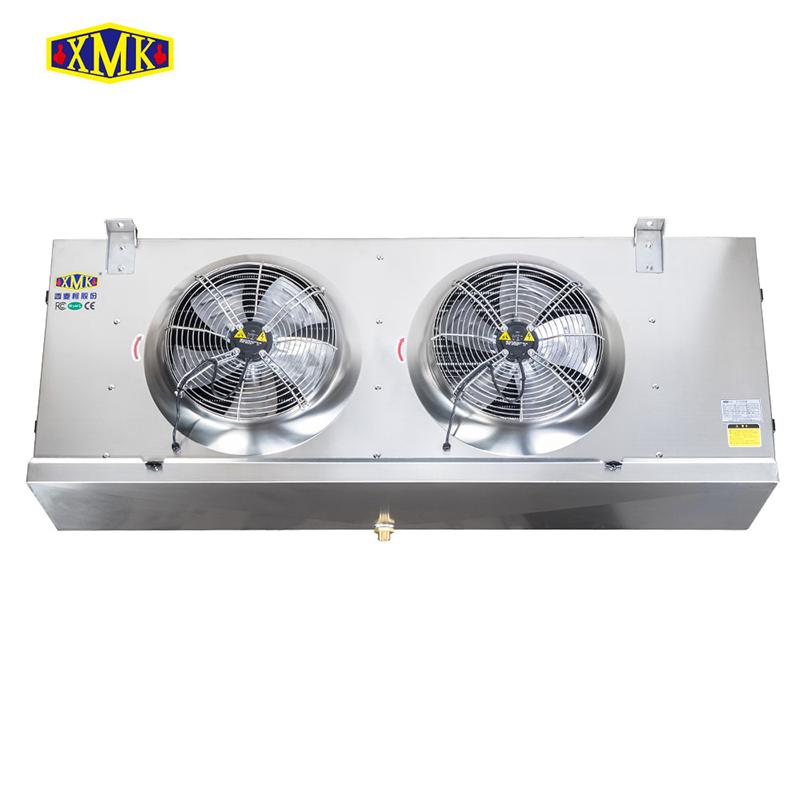

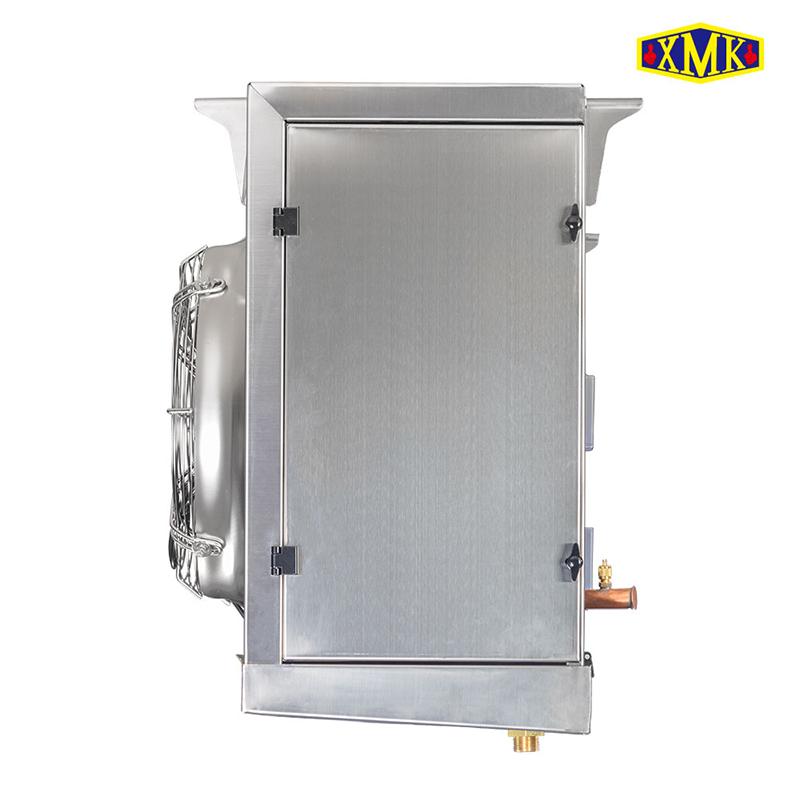

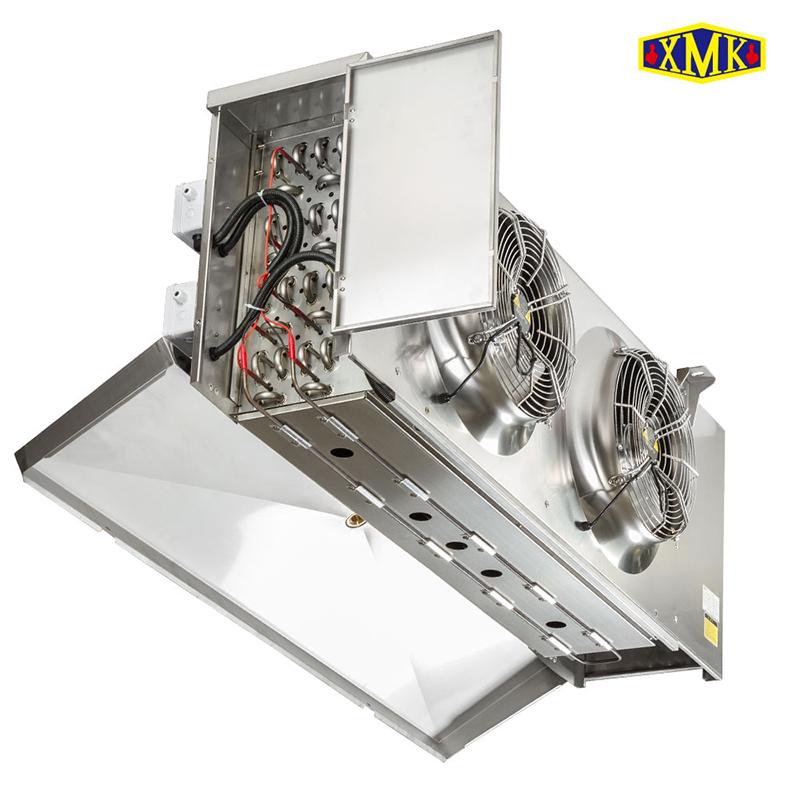

LS series is XMK second generation quick-frozen air cooler which mainly use for freezer cold storage as evaporator, such as food storage , ice rink , beverage factory and so on. It is design with that efficient recirculating and allows for installation in very close to walls to save spacing.
4GE-23Y Bitzer Compressor With Condensing Unit Product description: 1.HCU series open-type air-cool condensing units have the following characteristics.Adopted semi-hermetic piston compressors with BITZER or FRASCOLD, It has good quality and high reliability. 2.The air-cooled condenser, compressor and various accessories are installed on an integral frame, which is compact in structure and convenient in operation and maintenance. 3.Adopted high duct condenser with external rotor fan , which has low noise and high efficiency. 4.The product series is complete, It has high,medium, low temperature and quick frozen working conditions design. It can meet the needs of refrigeration equipment at various temperatures. 5.It can meet the requirements of R22, R404A,R507A, R448A, R449A and other refrigerants. Bitzer 4GE-23Y Condensing Unit Catalogue: Power Supply 380V 50Hz 3phase Apply Temp. -5 to -5 degree Compressor Model 4GE-23Y Compressor Max.I(A) 43.9 Fan Voltage (V) 380V 50Hz 3phase Fan Current (A) 2.1 Fan Power (W) 240x4 Suction Line (mm) 54 Liquid Line （mm） 22 Size length (mm) 1435 Size Width (mm) 1150 Size Height (mm) 1430
MLZ038 Freezer Copeland Scroll Compressor Condensing UnitProduct description:GU series box-type scroll condensing units have the following characteristics.1.This series of products is mainly developed forcold storage applications.2.The unit adopts Danfoss or Emerson fixedfrequency scroll compressor.3.Air conditioning type case is adopted ,Adopted6-pole low speed and low noise fan. It is verysuitable for residential area.4.It can meet the requirements of R404A, R507A,R448A, R449A and other refrigerants.Danfoss MLZ038 Condensing Unit Catalogue: Power Supply 380V 50Hz 3phase Apply Temp. -18 to 5 degree Compressor Model MLZ038 Compressor Max.I(A) 15 Fan Voltage (V) 220V 50Hz single phase Fan Current (A) 1.36 Rev.(r/min)820 Suction Line (mm) 19 Liquid Line （mm） 12.7Weight97Noise dBA61
MTZ28 Danfoss Cold Room Compressor Condensing Unit Product description: 1.HCU series open-type air-cool condensing units have the following characteristics.Adopted semi-hermetic piston compressors with DANFOSS or FRASCOLD, It has good quality and high reliability. 2.The air-cooled condenser, compressor and various accessories are installed on an integral frame, which is compact in structure and convenient in operation and maintenance. 3.Adopted high duct condenser with external rotor fan , which has low noise and high efficiency. 4.The product series is complete, It has high,medium, low temperature and quick frozen working conditions design. It can meet the needs of refrigeration equipment at various temperatures. 5.It can meet the requirements of R22, R404A,R507A, R448A, R449A and other refrigerants. Danfoss MTZ28 Condensing Unit Catalogue: Power Supply 380V 50Hz 3phase Apply Temp. -15 to -30 degree Compressor Model MTZ28 Compressor Max.I(A) 7.5 Fan Voltage (V) 380V 50Hz 3phase Fan Current (A) 0.52 Fan Power (W) 240X2 Suction Line (mm) 22 Liquid Line （mm） 12 Size length (mm) 850 Size Width (mm) 800 Size Height (mm) 830
XMK new design CWS/EWS series high air duct type unit coolers mainly adopt the design of air duct type fans, mainly used in ordinary medium and large cold storage .EWS is mainly used in explosion-proof raw material cold storage. Using water defrosting method.
43.9KW Fin Type Evaporator Product description: HC series air cooled condensers are mainly equipped with open-type condensing units with scrollcompressor, hemertic & semi-hemertic compressor. This air cooled condensers and compressors canbe installed together or sepa rately from compressors .Design of High barrel with Side-mounted Structure. 1.Condensers and compressors can be installed together or separately from compressors. Design of Highbarrel with Side-mounted Structure. 2.Copper tube and corrugated aluminium fins with a distance of2.1 mm are used. 3.Fan specifications adopt φ400mm, φ500mm and φ630mm. 4.Testing pressure 32bar. 5.Adopt high-quality steel plate with powder coating RAL9003 or RAL6001. 6.It can meet the requirements of R22, R134a, R404A, R507A, R407A, R407C,R448A,R449A and other refrig-erants. 7.Retain 1.5bar pressure before leaving factory. HC Series Air Cooled Condenser Data Sheet: Model HC98/440NT Capacity (KW) 43.9 Surface (㎡） 97.7 Volume (dm) 11.6 Fan Motor Air Flow 14000 Fan Motor Power 960 Fan Motor Current 2.08 dB (A) 56 Connect Pipe Inlet 28 Connect Pipe Outlet 22 Weight (kg) 75
Screw Bitzer Semi-hermetic Compressor Condensing Unit Product description: XBW series semi-hermetic screw unit is mainly used in cold storage projects with large coolingcapacity requirements.1.Adopts BITZER HSN series low screw compres-sor with single unit and parallel unit. It mainlymeets the requirements of low-temperaturerefrigeration storage at -20°C and quick-frozenstorage at -35°Cwith BITZER or FRASCOLD ,Ithas good quality and high reliability.2.The standard design of the unit adopts theform of water cooling, adopts high efficientshell and tube type water cooling condenser,and is equipped with a separate liquid receiver.3.The unit is equipped with an economizersystem and an oil cooler system.4.The unit is controlled by Siemens PLC and thekey electrical components are controlled bySchneider. With compressor start and stop,energy regulation, oil cooling system, econo-mizer system, cooling water pump and coolingtower fan control and various protection functions.tures;temperatures.5.The unit standard uses R404A or R507A refrigerant.Bitzer Condensing Unit Data: Power Supply 380V 50Hz 3phase Apply Temp. -18 to -40 degree Compressor Model HSN6461-50 Compressor Max.I(A) 79 Capacity(-35℃）46.7Capacity(-40℃）37.5Capacity(-45℃）29.5 Suction Line (mm) 28 Liquid Line （mm） DN50 Size length (mm) 1650 Size Width (mm) 1000 Size Height (mm) 1510
XMK-5202 5/8 ODF Oil Separator Refrigeration For Condensing UnitWe oil separator has the great oil-separating capacity.The mixed gaseous refrigerant get into oil separator from compressor,carring oil to get through stainless steel mesh inlet.The oil particles collide and become heavier,impacting on the inwall and intermediate clapboard ultimately.The separated oil drop on the bottom of separator,when them accumulate to a certain amount,the oil will get back to compressor crankcase automatically through the pressure differential ball float needle valve device.ModelConnector sizeXMK-52011/2 ODFXMK-52025/8 ODFXMK-52037/8 ODFXMK-52041-1/8 ODFXMK-52051-3/8 ODFXMK-62031-3/8 ODFXMK-62041-5/8 ODFXMK-62052-1/8 ODFProduction Introduction:The oil separator should be installed vertically and pre-charge the oil before installing oil separator,the oil should be same as the oil in the compressor crankcase.In the actual piping system,the excessive loads or vibration at the inlet and outlet should be prevented.Oil storage separator must be fixed in the mounting pin connections. Design features:1,Extra length multiayer filter mesh desgin will buffer the mixed gaseous refrigerant greatly.2,The installation of clapboard and spacer palte devide the space into three rooms,improving the efficiency of oil separating greatly.3,In practical application,the vibration of unit might affect ball float installation stability,so the clapboard and spacer plate could reduce the vibration og it.4,Reasonable stainless steel ball float installation desgin remove the crash of ball float and oil return pipe which reduced the noise.5,The installation of magner on the bottom absorb the remaining iron dust in the system helpfully.
ZB21KQE Copeland Condensing Unit Scroll Compressor Box TypeProduct description:GU series box-type scroll condensing units have the following characteristics.1.This series of products is mainly developed forcold storage applications.2.The unit adopts Danfoss or Emerson fixedfrequency scroll compressor.3.Air conditioning type case is adopted ,Adopted6-pole low speed and low noise fan. It is verysuitable for residential area.4.It can meet the requirements of R404A, R507A,R448A, R449A and other refrigerants. Copeland ZB21KQE Condensing Unit Catalogue: Power Supply 380V 50Hz 3phase Apply Temp. -15 to 5 degree Compressor Model ZB21KQE Compressor Max.I(A) 8 Fan Voltage (V) 220V 50Hz single phase Fan Current (A) 0.68 Rev.(r/min)820 Suction Line (mm) 19 Liquid Line （mm） 12.7Weight71Noise dBA60
