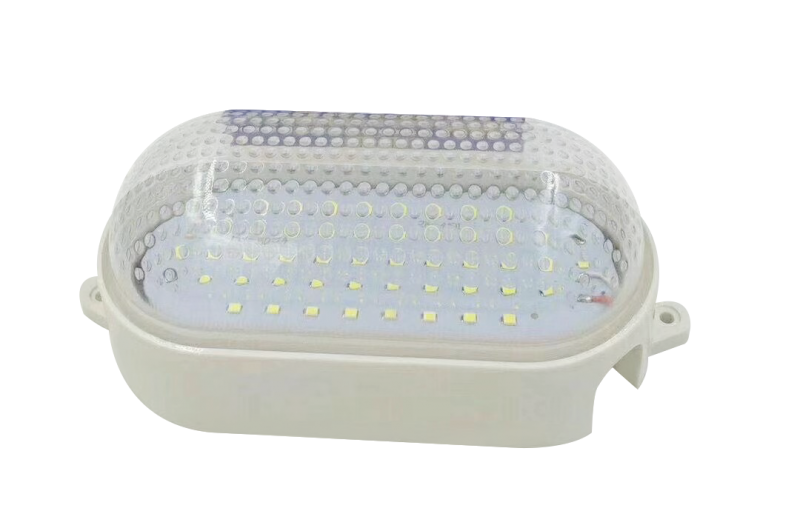

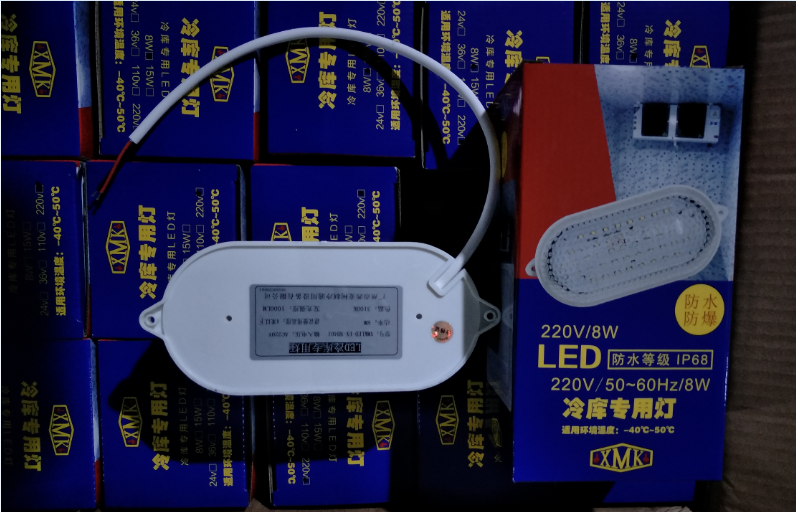

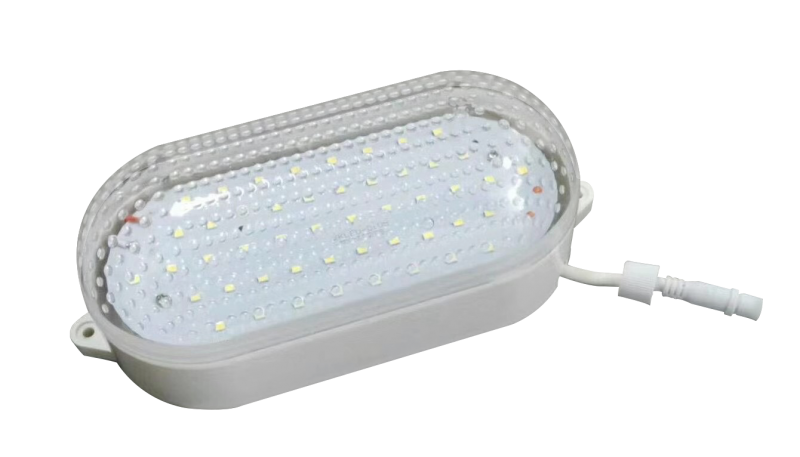

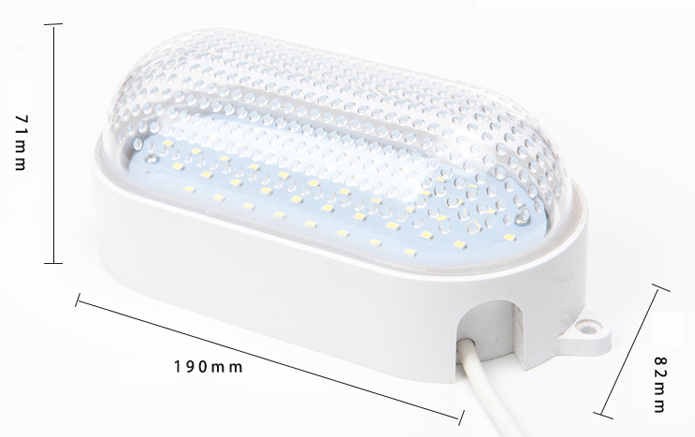

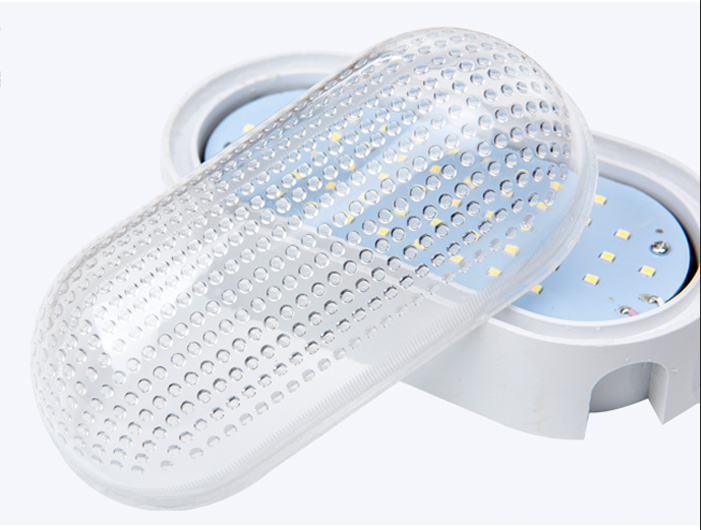

Cold room 8w LED light

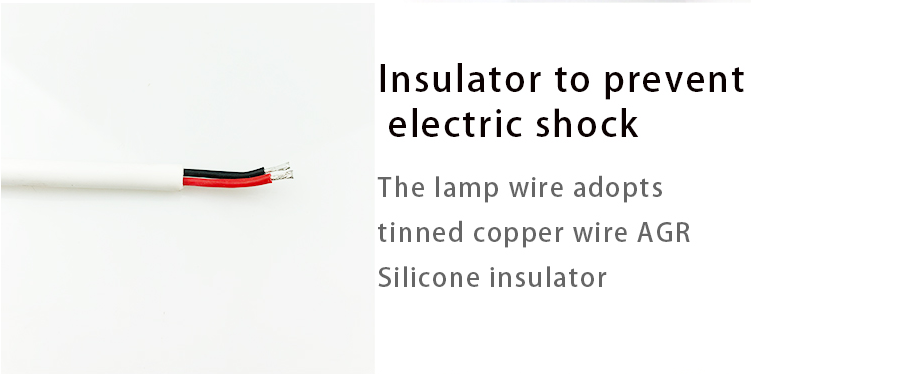

Cold room LED light with Low Temperature Resistance of Silica Gel Wire,Flame-retardant lamp housing and imported silicone seals,IP65,not easy to crack,low temperature resistance.

Water-proof,Moisture-proof light for cold storage room.

XMK-5201 1/2 ODF Oil Separator RefrigerationWe oil separator has the great oil-separating capacity.The mixed gaseous refrigerant get into oil separator from compressor,carring oil to get through stainless steel mesh inlet.The oil particles collide and become heavier,impacting on the inwall and intermediate clapboard ultimately.The separated oil drop on the bottom of separator,when them accumulate to a certain amount,the oil will get back to compressor crankcase automatically through the pressure differential  ball float needle valve device.ModelConnector sizeXMK-52011/2 ODFXMK-52025/8 ODFXMK-52037/8 ODFXMK-52041-1/8 ODFXMK-52051-3/8 ODFXMK-62031-3/8 ODFXMK-62041-5/8 ODFXMK-62052-1/8 ODFProduction Introduction:The oil separator should be installed vertically and pre-charge the oil before installing oil separator,the oil should be same as the oil in the compressor crankcase.In the actual piping system,the excessive loads or vibration at the inlet and outlet should be prevented.Oil storage separator must be fixed in the mounting pin connections. Design features:1,Extra length multiayer filter mesh desgin will buffer the mixed gaseous refrigerant greatly.2,The installation of clapboard and spacer palte devide the space into three rooms,improving the efficiency of oil separating greatly.3,In practical application,the vibration of unit might affect ball float installation stability,so the clapboard and spacer plate could reduce the vibration og it.4,Reasonable stainless steel ball float installation desgin remove the crash of ball float and oil return pipe which reduced the noise.5,The installation of magner on the bottom absorb the remaining iron dust in the system helpfully.

ZB38KQE Compressor For Condensing UnitProduct description:BUW-B series box-type condensing units have the following characteristics1.Products adopt horizontal box- type structure,high wind circle design, excellent appearance.2.The cover of the case adopts hinge structure,which is easy to maintain and operate.3.Compressor uses Emerson ZB series and ZSIseries with DTC spray & ZFI series with EVIscroll compressor to meet the application ofmedium temperature and low temperaturerespectively.4.Adopt U-type condenser, it has large windwardside, small wind resistance and good heat transfer effect.5.Adopt U-type condenser, it has large windwardside，small wind resistance and good heattransfer effect. Copeland ZB38KQE Condensing Unit Catalogue: Power Supply  380V 50Hz 3phase Apply Temp. -10 to 5 degree Compressor Model ZB38KQE Compressor Max.I(A) 13.5 Fan Voltage (V) 380V 50Hz 3phase Fan Current (A) 1 Rev.(r/min)910 Suction Line (mm) 19 Liquid Line （mm） 12.7 Size length (mm) 1040 Size Width (mm) 570 Size Height (mm) 1100

ZB Copeland Chiller Compressor Condensing Unit For Cold StorageThis BUW-A series products with Emerson scroll compressor,applicable to cold display cabi-nets, cold storage rooms, ice producers etc. The applicable temperature ranges are: -5'C~ 10"C.-l0'C~ -18C-18'C~-23"C. They can be widely used in hotels, restaurants, medicines, agricultur-al, chemicals industries all other place where cold storage is needed.1.Products adopt vertical box-type structure,compact structure design, excellent appear-ance.2.The cover of the case adopts hinge structure,which is easy to maintain and operate.3.Compressor uses Emerson ZB series scrollcompressor and ZSI series scroll compressorwith DTC spray to meet the application ofmedium temperature and low temperaturerespectively.4.Adopt L-type condenser, it has large windwardside, small wind resistance and good heattransfer effect.5.Adopt 6-pole external rotor motor with lowspeed and low noise.6.It can meet the requirements of R22, R404A,R507A, R448A, R449A and other refrigerants. Copeland ZB21KQE Condensing Unit Catalogue: Power Supply  380V 50Hz 3phase Apply Temp. -10 to 5 degree Compressor Model ZB21KQE Compressor Max.I(A) 8 Fan Voltage (V) 380V 50Hz 3phase Fan Current (A) 0.5 Rev.(r/min)910 Suction Line (mm) 19 Liquid Line （mm） 9.5 Size length (mm) 1040 Size Width (mm) 570 Size Height (mm) 700

This wall-mounted type of CA series air cooler design with 300mm blowers & 6.4mm fin spacing , apply to cold storage which require cold room temperaturer -18 °C , such as frozen food, meat, cold food and seafood.

2EES-3 Bitzer Condensing Unit Compressor Cold RoomProduct description:BUB series horizontal box-type condensing units have the following characteristics.1.Products adopt horizontal box-type structure,high wind circle design, Excellent ventilationeffect and appearance.2.The cover of the case adopts hinge structure,which is easy to maintain and operate.3.Adopted semi-hermetic piston compressorswith BITZER or FRASCOLD to meet the applica-tion of medium temperature and low tempera-ture respectively.4.Adopted U-type condenser, it has large wind-ward side, small wind resistance and goodheat transfer effect.5.It can meet the requirements of R22, R404A,R507A, R448A, R449A and other refrigerants. 2EES-3 Bitzer Condensing Unit Date: Power Supply  380V 50Hz 3phase Apply Temp. -5 to 5 degree Compressor Model 2EES-3 Compressor Max.I(A) 7.5 Fan Voltage (V) 380V 50Hz 3phase Fan Current (A) 0.52 Rev.(r/min)1380 Suction Line (mm) 22 Liquid Line （mm） 12.7 Size length (mm) 820 Size Width (mm) 655 Size Height (mm) 815

S4T-5.2Y Bitzer Condensing Unit For Cold Storage Product description:   1.HCU series open-type air-cool condensing units have the following characteristics.Adopted semi-hermetic piston compressors with BITZER or FRASCOLD, It has good quality and high reliability.   2.The air-cooled condenser, compressor and various accessories are installed on an integral frame, which is compact in structure and convenient in operation and maintenance.   3.Adopted high duct condenser with external rotor fan , which has low noise and high efficiency.   4.The product series is complete, It has high,medium, low temperature and quick frozen working conditions design. It can meet the needs of refrigeration equipment at various temperatures.   5.It can meet the requirements of R22, R404A,R507A, R448A, R449A and other refrigerants.  Bitzer S4T-5.2Y Condensing Unit Catalogue: Power Supply  380V 50Hz 3phase Apply Temp. -25 to -55 degree Compressor Model S4T-5.2Y Compressor Max.I(A) 14 Fan Voltage (V) 380V 50Hz 3phase Fan Current (A) 1.04 Fan Power (W) 240X4 Suction Line (mm) 28 Liquid Line （mm） 12 Size length (mm) 1435 Size Width (mm) 1050 Size Height (mm) 830

RC series air cooled condensers are mainly equipped with large heat transfer demand, large-scale remote-mounted condensing units, piston parallel units and screw units.
