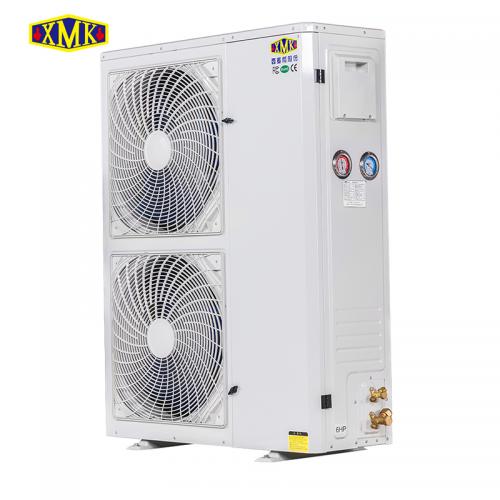

Emerson Copeland Condensing Unit R404 For Cool Room Product description: BUW-B series box-type condensing units have the following characteristics 1.Products adopt horizontal box- type structure,high wind circle design, excellent appearance. 2.The cover of the case adopts hinge structure,which is easy to maintain and operate. 3.Compressor uses Emerson ZB series and ZSIseries with DTC spray & ZFI series with EVIscroll compressor to meet the application ofmedium temperature and low temperaturerespectively. 4.Adopt U-type condenser, it has large windwardside, small wind resistance and good heat transfer effect. 5.Adopt U-type condenser, it has large windwardside，small wind resistance and good heattransfer effect. Copeland ZSI06KQE Condensing Unit Catalogue: Power Supply 380V 50Hz 3phase Apply Temp. -15 to -23 degree Compressor Model ZSI06KQE Compressor Max.I(A) 5.7 Fan Voltage (V) 380V 50Hz 3phase Fan Current (A) 0.52 Rev.(r/min) 1380 Suction Line (mm) 19 Liquid Line （mm） 9.5 Size length (mm) 820 Size Width (mm) 655 Size Height (mm) 815
ZB114KQE Copeland Compressor Scroll Unit Product description: BUW-B series box-type condensing units have the following characteristics 1.Products adopt horizontal box- type structure,high wind circle design, excellent appearance. 2.The cover of the case adopts hinge structure,which is easy to maintain and operate. 3.Compressor uses Emerson ZB series and ZSIseries with DTC spray & ZFI series with EVIscroll compressor to meet the application ofmedium temperature and low temperaturerespectively. 4.Adopt U-type condenser, it has large windwardside, small wind resistance and good heat transfer effect. 5.Adopt U-type condenser, it has large windwardside，small wind resistance and good heattransfer effect. Copeland ZB114KQE Condensing Unit Catalogue: Power Supply 380V 50Hz 3phase Apply Temp. -10 to 5 degree Compressor Model ZB114KQE Compressor Max.I(A) 38 Fan Voltage (V) 380V 50Hz 3phase Fan Current (A) 2.2 Rev.(r/min) 1380 Suction Line (mm) 35 Liquid Line （mm） 16 Size length (mm) 1620 Size Width (mm) 805 Size Height (mm) 1205
ZFI68KQE R404A Cold Room Compressor Refrigeration Unit Product description: BUW-B series box-type condensing units have the following characteristics 1.Products adopt horizontal box- type structure,high wind circle design, excellent appearance. 2.The cover of the case adopts hinge structure,which is easy to maintain and operate. 3.Compressor uses Emerson ZB series and ZSIseries with DTC spray & ZFI series with EVIscroll compressor to meet the application ofmedium temperature and low temperaturerespectively. 4.Adopt U-type condenser, it has large windwardside, small wind resistance and good heat transfer effect. 5.Adopt U-type condenser, it has large windwardside，small wind resistance and good heattransfer effect. Copeland ZFI68KQE Condensing Unit Catalogue: Power Supply 380V 50Hz 3phase Apply Temp. -15 to -30 degree Compressor Model ZFI68KQE Compressor Max.I(A) 30 Fan Voltage (V) 380V 50Hz 3phase Fan Current (A) 2.2 Rev.(r/min) 1380 Suction Line (mm) 35 Liquid Line （mm） 16 Size length (mm) 1620 Size Width (mm) 805 Size Height (mm) 1205
MTZ125 Condensing Unit Refrigeration Compressor Product description: 1.HCU series open-type air-cool condensing units have the following characteristics.Adopted semi-hermetic piston compressors with DANFOSS or FRASCOLD, It has good quality and high reliability. 2.The air-cooled condenser, compressor and various accessories are installed on an integral frame, which is compact in structure and convenient in operation and maintenance. 3.Adopted high duct condenser with external rotor fan , which has low noise and high efficiency. 4.The product series is complete, It has high,medium, low temperature and quick frozen working conditions design. It can meet the needs of refrigeration equipment at various temperatures. 5.It can meet the requirements of R22, R404A,R507A, R448A, R449A and other refrigerants. Danfoss MTZ125 Condensing Unit Catalogue: Power Supply 380V 50Hz 3phase Apply Temp. -15 to -30 degree Compressor Model MTZ125 Compressor Max.I(A) 12.2 Fan Voltage (V) 380V 50Hz 3phase Fan Current (A) 1.04 Fan Power (W) 240X2 Suction Line (mm) 28 Liquid Line （mm） 12 Size length (mm) 1435 Size Width (mm) 850 Size Height (mm) 830
Emerson Copeland Condensing Unit R404 For Cool RoomProduct description:BUW-B series box-type condensing units have the following characteristics1.Products adopt horizontal box- type structure,high wind circle design, excellent appearance.2.The cover of the case adopts hinge structure,which is easy to maintain and operate.3.Compressor uses Emerson ZB series and ZSIseries with DTC spray & ZFI series with EVIscroll compressor to meet the application ofmedium temperature and low temperaturerespectively.4.Adopt U-type condenser, it has large windwardside, small wind resistance and good heat transfer effect.5.Adopt U-type condenser, it has large windwardside，small wind resistance and good heattransfer effect. Copeland ZSI06KQE Condensing Unit Catalogue: Power Supply 380V 50Hz 3phase Apply Temp. -15 to -23 degree Compressor Model ZSI06KQE Compressor Max.I(A) 5.7 Fan Voltage (V) 380V 50Hz 3phase Fan Current (A) 0.52 Rev.(r/min)1380 Suction Line (mm) 19 Liquid Line （mm） 9.5 Size length (mm) 820 Size Width (mm) 655 Size Height (mm) 815
ZB45KQE Freezer Copeland Scroll Compressor UnitProduct description:GU series box-type scroll condensing units have the following characteristics.1.This series of products is mainly developed forcold storage applications.2.The unit adopts Danfoss or Emerson fixedfrequency scroll compressor.3.Air conditioning type case is adopted ,Adopted6-pole low speed and low noise fan. It is verysuitable for residential area.4.It can meet the requirements of R404A, R507A,R448A, R449A and other refrigerants. Copeland ZB45KQE Condensing Unit Catalogue: Power Supply 380V 50Hz 3phase Apply Temp. -18 to 5 degree Compressor Model ZB45KQE Compressor Max.I(A) 16.1 Fan Voltage (V) 220V 50Hz single phase Fan Current (A) 1.36 Rev.(r/min)820 Suction Line (mm) 19 Liquid Line （mm） 12.7Weight105Noise dBA61
MLZ038 Freezer Copeland Scroll Compressor Condensing UnitProduct description:GU series box-type scroll condensing units have the following characteristics.1.This series of products is mainly developed forcold storage applications.2.The unit adopts Danfoss or Emerson fixedfrequency scroll compressor.3.Air conditioning type case is adopted ,Adopted6-pole low speed and low noise fan. It is verysuitable for residential area.4.It can meet the requirements of R404A, R507A,R448A, R449A and other refrigerants.Danfoss MLZ038 Condensing Unit Catalogue: Power Supply 380V 50Hz 3phase Apply Temp. -18 to 5 degree Compressor Model MLZ038 Compressor Max.I(A) 15 Fan Voltage (V) 220V 50Hz single phase Fan Current (A) 1.36 Rev.(r/min)820 Suction Line (mm) 19 Liquid Line （mm） 12.7Weight97Noise dBA61
MLZ038 Freezer Copeland Condensing Unit For Cold RoomProduct description:KCU/VCU series box-type scroll condensing units have the following characteristics.1.This series of products is mainly developed forcommercial and supermarket applications.2.The unit adopts Danfoss MLZ fixed frequencyor VLZ variable frequency scroll compressor.3.Air conditioning type case is adopted ,Adopted6-pcle low speed and low noise fan. It is verysuitable for residential area.4.The compressor and condenser can be dividedinto two cases according to the requirementsof customers.5.The unit is equipped with oil separator andaccumulator, unit control and fan speedregulation, etc. It is especially suitable forconvenience store and supermarket refrigera-tion system.6.The pressure control compressor starts andstops.7.With phase sequence, phase loss, over current,discharge temperature, system high and lowpressure protection and fault query functions.8.It can meet the requirements of R404A, R507A,R448A, R449A and other refrigerants.Danfoss MLZ038 Condensing Unit Catalogue: Power Supply 380V 50Hz 3phase Apply Temp. -18 to 5 degree Compressor Model MLZ038 Compressor Max.I(A) 15 Fan Voltage (V) 220V 50Hz single phase Fan Current (A) 1.36 Rev.(r/min)820 Suction Line (mm) 19 Liquid Line （mm） 12.7Weight97Noise dBA61
