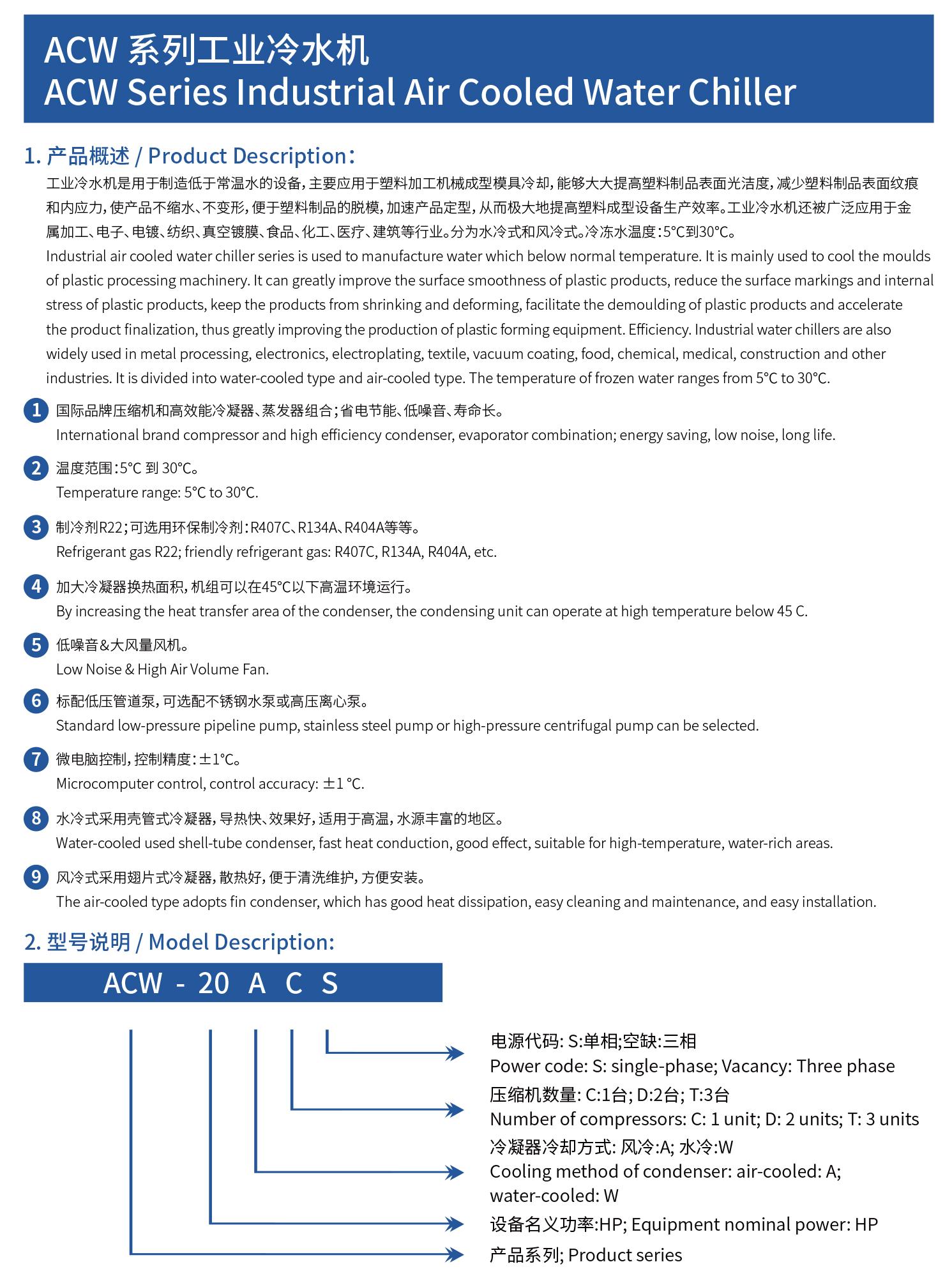

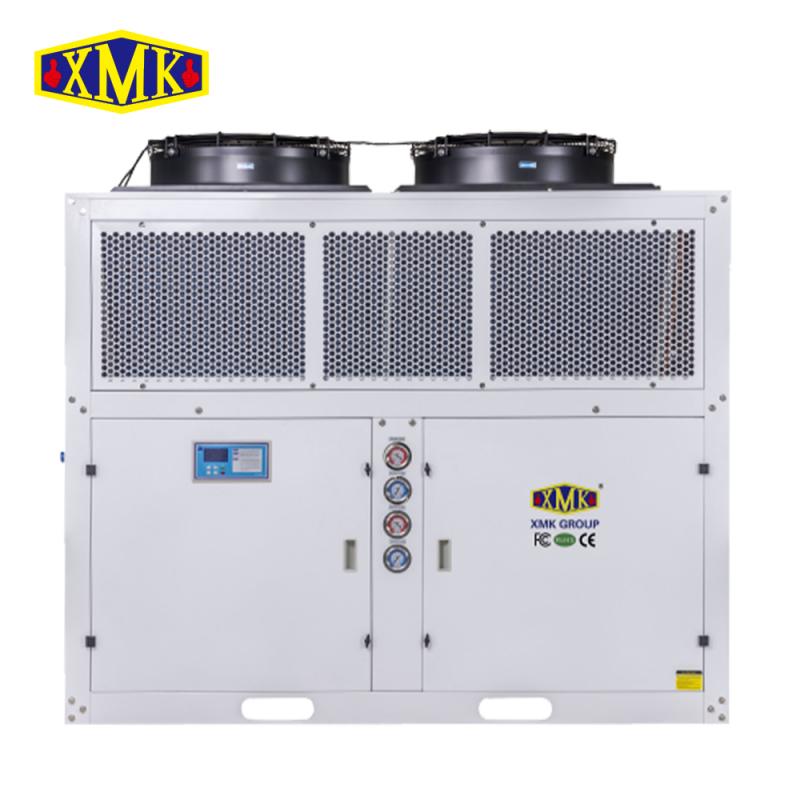

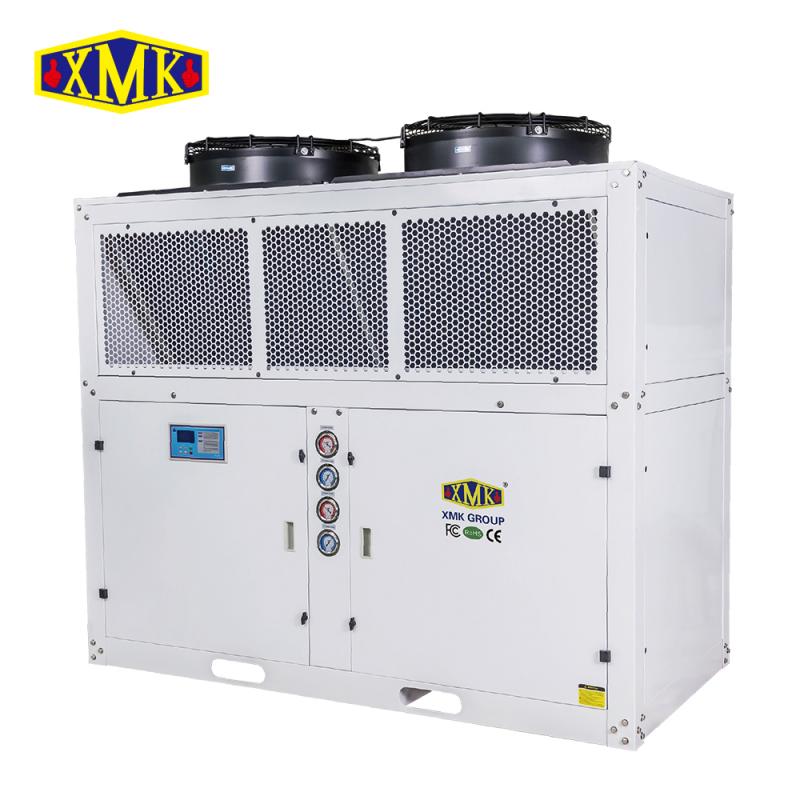

ACW Series Industrial Air Cooled Water Chiller

XMK new design CWS/EWS series high air duct type unit coolers mainly adopt the design of air duct type fans, mainly used in ordinary medium and large cold storage .EWS is mainly used in explosion-proof raw material cold storage. Using water defrosting method.

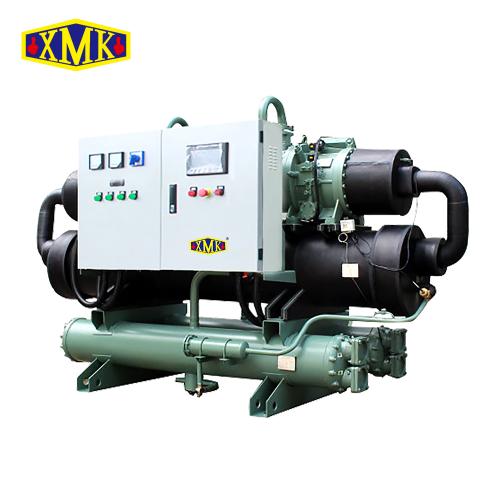

Semi-hermetic Compressor Condensing Unit Product description:  XRW series semi-hermetic screw unit is mainly used in cold storage projects with large coolingcapacity requirements1.Adopts Refcomp SW3 series screw compressorwith single unit and parallel unit.2.The series of products include two applicationseries of medium-temperature and low-tem-perature units. The medium-temperature unitmainly meets the requirements of cold storageat about OC, while the low-temperature unitmainly meets the requirements of low-tem-perature refrigeration storage at -20C andquick-frozen storage at -35C.3.The standard design of the unit adopts theform of water cooling, adopts high efficientshell and tube type water cooling condenser,and is equipped with a separate liquid receiver.4.The low temperature unit is equipped with aneconomizer system and an oil cooler system.5.The unit is controlled by Siemens PLC and thekey electrical components are controlled bySchneider. With compressor start and stop,energy regulation, oil cooling system, econo-mizer system, cooling water pump and coolingtower fan control and various protection functions.6.The unit standard uses R404A or R507A refrigerant.Refcomp Condensing Unit Data: Power Supply  380V 50Hz 3phase Apply Temp. -5 to 5 degree Compressor Model SW3H6000 Compressor Max.I(A) 105 Capacity(-5℃） 120Capacity(-10℃） 98.2Capacity(-15℃） 79.7 Suction Line (mm) 28 Liquid Line （mm） DN50 Size length (mm) 1650 Size Width (mm) 1000 Size Height (mm) 1520

Copeland Compressor Condensing Refrigeration Unit   Product description:   BUW-B series box-type condensing units have the following characteristics   1.Products adopt horizontal box- type structure,high wind circle design, excellent appearance.   2.The cover of the case adopts hinge structure,which is easy to maintain and operate.   3.Compressor uses Emerson ZB series and ZSIseries with DTC spray & ZFI series with EVIscroll compressor to meet the application ofmedium temperature and low temperaturerespectively.   4.Adopt U-type condenser, it has large windwardside, small wind resistance and good heat transfer effect.   5.Adopt U-type condenser, it has large windwardside，small wind resistance and good heattransfer effect.    Copeland ZB29KQE Condensing Unit Catalogue:   Power Supply  380V 50Hz 3phase Apply Temp. -10 to 5 degree Compressor Model ZB29KQE Compressor Max.I(A) 11 Fan Voltage (V) 380V 50Hz 3phase Fan Current (A) 0.52 Rev.(r/min) 1380 Suction Line (mm) 19 Liquid Line （mm） 12.7 Size length (mm) 820 Size Width (mm) 655 Size Height (mm) 815

MLZ038 Freezer Copeland Condensing Unit For Cold RoomProduct description:KCU/VCU series box-type scroll condensing units have the following characteristics.1.This series of products is mainly developed forcommercial and supermarket applications.2.The unit adopts Danfoss MLZ fixed frequencyor VLZ variable frequency scroll compressor.3.Air conditioning type case is adopted ,Adopted6-pcle low speed and low noise fan. It is verysuitable for residential area.4.The compressor and condenser can be dividedinto two cases according to the requirementsof customers.5.The unit is equipped with oil separator andaccumulator, unit control and fan speedregulation, etc. It is especially suitable forconvenience store and supermarket refrigera-tion system.6.The pressure control compressor starts andstops.7.With phase sequence, phase loss, over current,discharge temperature, system high and lowpressure protection and fault query functions.8.It can meet the requirements of R404A, R507A,R448A, R449A and other refrigerants.Danfoss MLZ038 Condensing Unit Catalogue: Power Supply  380V 50Hz 3phase Apply Temp. -18 to 5 degree Compressor Model MLZ038 Compressor Max.I(A) 15 Fan Voltage (V) 220V 50Hz single phase Fan Current (A) 1.36 Rev.(r/min)820 Suction Line (mm) 19 Liquid Line （mm） 12.7Weight97Noise dBA61

Air cooled condenser is specially designed for Freon refrigeration equipment and cooled by air. XMK FNF series is suitable for R134a, R22, R404a, R407 and other refrigerants, widely used in freezing, refrigeration, air conditioning, heat pumps and industrial refrigeration. Fan blower support 350mm to 500mm.

ND series is a general type industrial wall mounted evaporator for various cold rooms. Design in hinged structure for both side plates and external drip tray which is convenient and quick to operate.  Voltage in 220V or 380V .

ZFI50KQE Compressor Condensing Unit For Meat Room    Product description:   BUW-B series box-type condensing units have the following characteristics   1.Products adopt horizontal box- type structure,high wind circle design, excellent appearance.   2.The cover of the case adopts hinge structure,which is easy to maintain and operate.   3.Compressor uses Emerson ZB series and ZSIseries with DTC spray & ZFI series with EVIscroll compressor to meet the application ofmedium temperature and low temperaturerespectively.   4.Adopt U-type condenser, it has large windwardside, small wind resistance and good heat transfer effect.   5.Adopt U-type condenser, it has large windwardside，small wind resistance and good heattransfer effect.    Copeland ZFI50KQE Condensing Unit Catalogue:   Power Supply  380V 50Hz 3phase Apply Temp. -15 to -30 degree Compressor Model ZFI50KQE Compressor Max.I(A) 25 Fan Voltage (V) 380V 50Hz 3phase Fan Current (A) 1.1 Rev.(r/min) 1380 Suction Line (mm) 35 Liquid Line （mm） 16 Size length (mm) 1020 Size Width (mm) 805 Size Height (mm) 1065

4FE-35Y Bitzer Cold Room Compressor Condensing Unit Product description:   1.HCU series open-type air-cool condensing units have the following characteristics.Adopted semi-hermetic piston compressors with BITZER or FRASCOLD, It has good quality and high reliability.   2.The air-cooled condenser, compressor and various accessories are installed on an integral frame, which is compact in structure and convenient in operation and maintenance.   3.Adopted high duct condenser with external rotor fan , which has low noise and high efficiency.   4.The product series is complete, It has high,medium, low temperature and quick frozen working conditions design. It can meet the needs of refrigeration equipment at various temperatures.   5.It can meet the requirements of R22, R404A,R507A, R448A, R449A and other refrigerants. Medium Bitzer 4FE-35Y Condensing Unit Catalogue: Power Supply  380V 50Hz 3phase Apply Temp. -5 to -5 degree Compressor Model 4FE-35Y Compressor Max.I(A) 62.1 Fan Voltage (V) 380V 50Hz 3phase Fan Current (A) 7 Fan Power (W) 937x4 Suction Line (mm) 54 Liquid Line （mm） 22 Size length (mm) 1800 Size Width (mm) 1300 Size Height (mm) 1880

LT series cooling fans are mainly used in horizontal floor type structure and high wind pressure air duct fan,which evenly sends the cold air into the warehouse through the air duct.
