Air cooled condenser is specially designed for Freon refrigeration equipment and cooled by air. XMK FNF series is suitable for R134a, R22, R404a, R407 and other refrigerants, widely used in freezing, refrigeration, air conditioning, heat pumps and industrial refrigeration. Fan blower support 350mm to 500mm.

HC series air cooled conedensers are mainly equipped with open-type condesing units with scroll compressor , hemertic & semi-hemertic compressor .This air cooled condensers and compressors can be installed together or sepa rately from compressors. Design of high barrel with Side-mounted Structure.

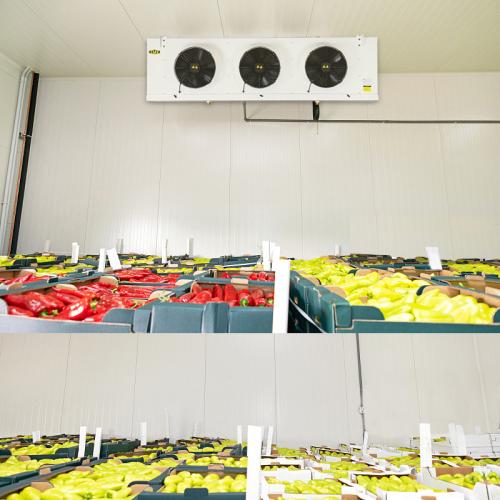

This CS unit cooler is apply to various kind of cold storage which inquire temperature about -5 °C to 5°C to keep food freshing, wall -mounted type and electric defrosting.

Bitzer Catalogue Refrigeration Condenser Cooling Unit Product description:   1.HCU series open-type air-cool condensing units have the following characteristics.Adopted semi-hermetic piston compressors with BITZER or FRASCOLD, It has good quality and high reliability.   2.The air-cooled condenser, compressor and various accessories are installed on an integral frame, which is compact in structure and convenient in operation and maintenance.   3.Adopted high duct condenser with external rotor fan , which has low noise and high efficiency.   4.The product series is complete, It has high,medium, low temperature and quick frozen working conditions design. It can meet the needs of refrigeration equipment at various temperatures.   5.It can meet the requirements of R22, R404A,R507A, R448A, R449A and other refrigerants. Medium Bitzer Condensing Unit data:   Power Supply  380V 50Hz 3phase Apply Temp. -5 to -5 degree Compressor Model 4TES-12Y Compressor Max.I(A) 25.2 Fan Voltage (V) 380V 50Hz 3phase Fan Current (A) 2.1 Fan Power (W) 240x4 Suction Line (mm) 35 Liquid Line （mm） 16 Size length (mm) 1435 Size Width (mm) 1000 Size Height (mm) 1430

20Ton Catalogue Air Cooled Condensing Unit Product description:   1.HCU series open-type air-cool condensing units have the following characteristics.Adopted semi-hermetic piston compressors with BITZER or FRASCOLD, It has good quality and high reliability.   2.The air-cooled condenser, compressor and various accessories are installed on an integral frame, which is compact in structure and convenient in operation and maintenance.   3.Adopted high duct condenser with external rotor fan , which has low noise and high efficiency.   4.The product series is complete, It has high,medium, low temperature and quick frozen working conditions design. It can meet the needs of refrigeration equipment at various temperatures.   5.It can meet the requirements of R22, R404A,R507A, R448A, R449A and other refrigerants. Medium Bitzer 4NES-20Y Condensing Unit Catalogue: Power Supply  380V 50Hz 3phase Apply Temp. -5 to -5 degree Compressor Model 4NES-20Y Compressor Max.I(A) 33.2 Fan Voltage (V) 380V 50Hz 3phase Fan Current (A) 2.1 Fan Power (W) 548x4 Suction Line (mm) 35 Liquid Line （mm） 16 Size length (mm) 1550 Size Width (mm) 1150 Size Height (mm) 1630

Condenser Freezer Low Temperature Coldroom Condensing Unit Product description:   1.HCU series open-type air-cool condensing units have the following characteristics.Adopted semi-hermetic piston compressors with BITZER or FRASCOLD, It has good quality and high reliability.   2.The air-cooled condenser, compressor and various accessories are installed on an integral frame, which is compact in structure and convenient in operation and maintenance.   3.Adopted high duct condenser with external rotor fan , which has low noise and high efficiency.   4.The product series is complete, It has high,medium, low temperature and quick frozen working conditions design. It can meet the needs of refrigeration equipment at various temperatures.   5.It can meet the requirements of R22, R404A,R507A, R448A, R449A and other refrigerants. Medium Bitzer 4FE-35Y Condensing Unit Catalogue: Power Supply  380V 50Hz 3phase Apply Temp. -5 to -5 degree Compressor Model 4FE-35Y Compressor Max.I(A) 62.1 Fan Voltage (V) 380V 50Hz 3phase Fan Current (A) 7 Fan Power (W) 937x4 Suction Line (mm) 54 Liquid Line （mm） 22 Size length (mm) 1800 Size Width (mm) 1300 Size Height (mm) 1880

Product Description: BUW-A series box-type condensing units have the following characteristics； 1. Products adopt vertical box-type structure, compact structure design, excellent appearance; 2. The cover of the case adopts hinge structure, which is easy to maintain and operate; 3. Compressor uses Emerson ZB series scroll compressor and ZSI series scroll compressor with DTC spray to meet the application of medium temperature and low temperature respectively; 4. Adopt L-type condenser, it has large windward side, small wind resistance and good heat transfer effect; 5. Adopt 6-pole external rotor motor with low speed and low noise; 6. It can meet the requirements of R22, R404A, R507A, R448A, R449A and other refrigerants.   Technical data : Remarks:1P/220V/50Hz power supply is available for 2HP and 3HP models. Please specify when ordering. Remarks:1P/220V/50Hz power supply is available for 2HP and 3HP models. Please specify when ordering. Remarks:1P/220V/50Hz power supply is available for 2HP and 3HP models. Please specify when ordering. Remarks:1P/220V/50Hz power supply is available for 2HP and 3HP models. Please specify when ordering. Cooling capacity Data of Unit : Note: The refrigeration capacity is based on superheat of 10K and supercool of 0K. Note: The refrigeration capacity is based on superheat of 10K and supercool of 0K.   Standard Configuration and Optional configuration : Remarks：● Standard Configuration；▲ Optional,need costs extra；   Remarks：● Standard Configuration；▲ Optional,need costs extra；

Product Description： BUW-B series box-type condensing units have the following characteristics 1. Products adopt horizontal box-type structure, high wind circle design, excellent appearance; 2. The cover of the case adopts hinge structure, which is easy to maintain and operate; 3. Compressor uses Emerson ZB series and ZSI series with DTC spray & ZFI series with EVI scroll compressor to meet the application of medium temperature and low temperature respectively; 4. Adopt U-type condenser, it has large windward side, small wind resistance and good heat transfer effect; 5. It can meet the requirements of R22, R404A, R507A, R448A, R449A and other refrigerants.   Performance data sheet : Remarks：1,Design condition :ambient Temp. 32℃.  2, 1P/220V/50Hz power supply is available for 2HP and 3HP models. Please specify when ordering.   Remarks：1,Design condition :ambient Temp. 32℃.  2, 1P/220V/50Hz power supply is available for 2HP and 3HP models. Please specify when ordering. Remarks：1,Design condition :ambient Temp. 32℃.  2, 1P/220V/50Hz power supply is available for 2HP and 3HP models. Please specify when ordering. Remarks：1,Design condition :ambient Temp. 32℃.  2, 1P/220V/50Hz power supply is available for 2HP and 3HP models. Please specify when ordering. Low Temp. Unit: Design condition :ambient Temp. 32°C Design condition :ambient Temp. 32°C Design condition :ambient Temp. 32°C Cooling capacity Data: Cooling capacityis based on superheat of 10K and supercool of 0K. Cooling capacityis based on superheat of 10K and supercool of 0K. Remark: 1.Cooling capacity is based on superheat of 10K; 2.For low-temperature units with EVl, a subcooling ofaboout 35K needs to be considered when selecting an expansion valve. Standard Configuration and Optional Configuration:   ● Standard Configuration；▲ Optional,need costs extra ● Standard Configuration；▲ Optional,need costs extra

Product description: BUB series horizontal box-type condensing units have the following characteristics 1. Products adopt horizontal box-type structure, high wind circle design, Excellent ventilation effect and appearance; 2. The cover of the case adopts hinge structure, which is easy to maintain and operate; 3. Adopted semi-hermetic piston compressors with BITZER or FRASCOLD to meet the application of medium temperature and low temperature respectively; 4. Adopted U-type condenser, it has large windward side, small wind resistance and good heat transfer effect; 5. It can meet the requirements of R22, R404A, R507A, R448A, R449A and other refrigerants.
