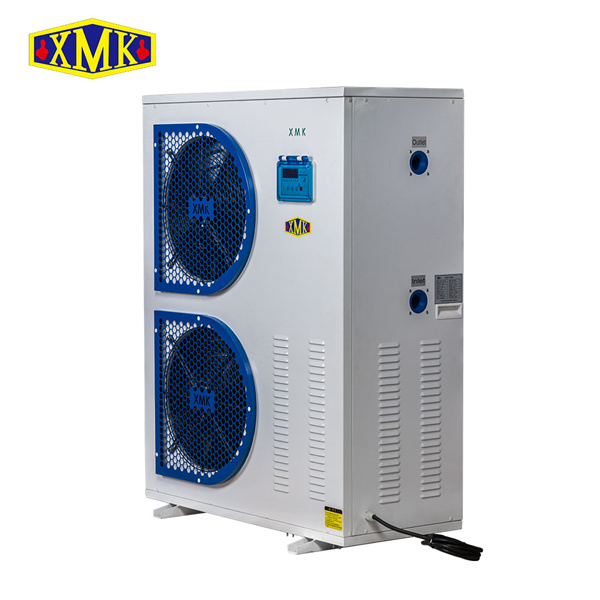

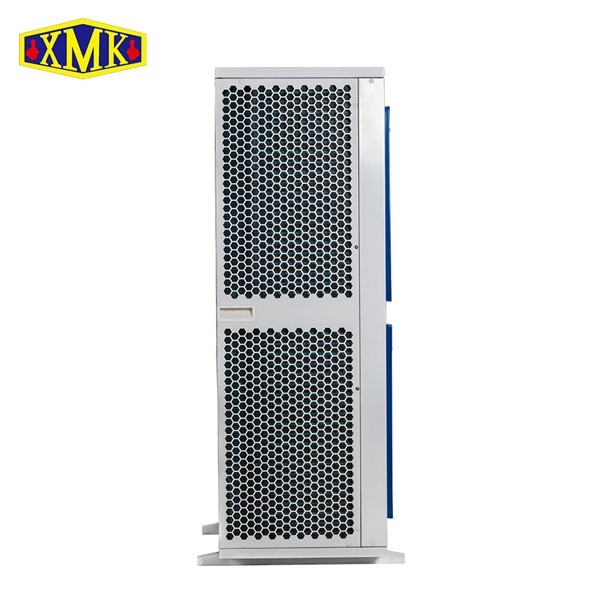

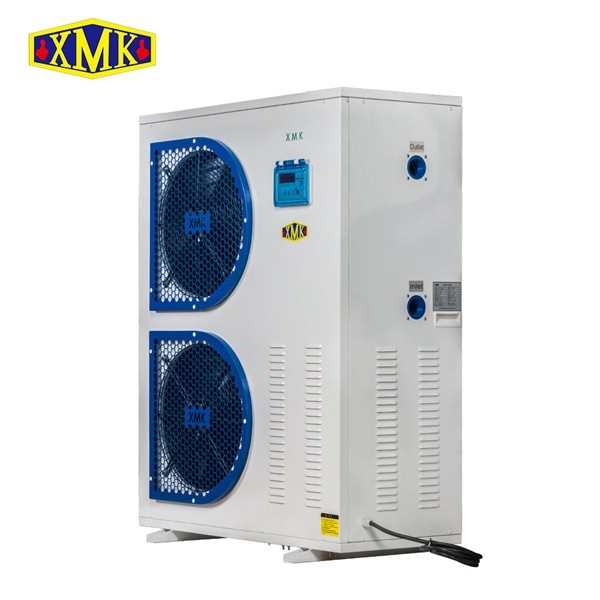

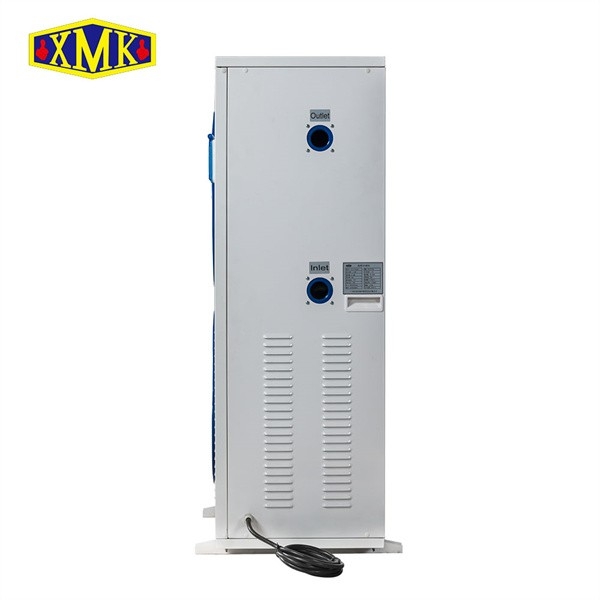

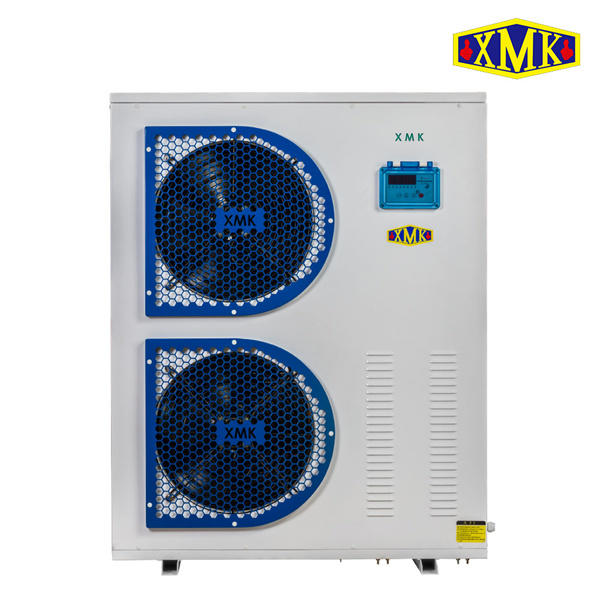

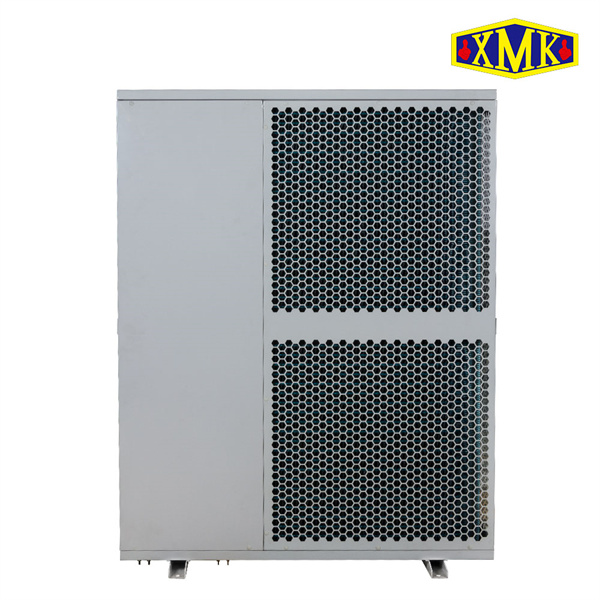

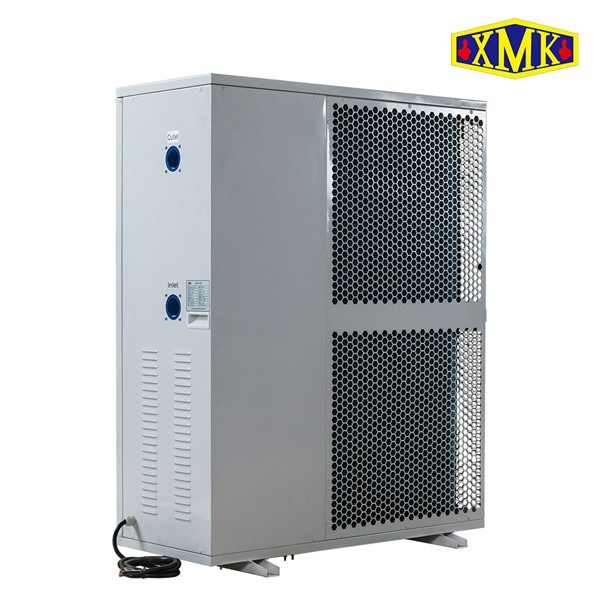

HX300T Fish Tank Water Chiller

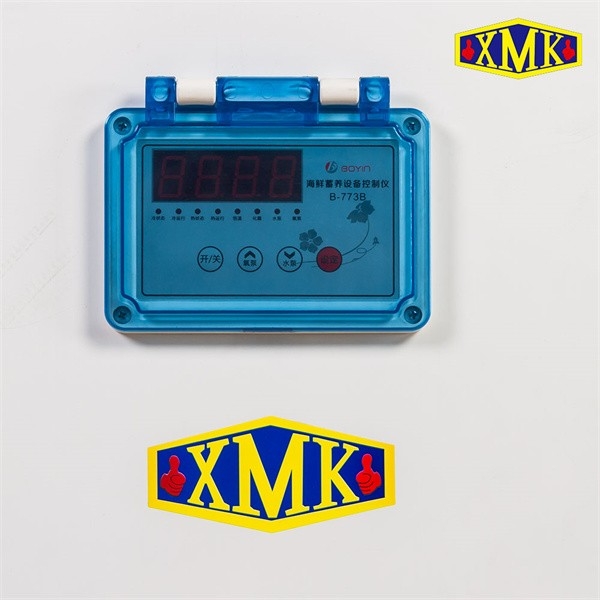

2.3m³Volume Water Chiller Seafood Product description:  The HX series of seasfood chiller developed by our factory, which designed into an overall com-pact structure with a beautiful and exquisite structure. It's including the condenser, titanium gunevaporator, various valves and control systems. Which can be directly used in fields such asseafood farming.1.The product can be wall-mounted or vertical,and the unit is installed on the ground and theside of the wall.of the storehouse body.2.The product can adjust the temperature of coldand warm water, and the water temperaturecanbe adjusted between 5 and 40 degrees.3.The product is fully automated and intelligentlycontrolled, with control functions such as watertemperature setting and control, constanttemperature setting and system operation protection.HX Series Seafood Chiller data: Power Supply  220V 50Hz 1phaseApply Water Temp. 5 to 26 ℃Model HX150SApply Water Volume(m³） 0.75-2.3 Input Power(KW) 1.3 Nominal Capacity(KW)3.9 Size length (mm) 650 Size Width (mm) 490 Size Height (mm) 600

The HX series ofseafood chiller developed by our factory, which designed into an overall compact structurewith a beautiful and exq uisite structure. it's including the condenser, titanium gun evaporator, various valvesand control systems. Which can be directly used in fields such as seafood farming.
